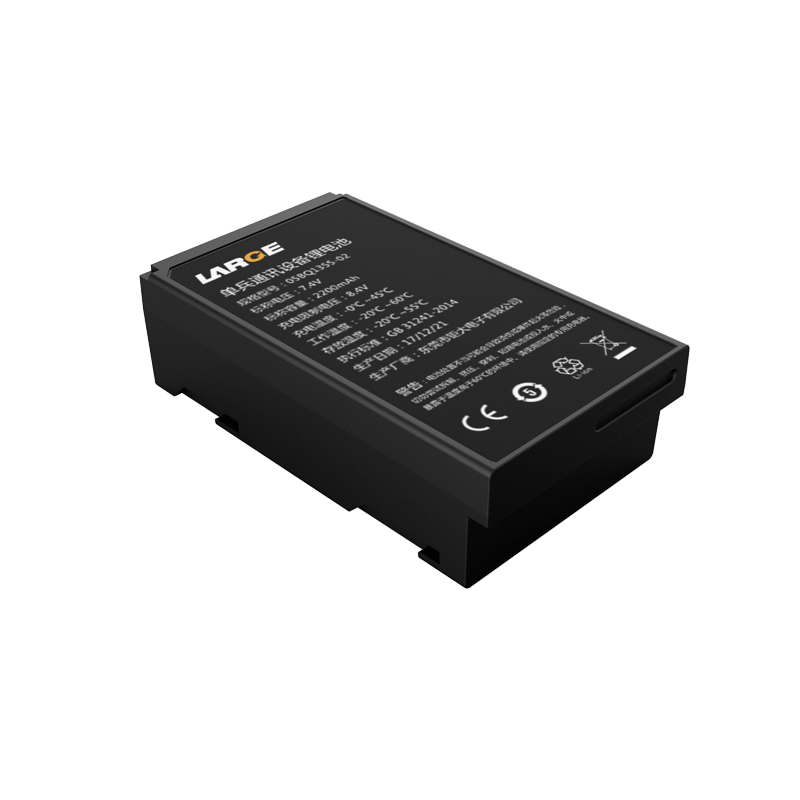

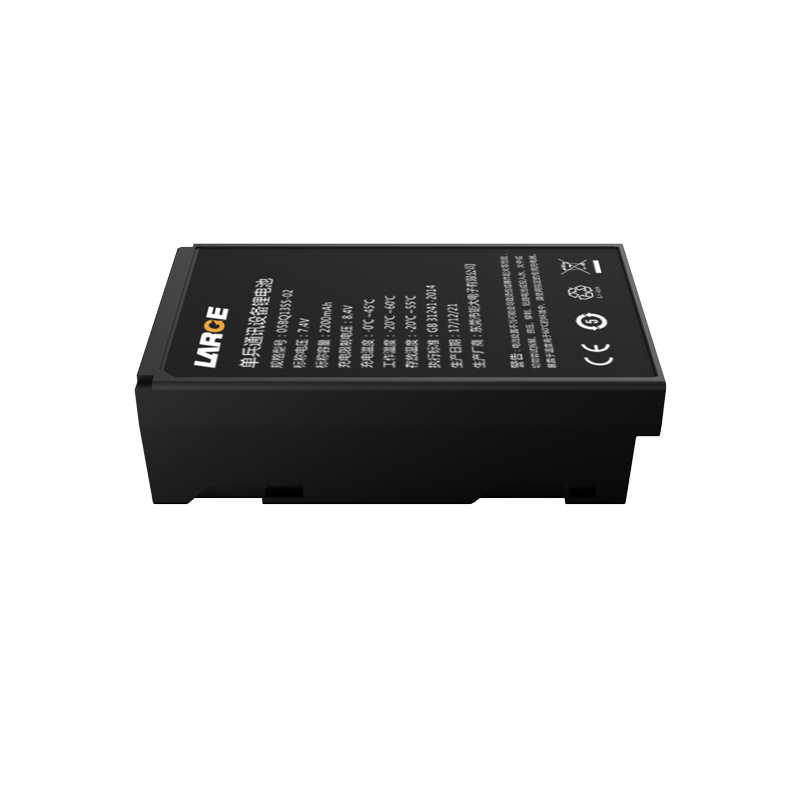

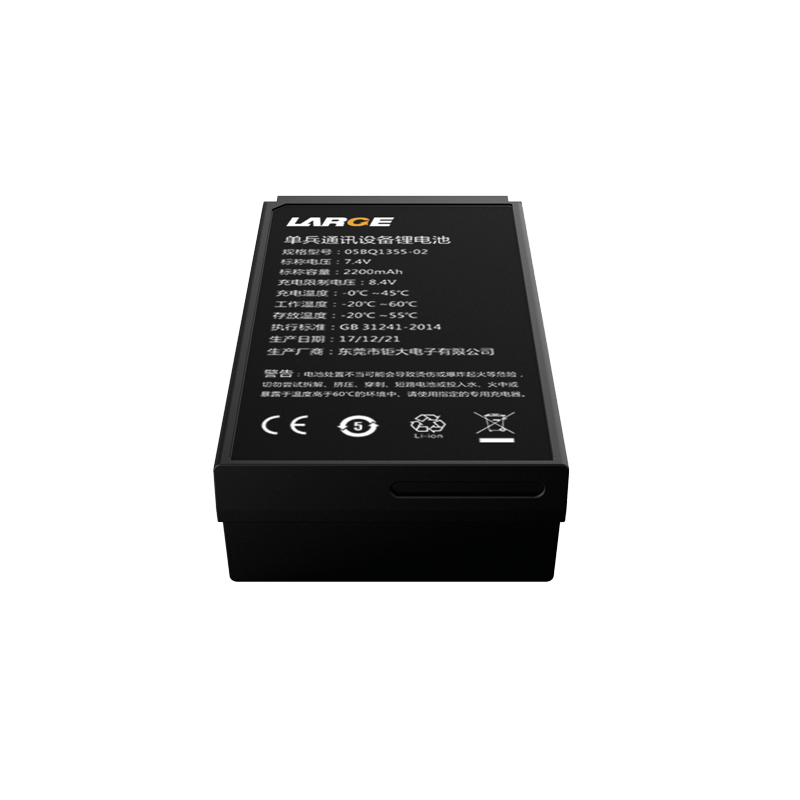

Custom Lithium ion Battery Pack
Product number: 05BQ1355-02
Cell model：18650/3.7V/2200mAh
Battery specification: 18650-2S1P/7.4V/2200mAh
Nominal voltage：7.4V
Nominal capacity：2200mAh
Charging voltage: 8.4V
Charging current: ≤2.2A
Discharging current: 0.44A
Instant discharging current: 2.2A
End-off voltage: 6.0V
Internal resistance: ≤250mΩ
Battery weight: 110g
Product dimension: 22*42*73mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60℃
Storage temperature: -20～35 ℃
Battery case: engineering plastic ABS+PC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application field: interphone, portable communication equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
