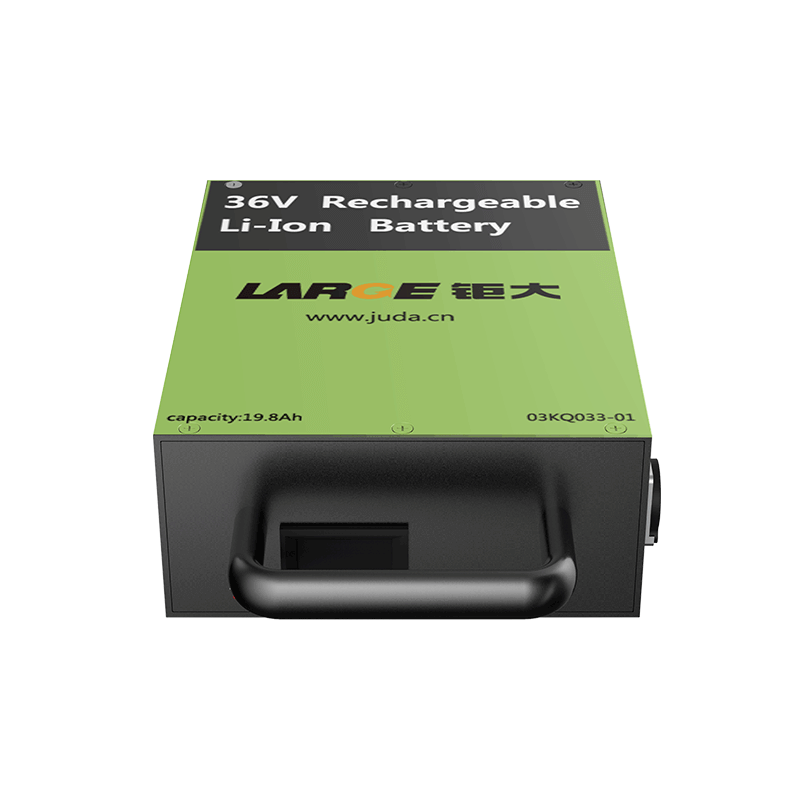

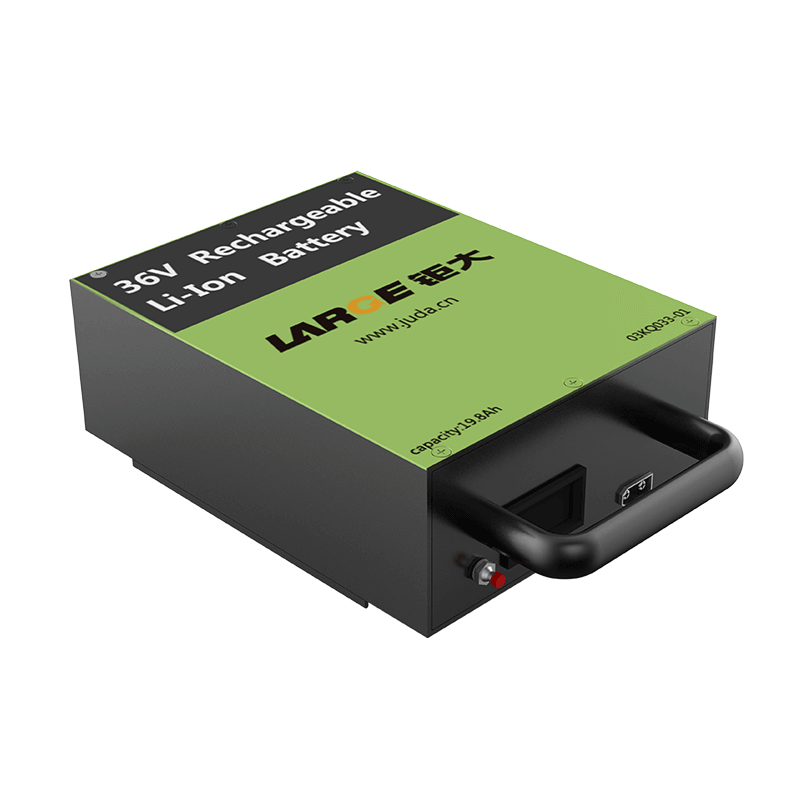

Product number: 03KQ033-01
Cell model:18650/3.7V/2200mAh
Battery specification: 18650-10S9P/36V/19.8Ah
Nominal voltage:36V
Nominal capacity:19.8Ah
Charging voltage: 42V
Charging current: ≤10A
Discharging current: 10A
Instant discharging current: 20A
End-off voltage: 25V
Internal resistance: ≤200mΩ
Battery weight: 5Kg
Product dimension: 232*180*80mm(Max)
Charging temperature:0~45℃
Discharging temperature: -20~60℃
Storage temperature: -20~35 ℃
Battery case: aluminum alloy housing
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.
Application field: tightening device of railway, electric wrench
