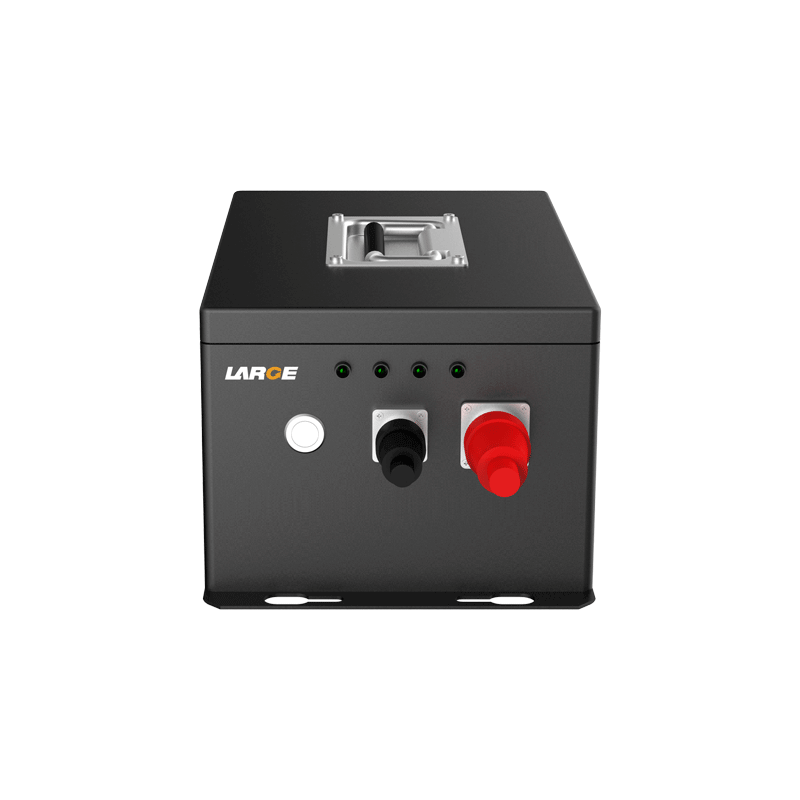

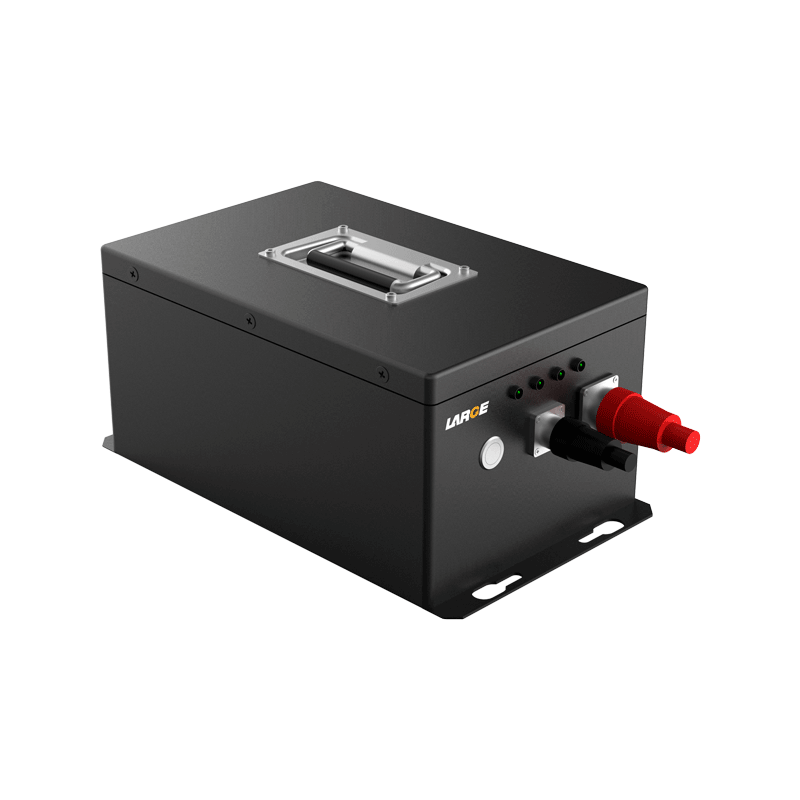

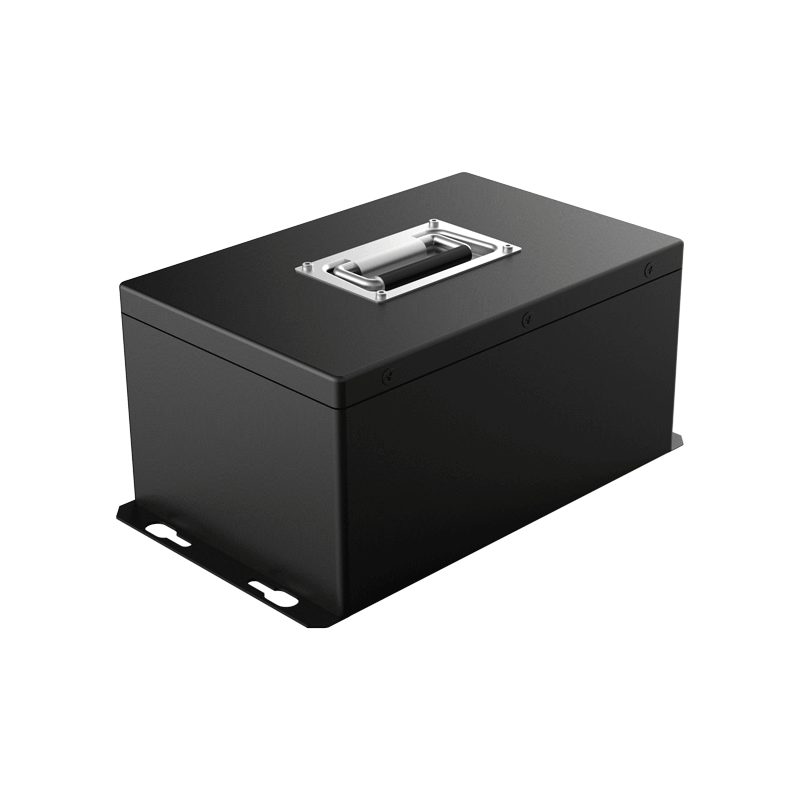

18650 36V 20Ah Lithium Ion Battery Panasonic Battery for Patrol Robot

Customization | Free Battery Solution

Product Detail

Product number: 03EQ118-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 13S6P/36V/20Ah18650

Nominal voltage:36V

Nominal capacity:20.1Ah

Charging voltage: 42V

Charging current: 4A0.2C

Discharging current: 10A

Instant discharging current: 30A

End-off voltage: 28V

Internal resistance: ≤150mΩ

Battery weight: 10kg

Product dimension: 320*210*165mm(Max) do not include the size of mounting holes

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~60 ℃

Temperature protection: 65℃±5℃

Battery case: cold-rolled sheet + housing sprayed powder

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 485 communication, etc.

Application field: industrial equipment, RGV, patrol robot, etc.


Product features

1. Large current: connect the batteries by copper nickel compositing with nickel strap so as to meet the requirements of charging and discharging with large current, which is safe and reliable.

2. Communication interface: adopt special connector, compatible RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

3. Data communication management: adopt BMS software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

6. Charging: the plug has special connector, which is safe and reliable.
