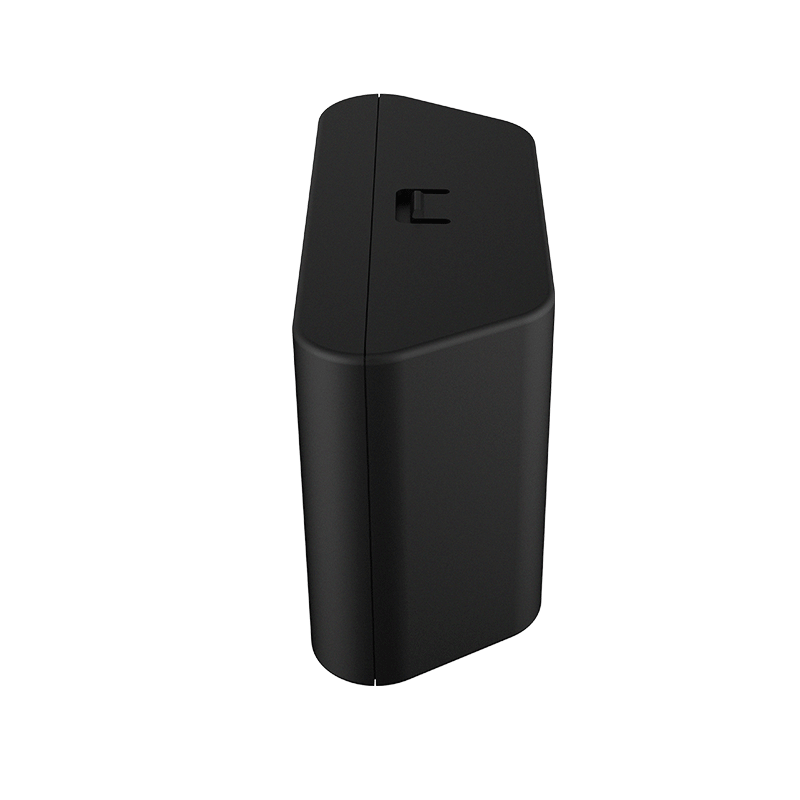

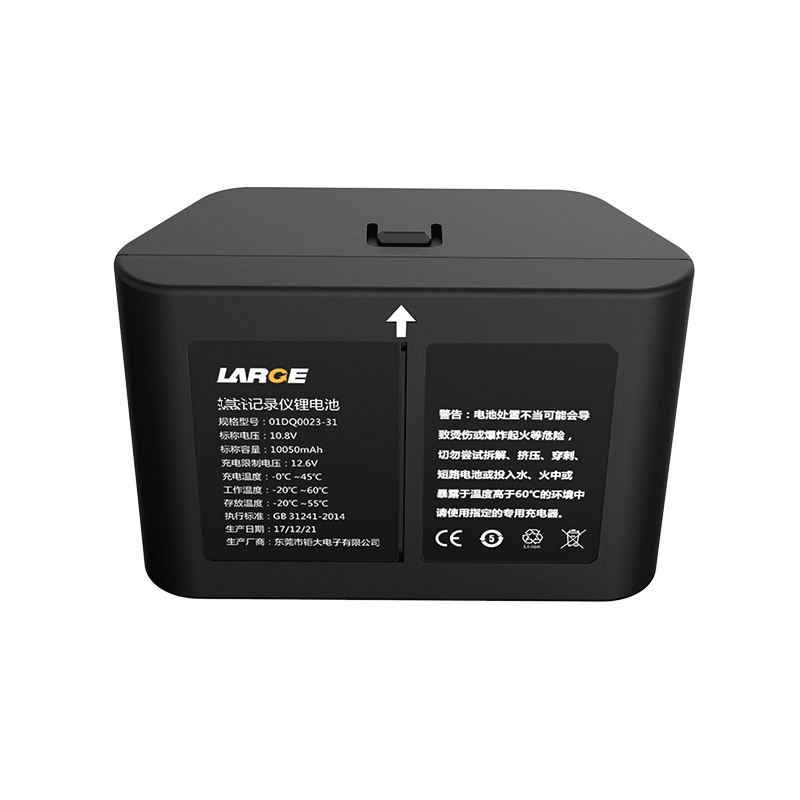

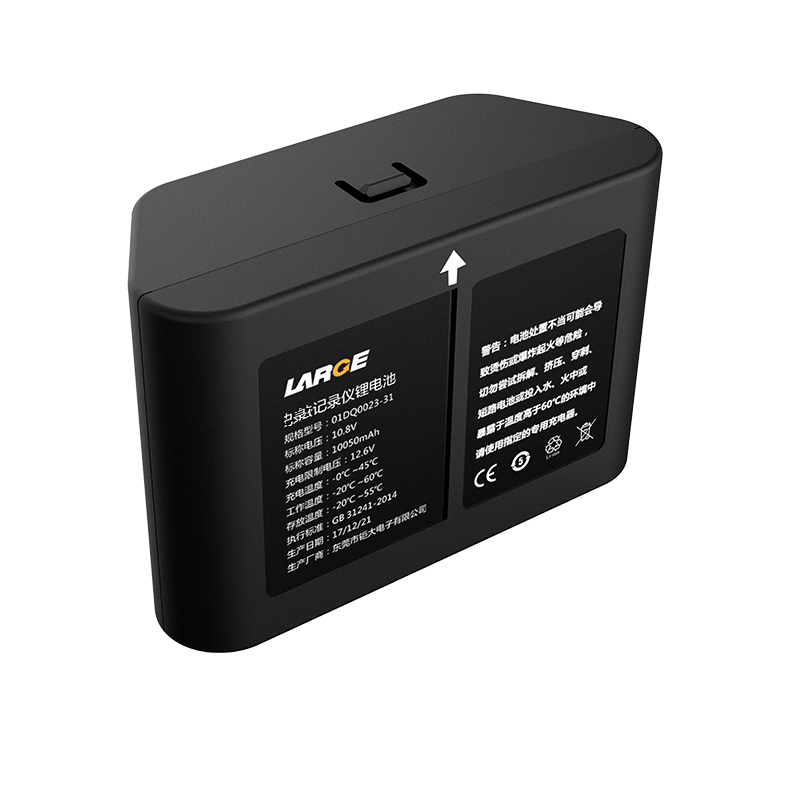

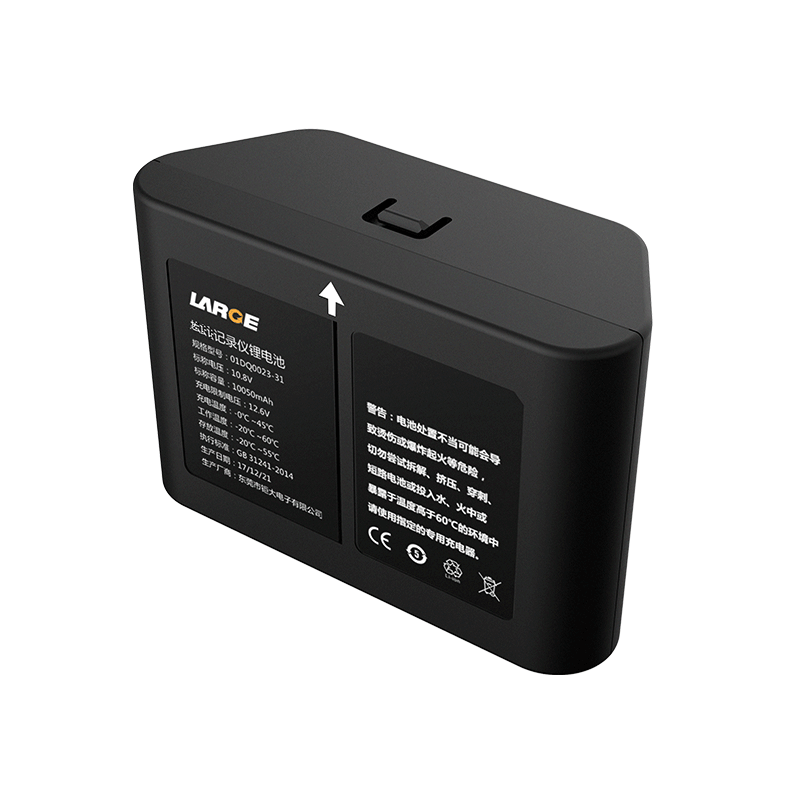

Custom Lithium ion Battery Pack
Product number: 01DQ0023-31
Cell model: 18650/3.6V/3350mAh
Product model: 18650-3S3P-9.6 AH-10.8V
Execution standard: GB31241-2014
Nominal voltage: 10.8V
Nominal capacity: 10050mAh
Charging voltage: 12.6V
Charging current: ≤5A
Discharge current: 5A
Instantaneous discharge current: 6A
Discharge cut-off voltage: 7.5V
Product dimension: 44*74*105(mm)
Internal resistance: 200mΩ
Product weight: 500g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Battery case: ABS+PC
Battery management: SMBUS communication, overcharge/overdischarge/overcurrent/short circuit protection
Design standard: IEC62133-2:217

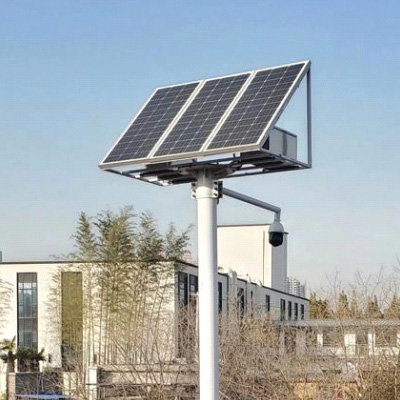

Application: smart city, outdoor monitoring equipment
