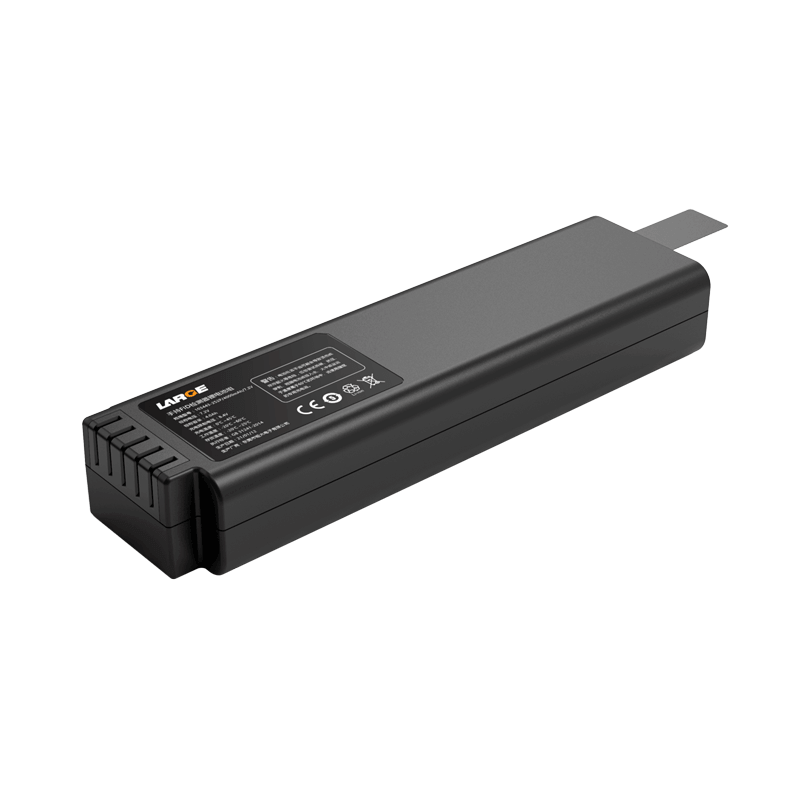

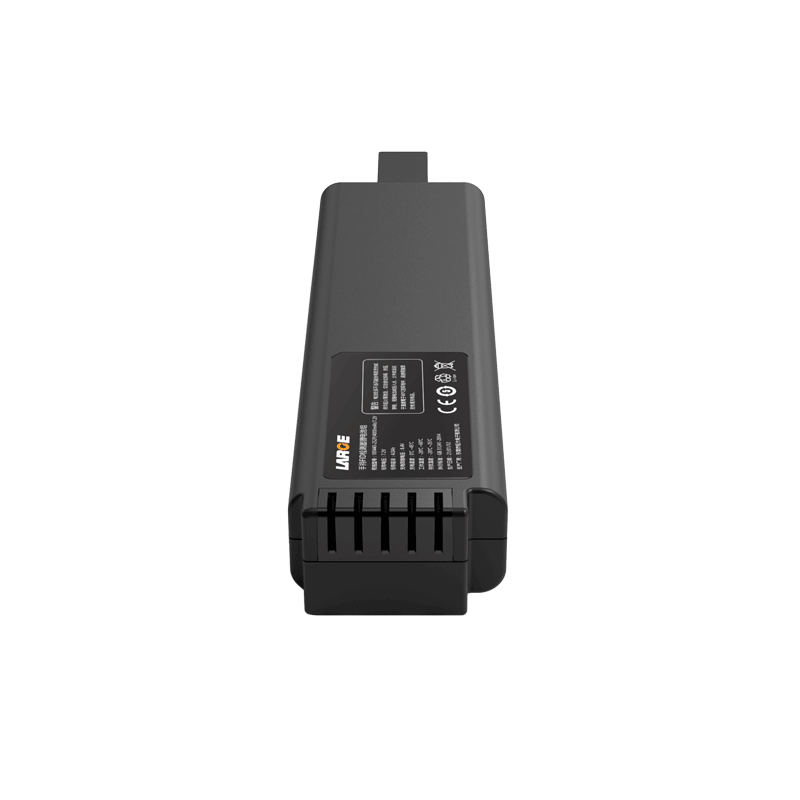

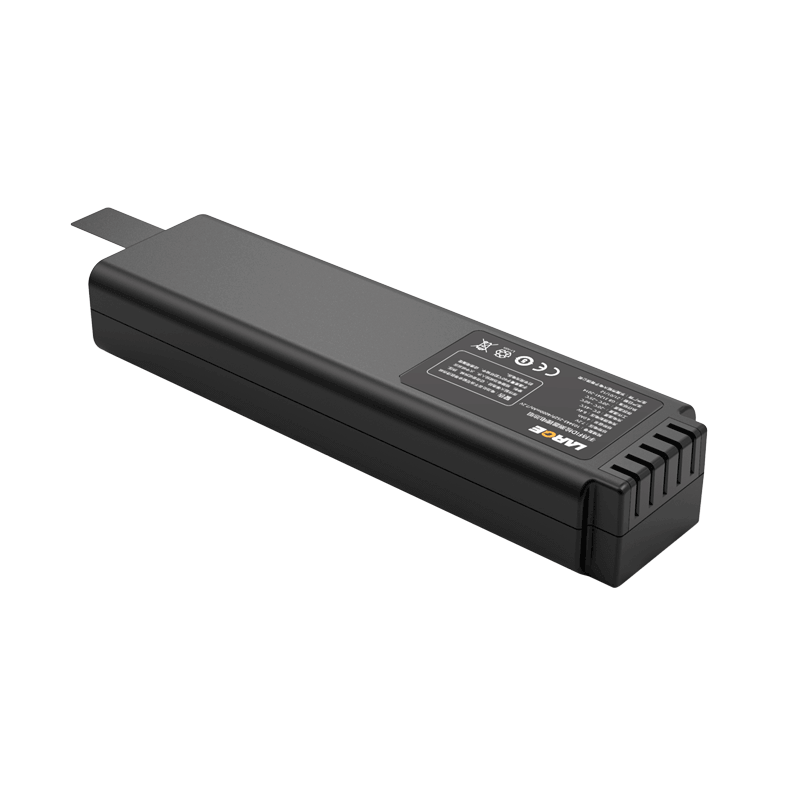

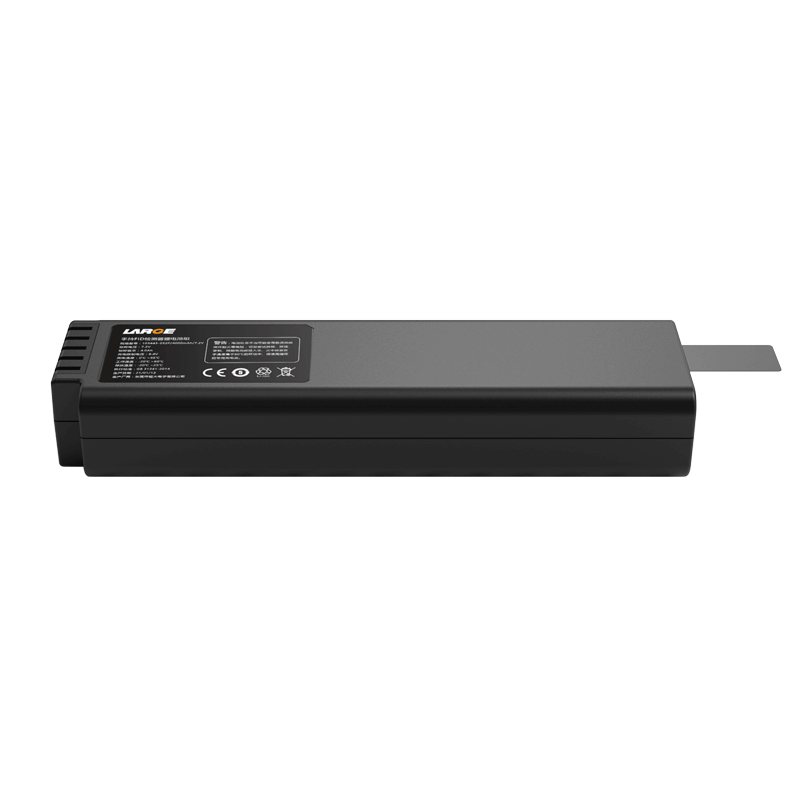

Custom Lithium ion Battery Pack
Product number: 34AQ074-01
Cell model: 103443/2200mAh/3.6V
Battery specification: 103443-2S2P/4000mAh/7.2V
Nominal voltage: 7.2V
Nominal capacity: 4.0Ah
Charging current: ≤2.0A
Discharge current: 2.0A
Instant discharge current: 4-6A
Discharge cut-off voltage: 6.0V
Internal resistance: ≤180mΩ
Battery weight: 150g
Product dimension: 24.4*42.0*150.9mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 25℃
Battery case: ABS+PC
Battery protection: power calculation, short circuit/overcharge/over discharge/over current protection, etc.

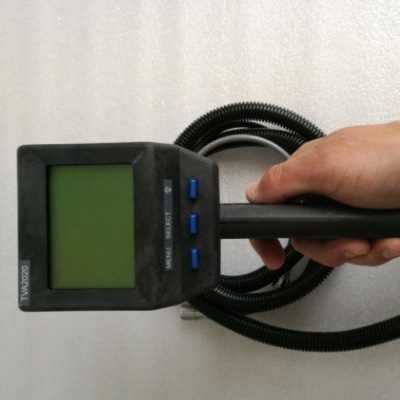

Application: Handheld FID detector
