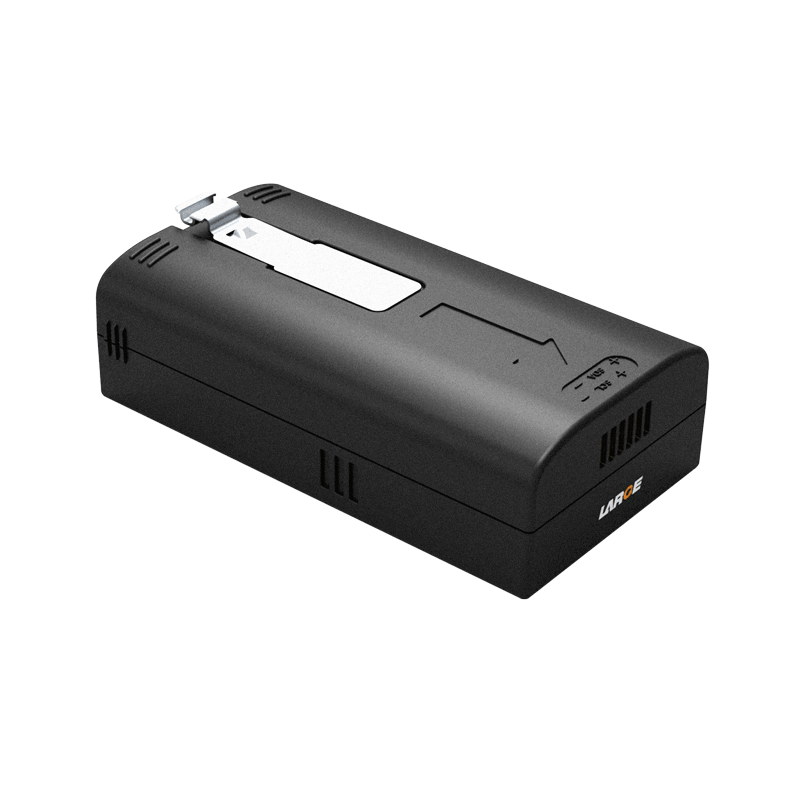

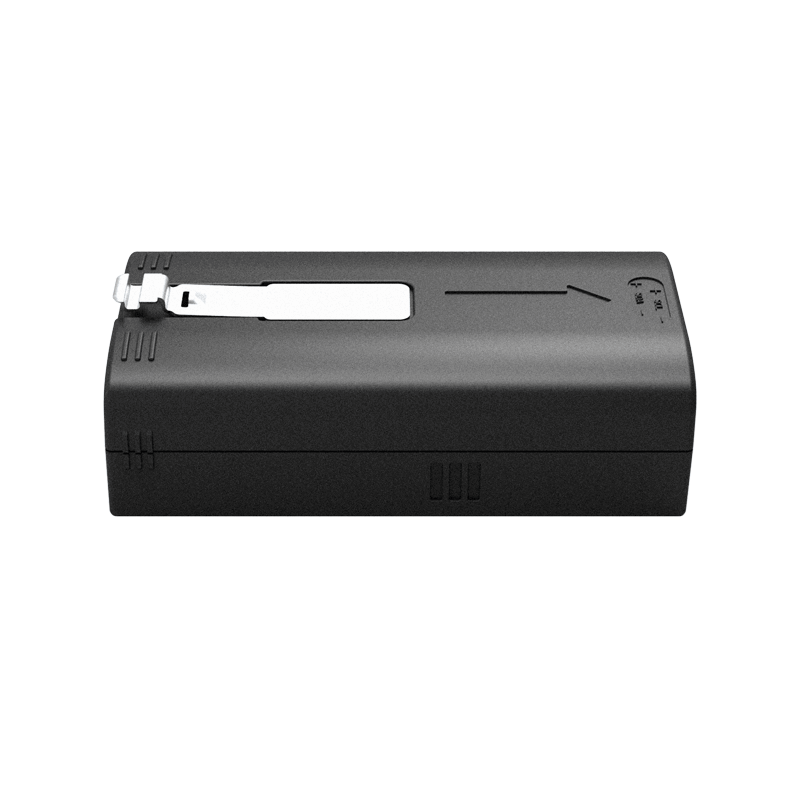

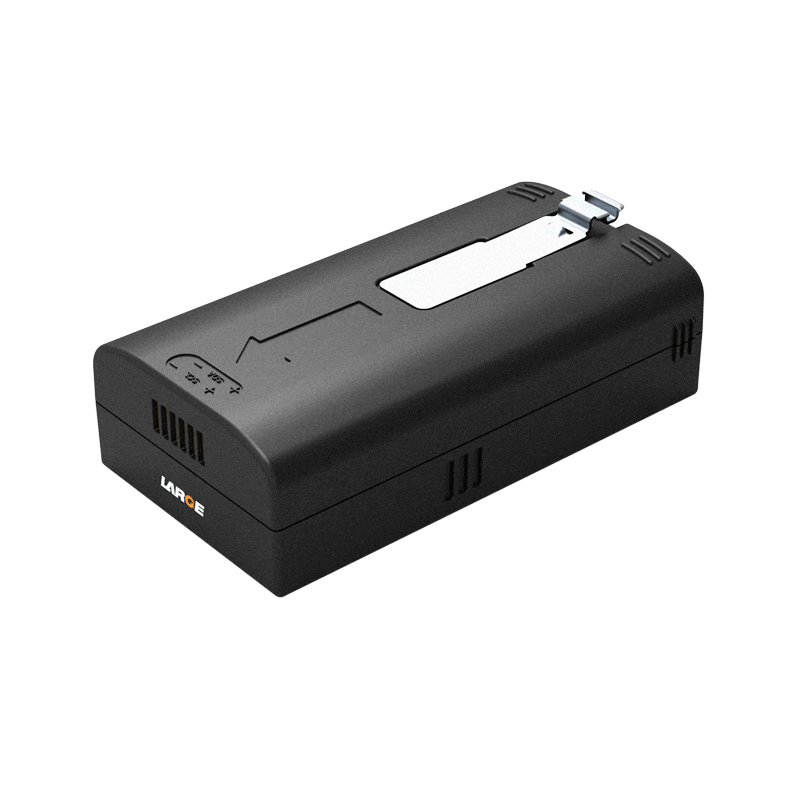

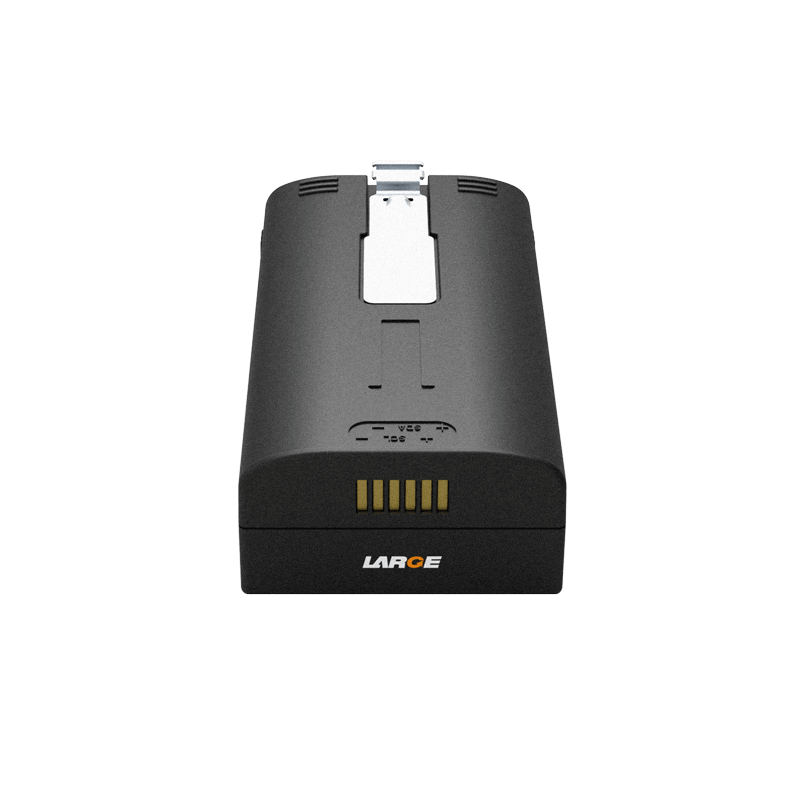

Smart Lithium ion Battery 18650 3.6V 6250mAh for Intelligent Door Lock

Customization | Free Battery Solution

Product Detail

Project number: 01DQ0023-43T

Executive standard:IEC62133-2017

Cell model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-1S2P/6250mAh/3.6V

Nominal voltage:3.6V

Nominal capacity:6250mAh

Charging voltage: from 5V to 4.2V during charging

Charging current: ≤3.35A

Discharging current: 3.35A

Instant discharging current: 7.5A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 130g

Product dimension: 22.2*42.0*77.9mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~23℃

Battery case: ABS+PC

Communication protocol:SMBUS

Product features: reliable performance, battery management

Battery protection: power calculation, short circuit/overcharge/over discharge/over current protection, USB charging, etc.

Product certification:CB/UN38.3

Design standard:IEC62133-2:2017

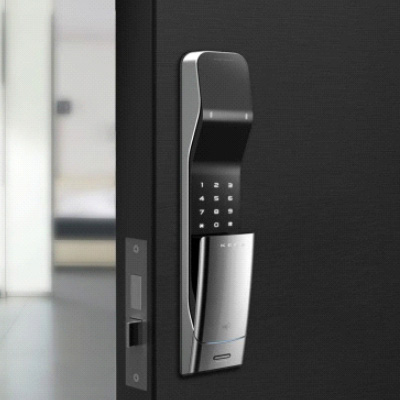

Application field: smart home、intelligent door lock
