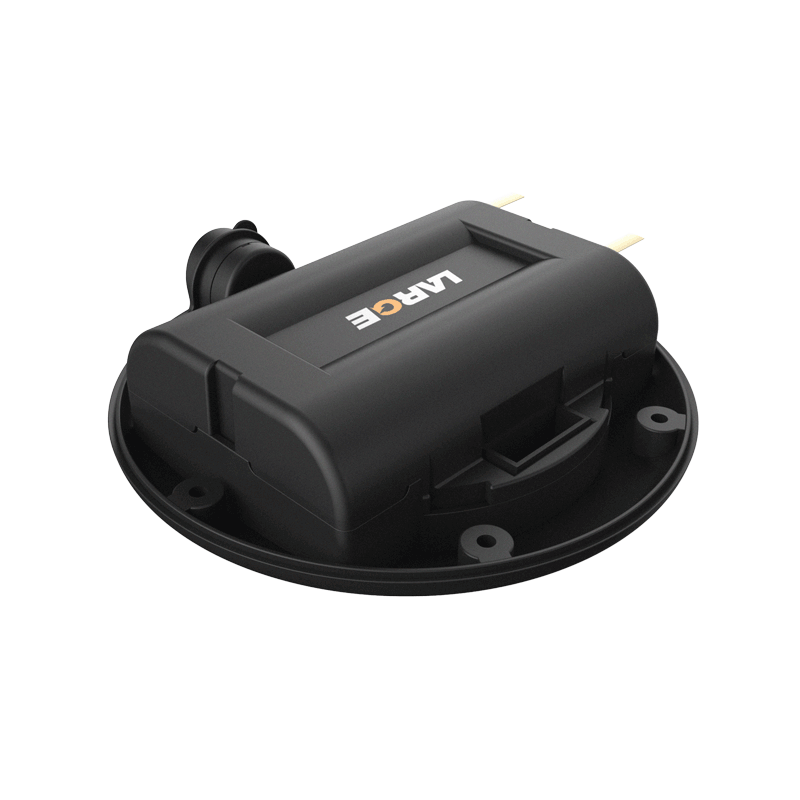

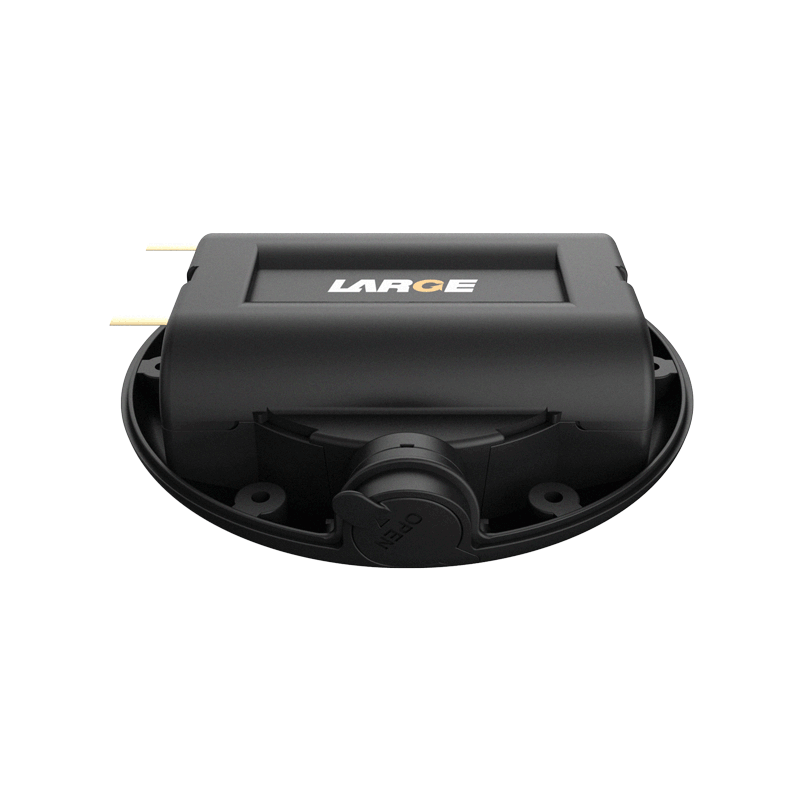

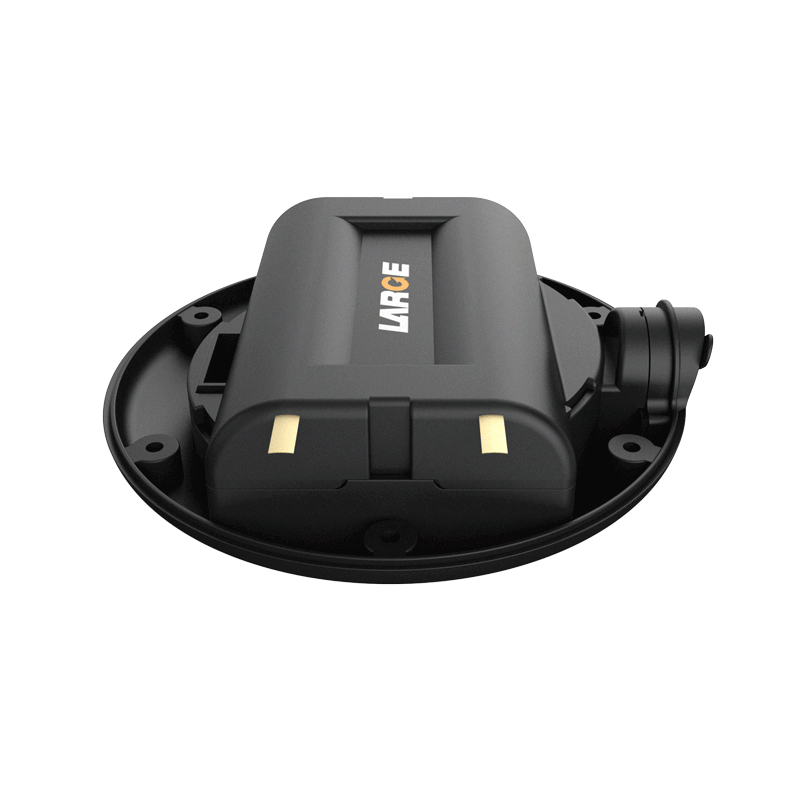

Custom Lithium ion Battery Pack
Product number: 01DQ0040-09
Executive standard: IEC62133-2017
Cell model: 18650/3.6V/3350mAh
Product model: 18650-1S2P-6000MAH-3.6V
Nominal voltage: 3.6V
Nominal capacity: 6700mAh
Charging voltage: 4.2V, 5V 2A (USB)
Charging current: ≤2A
Discharge current: 1A
Instantaneous discharge current: 2A
Discharge cut-off voltage: 3.0V
Internal resistance: 250mΩ
Product weight: 140g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Product dimension: 69.3×48.3×25.74mm
Battery case: ABS+PC
Battery management: I2C communication, overcharge/overdischarge/overcurrent/short circuit protection
Product certification: CB/UN38.3
Design standard: IEC62133-2:217
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
