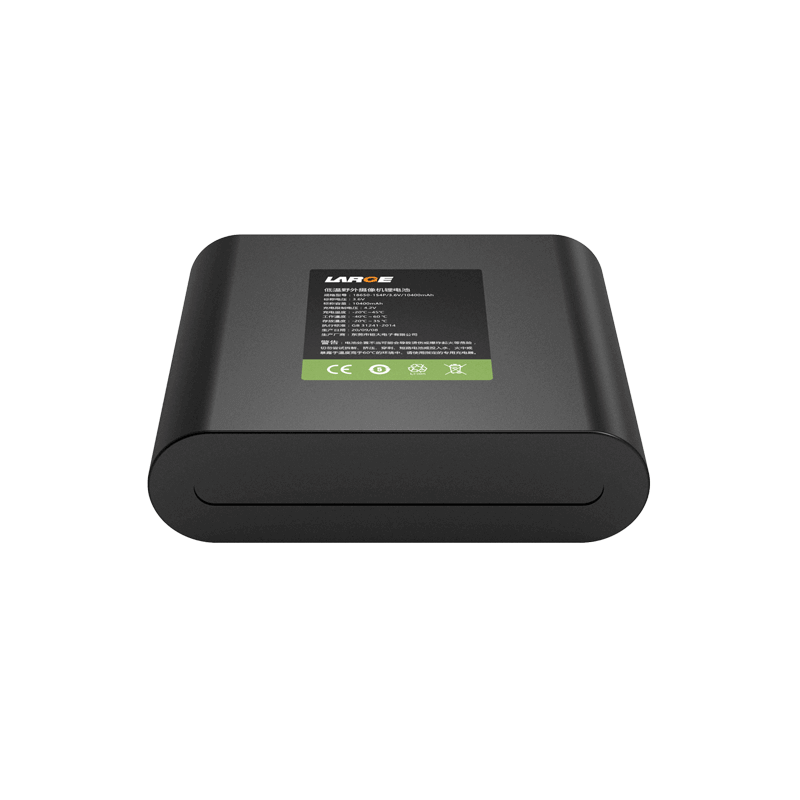

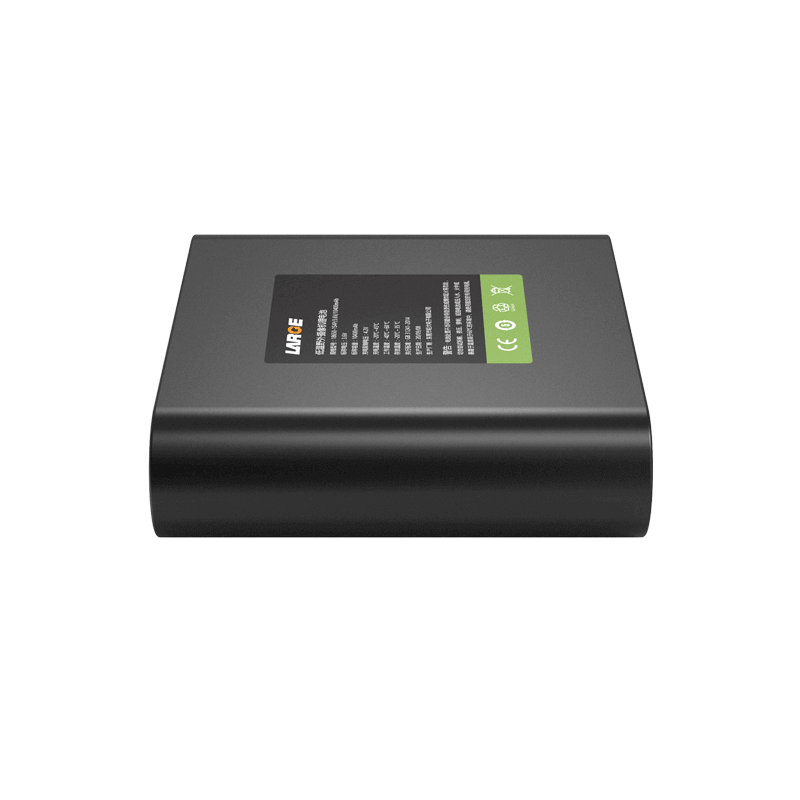

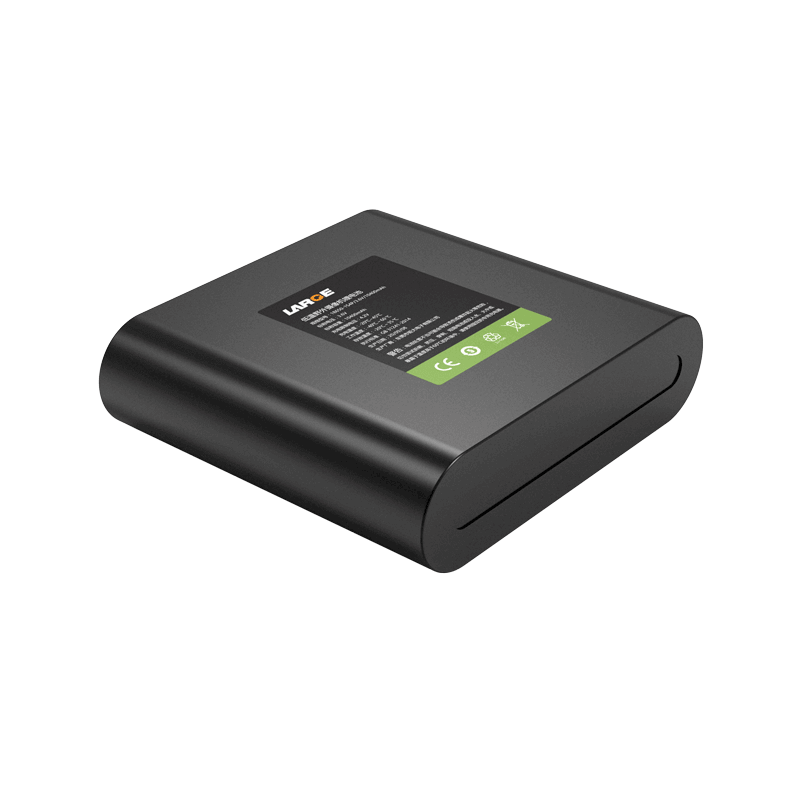

Custom Lithium ion Battery Pack
Product number: 01WQ0029-06TM4
Cell model: 18650/3.6V/10400mAh
Battery specification: 18650-1S4P/3.6V/10400mAh
Nominal voltage: 3.6V
Nominal capacity: 10400mAh
Charging voltage: 4.2V
Charging current: ≤5A
Discharge current: 3A
Instantaneous discharge current: 5A
Discharge cut-off voltage: 2.5V
Finished product internal resistance: ≤150mΩ
Battery weight: 0.21kg
Product dimension: 74.5×69.5×20.5mm (Max)
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

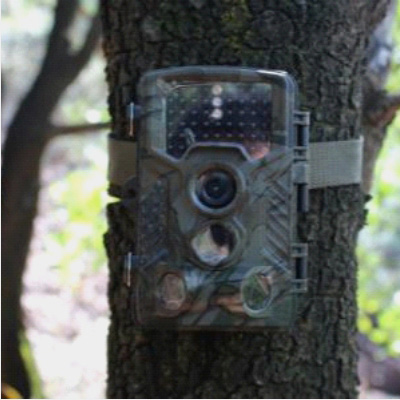

Application: camera equipment, hunter camera
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
