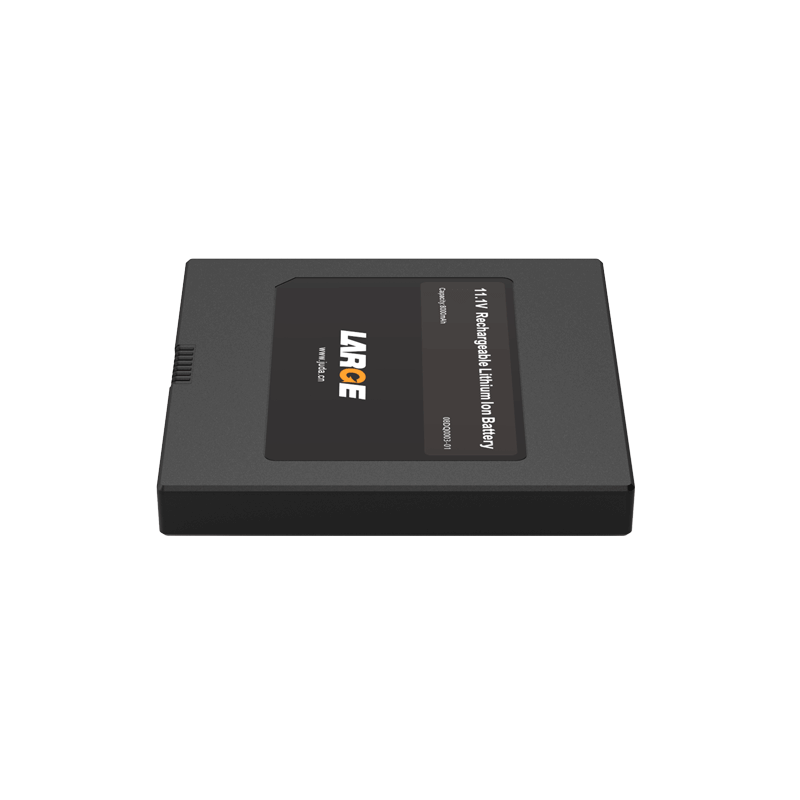

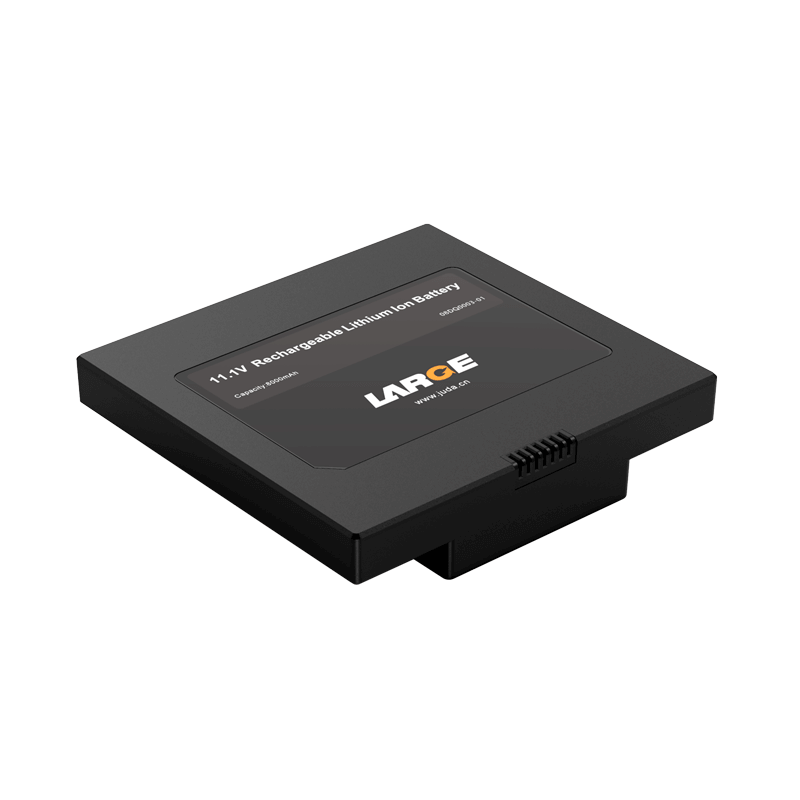

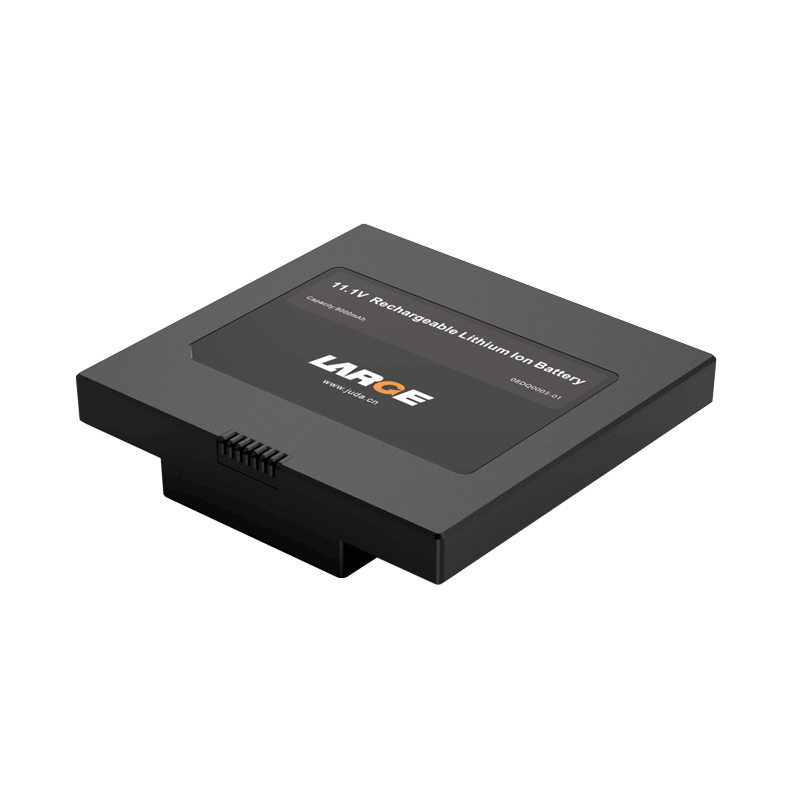

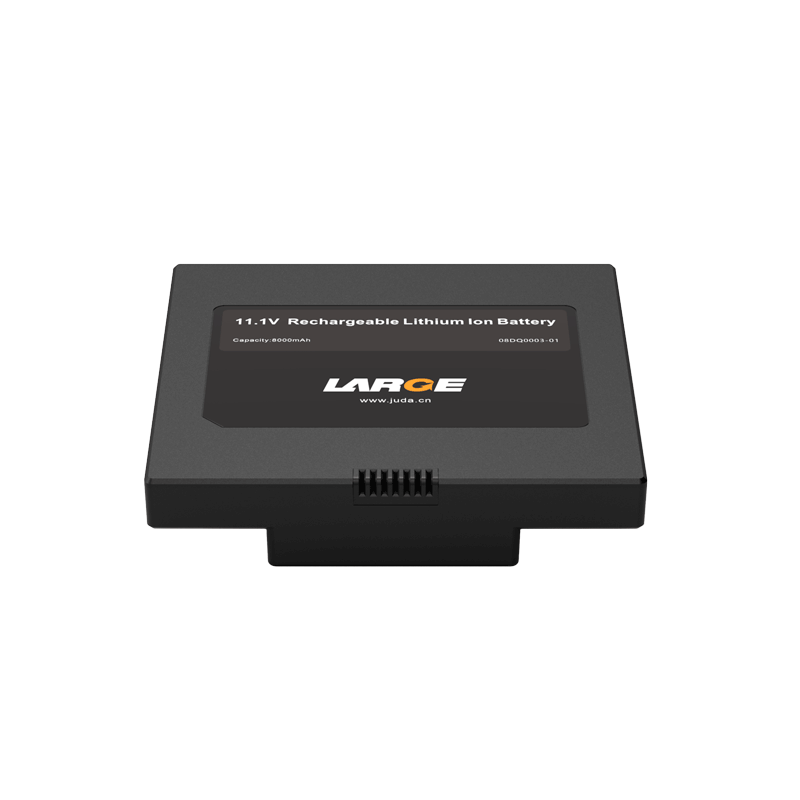

Custom Lithium ion Battery Pack
Product number: 08DQ0003-01
Execution standard: GB31241-2014
Cell model: 105596/8000mah /3.7V
Product model: 105596-3S1P-8000MAH-11.1V
Nominal voltage: 11.1V
Nominal capacity: 8000mAh
Charging voltage: 12.6V
Charging current: 1600mA
Discharge current: 1600mA
Discharge cut-off voltage: 9.0V
Internal resistance: 250mΩ
Battery weight: 450G
Charging temperature: 0-45℃
Discharge temperature: -20-60℃
Product dimension: 23×113×113mm
Battery package: ABS+PC
Battery management: voltameter, over charge, over discharge, over current, over voltage protection
Product features: reliable performance, battery management
Product certification: CE/CB(IEC62133)/UN38.3 ETC
Application: Internet of Things, golf track monitor
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
