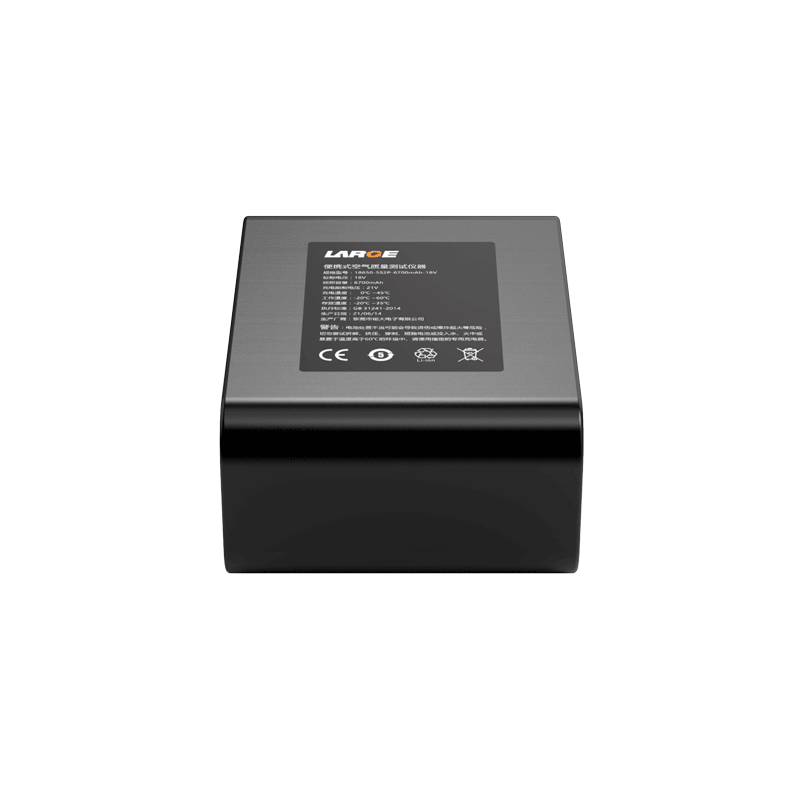

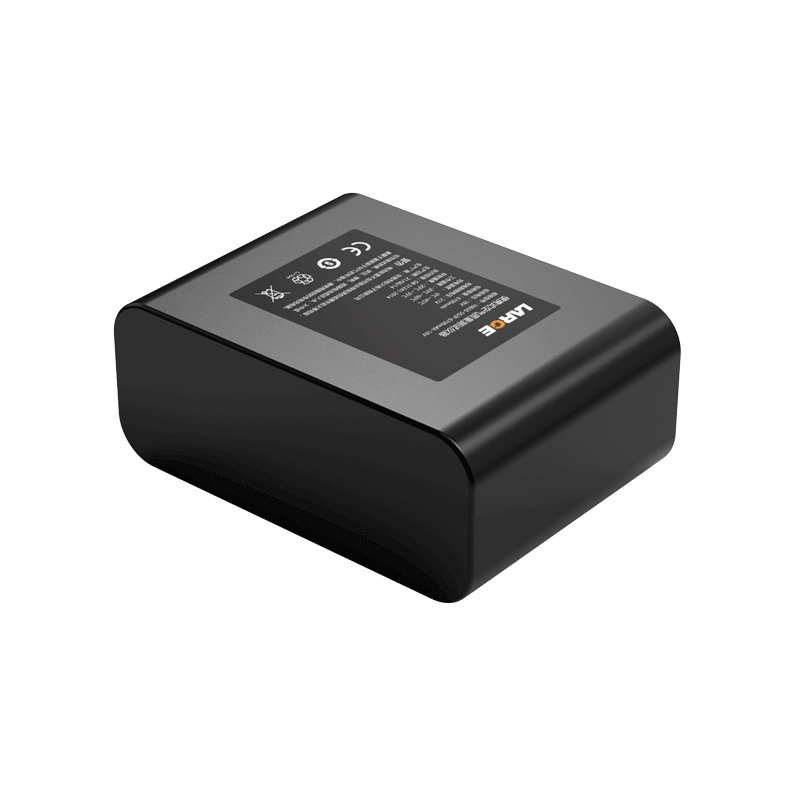

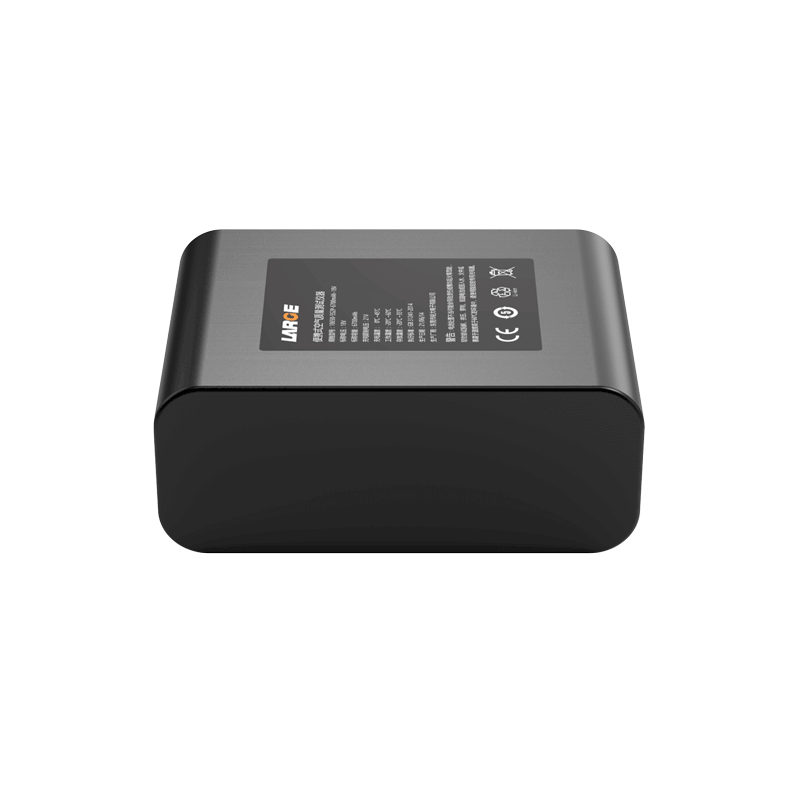

Custom Lithium ion Battery Pack
Product number: 01WQ0020-02
Cell model: 18650-3350MAH-3.6V
Battery specification: 18650-5S2P-6700MAH-18V
Product dimension: 94*71*38mm (Max)
Nominal voltage: 18V
Nominal capacity: 6700mAh
Charging voltage: 21V
Charging current: ≤3A
Discharge current: ≤ 6.6a
Discharge cut-off voltage: 13.5V
Internal resistance of finished product: ≤510mΩ
Battery weight: 400G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery package: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: Portable air quality tester, portable testing equipment
Product features
1.Protective blue PVC heat shrinkable film package is simple, reliable and easy to install.
2.Connector plug terminal: The JST plug is used to output data to increase the reliability of electrical conduction.
3.Static battery management: Adopts a dedicated battery protection chip, which features high stability, high precision monitoring and precise control, ESD protection and temperature protection. Eliminate security risks to the greatest extent
4.Buy a ticket for a voltmeter: A voltmeter chip with TI's I2C communication reads battery voltage, current, temperature and capacity in real time.
5.Sino - buy battery pack is safe, has good discharge performance and long cycle life.
6.Battery cycle life is high, in line with low carbon, energy saving, environmental protection values;
