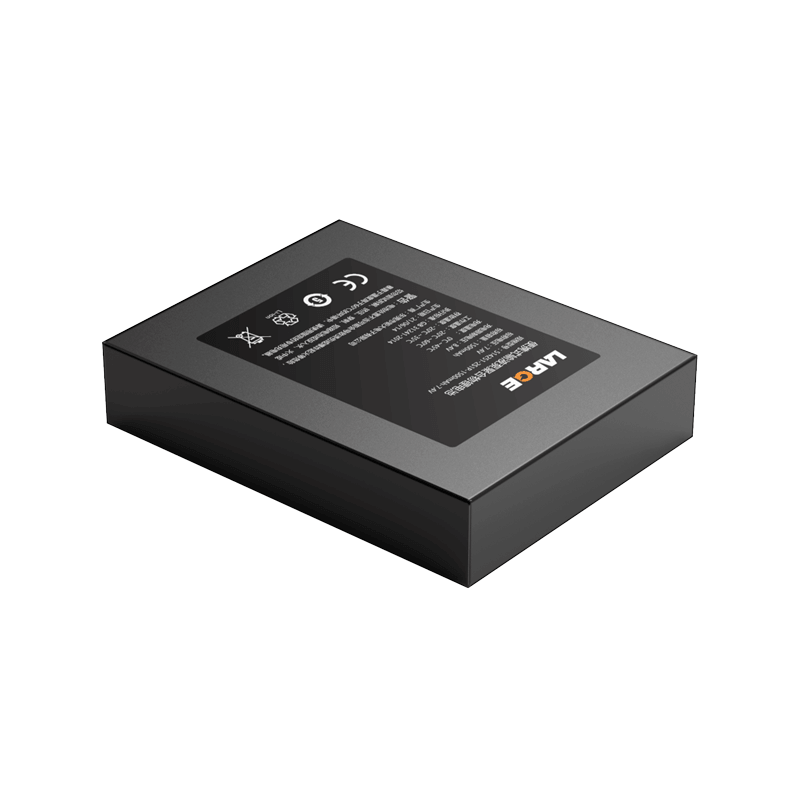

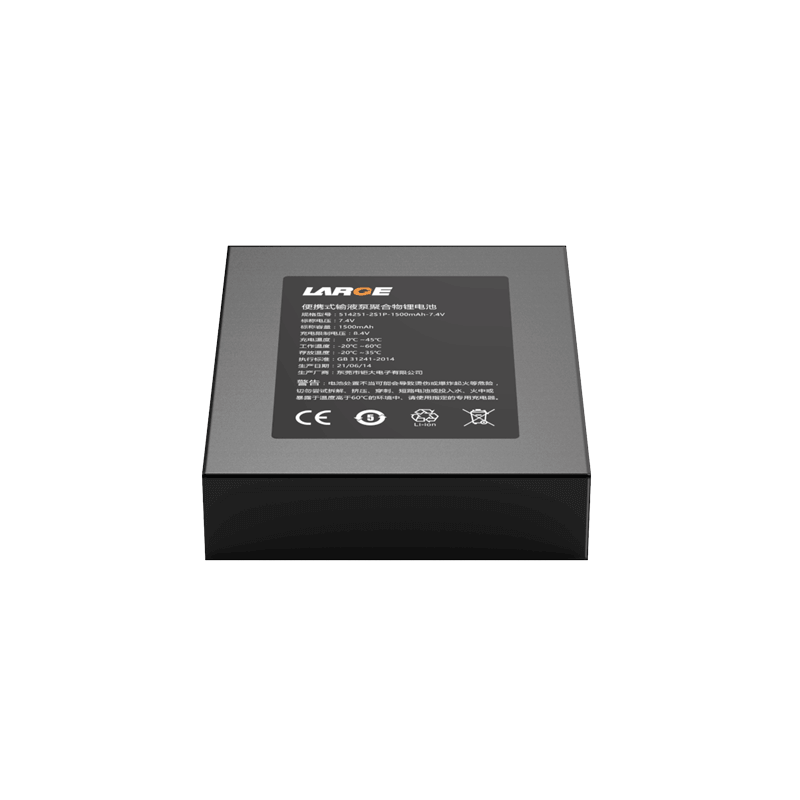

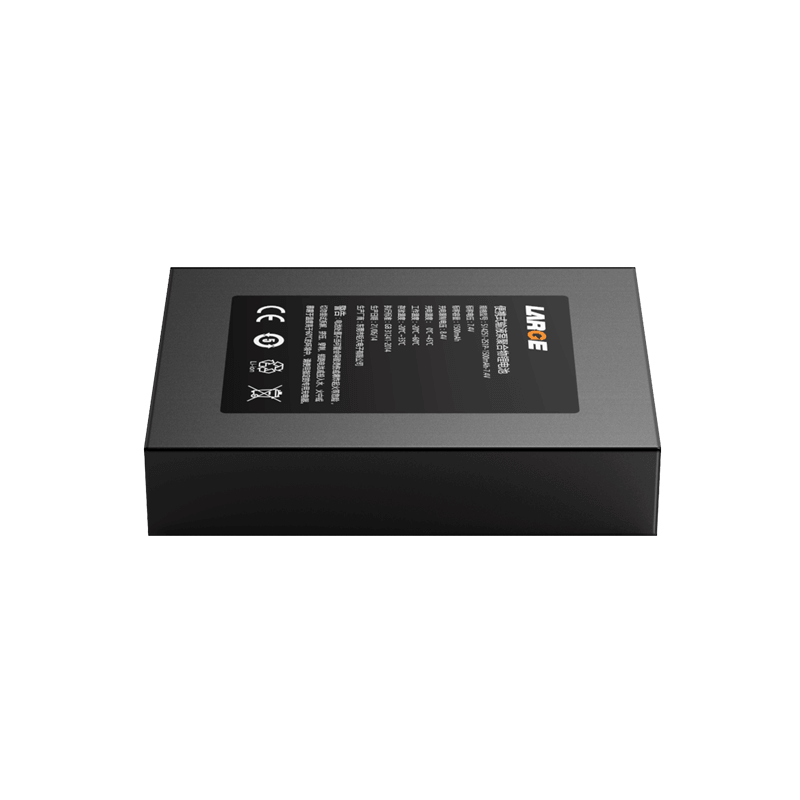

Custom Lithium ion Battery Pack
Product number: 01WQ0030-08
Cell model: 514251-1500MAH-3.7V
Battery specification: 514251-2S1P-1500MAH-7.4V
Nominal voltage: 7.4V
Nominal capacity: 1500mAh
Charging voltage: 8.4V
Charging current: ≤0.75A
Discharge current: ≤0.75A
Discharge cut-off voltage :6.0V
Product internal resistance: ≤200mΩ
Battery weight: 60G
Product dimension: 55*43*11mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery case: no case, polyester package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: portable infusion pump, portable medical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
