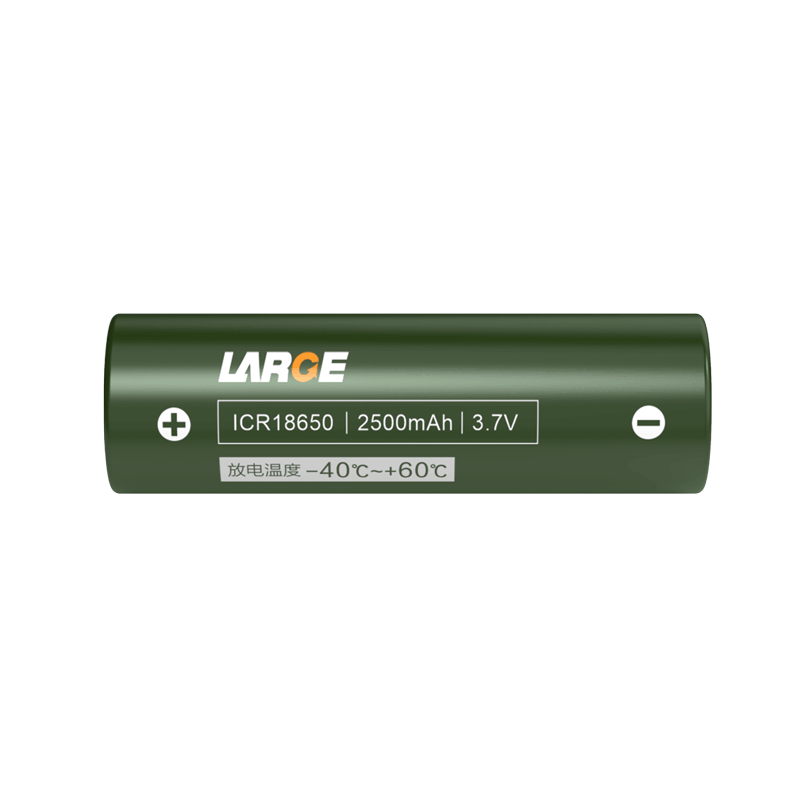

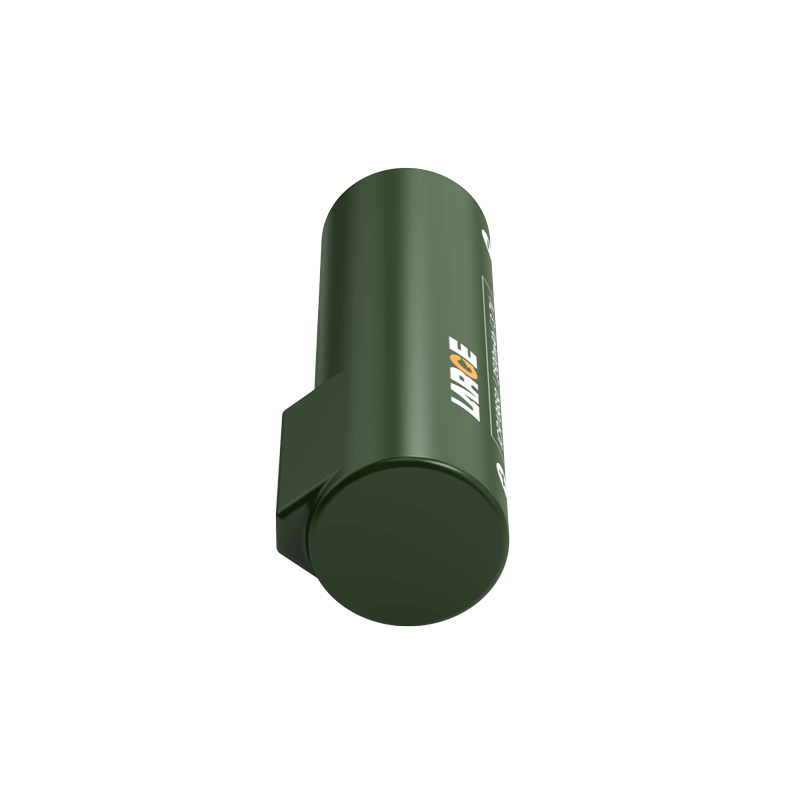

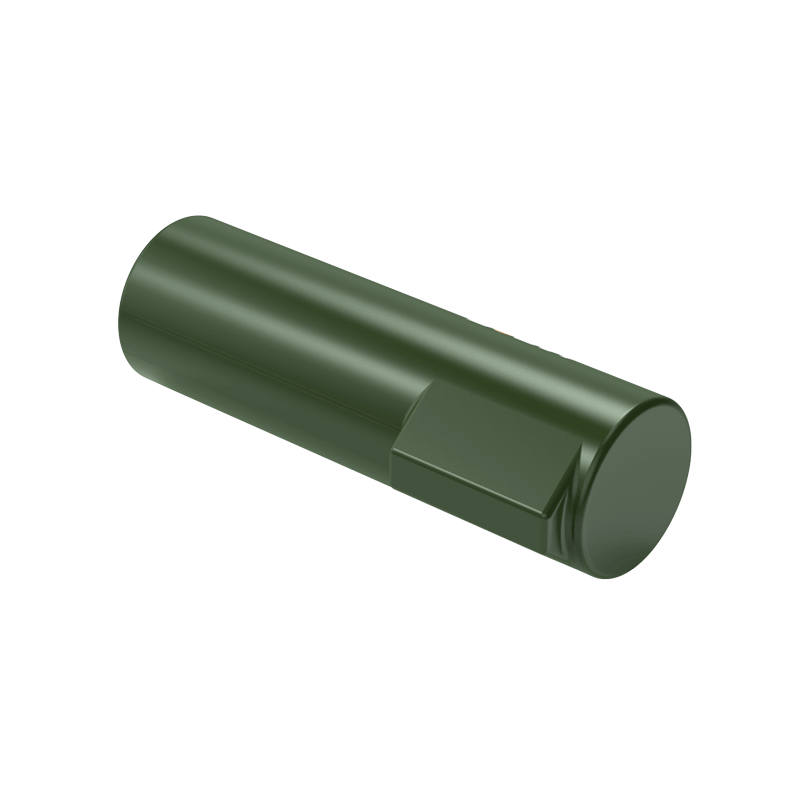

Custom Lithium ion Battery Pack
Product number: 35AQ208-01
Cell model: 18650-2500MAh-3.7V
Battery specification: 18650-1S1P-2500MAH-3.7V
Product dimension: 66.5*φ22mm (Max)
Nominal voltage: 3.7V
Nominal capacity: 2500mAh
Finished product internal resistance: ≤120mΩ
Charging voltage: 4.2V
Charging current: ≤1.25A
Discharge current: ≤1.25A
Discharge cut-off voltage: 2.8V
Battery weight: 50G
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 55℃
Storage temperature: -20 to 35 ° C
Battery package: PVC heat shrinkable film
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: Portable positioning module battery, positioning equipment
