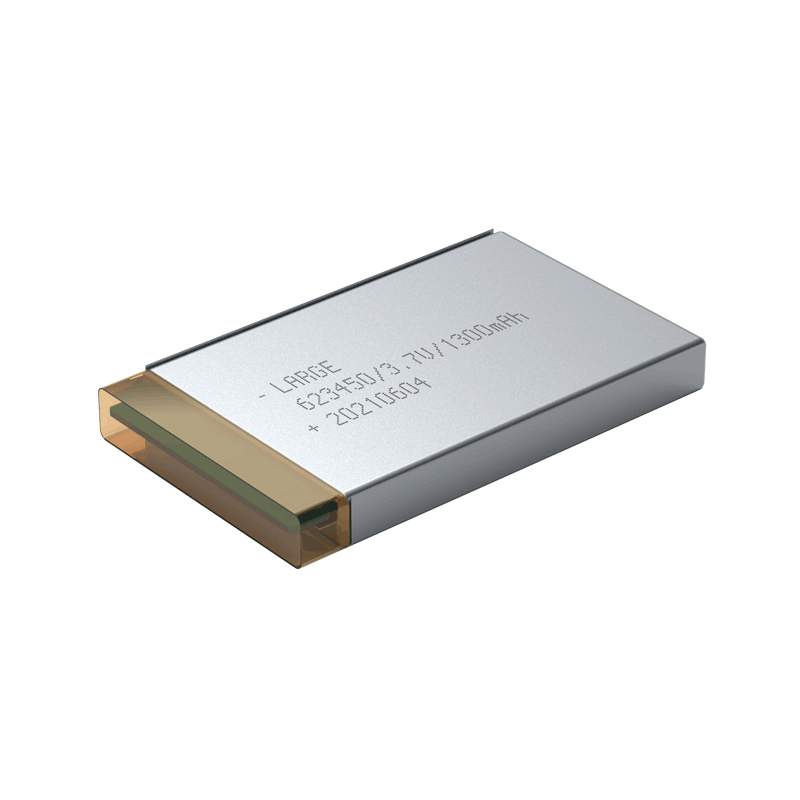

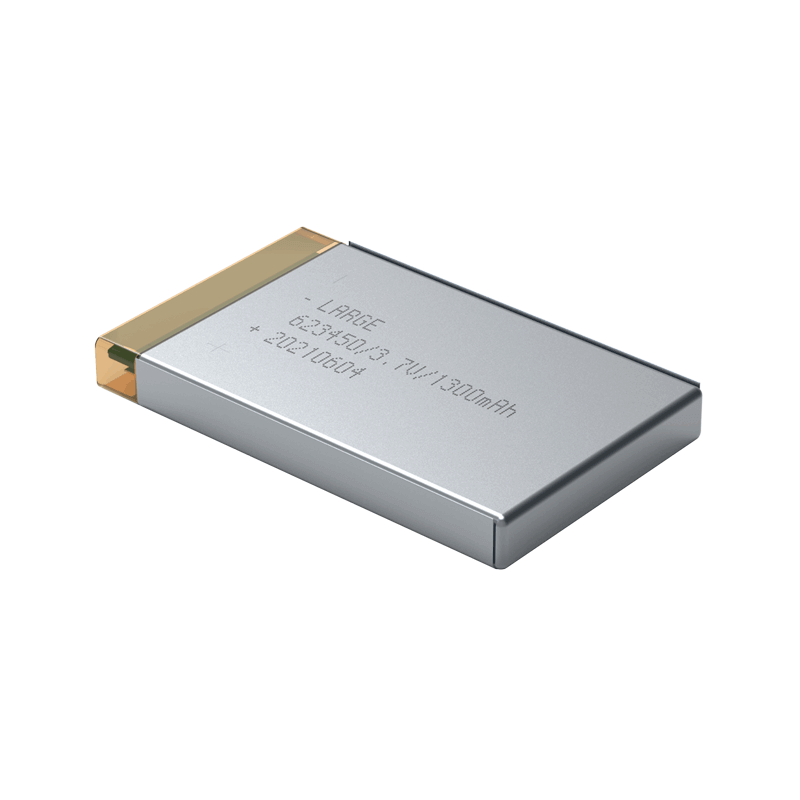

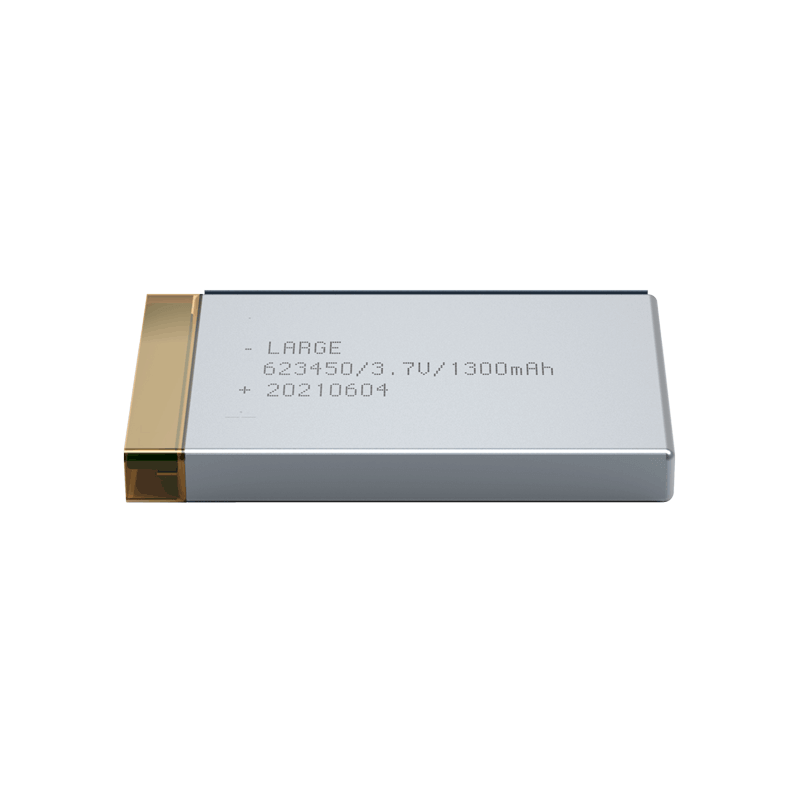

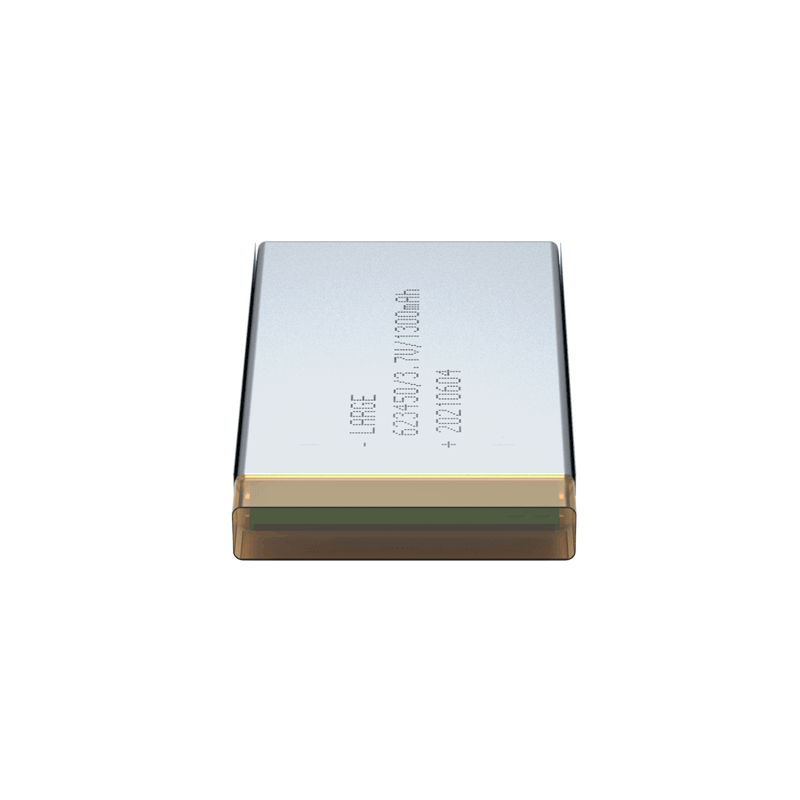

Custom Lithium ion Battery Pack
Product number: 41DZ003-09
Cell model: 623450-1300mah /3.7V
Battery specification: 623450-1S1P/1300mAh/3.7V
Nominal voltage: 3.7V
Nominal capacity: 1.3Ah
Charging voltage: 4.2V
Charging current: ≤0.7A
Discharge current: 1.3A
Instantaneous discharge current: 1.3A
Discharge cut-off voltage: 3V
Finished product internal resistance: ≤150mΩ
Battery weight: 150G
Product dimension: 56×34×6.2mm (MAX)
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 55℃
Storage temperature: -20 to 45 ° C
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Medical devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
