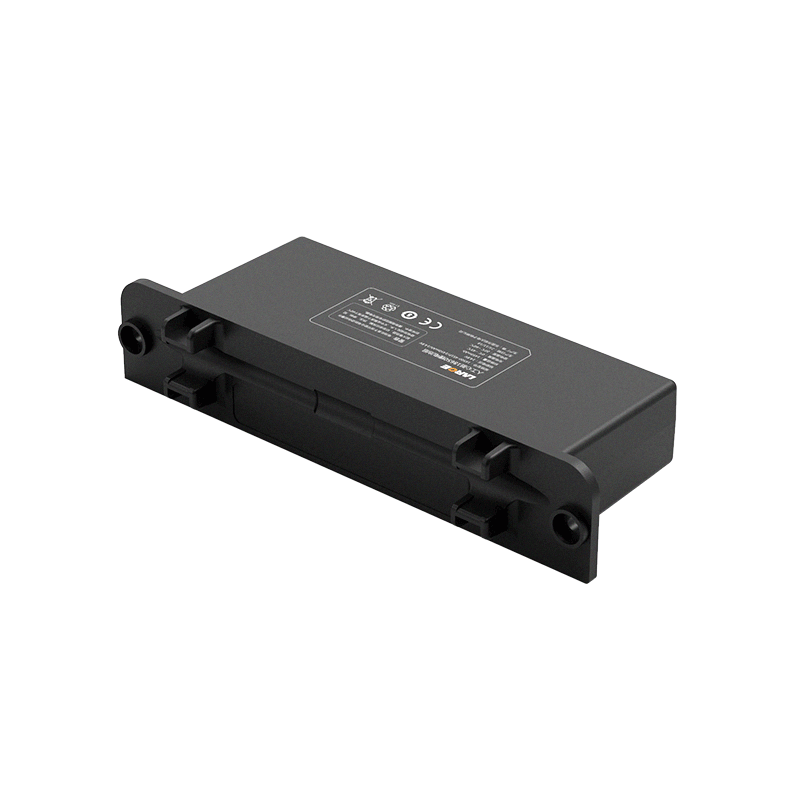

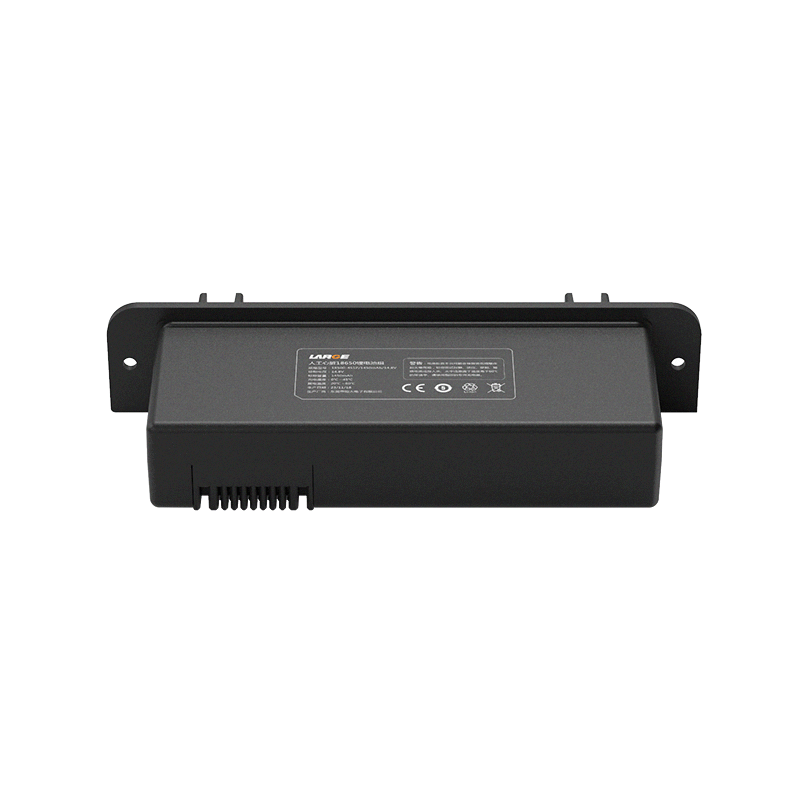

14.8V 1450mAh 18500 Lithium Battery Pack
For Artificial Heart, Intelligent Lithium Battery with SMBus Communication
Project Number: 05DQ0073-02
Battery cell model: UR18500F/1620mAh/3.7V
Battery specifications: 18500-4S1P/1450mAh/14.8V
Nominal voltage: 14.8V
Nominal capacity: 1450mAh
Charging voltage: 16.8V
Charging current: ≤1.5A
Discharge current: 2.0A
Instantaneous discharge current: 3.0A
Discharge cut-off voltage: 10.8V
Finished product internal resistance: ≤350mΩ
Battery weight: 180±20g
Product dimensions: 26.2*54.9*129.6mm
Charging temperature: 0-45℃
Discharge temperature: -20 to 60℃
Storage temperature: -20 to 23℃
Battery housing: ABS+PC
Communication protocol: SMBUS
Protection grade: IPX4
Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc
Application fields: Artificial hearts, medical equipment
