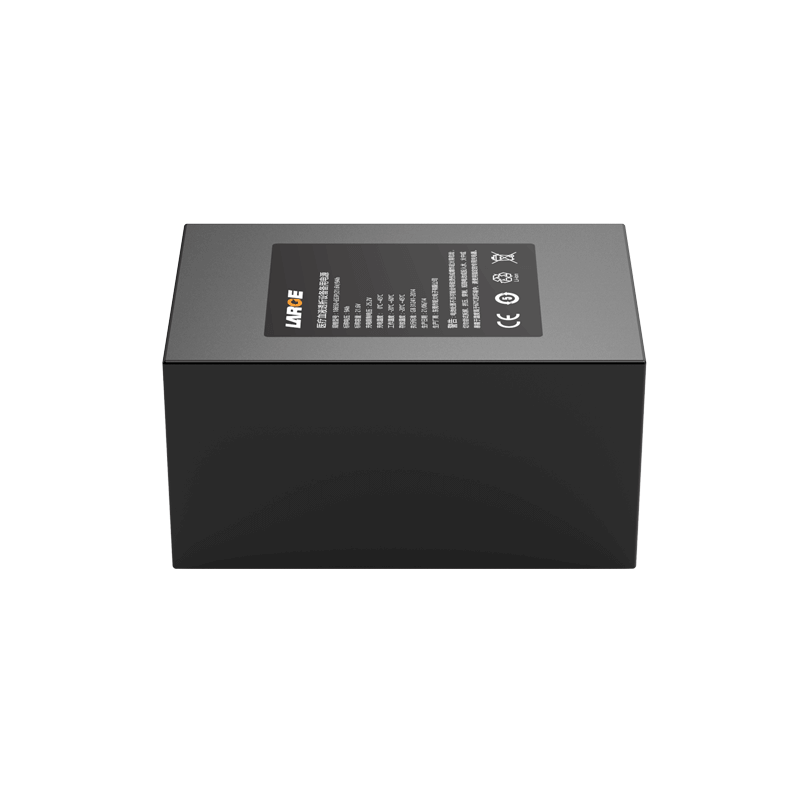

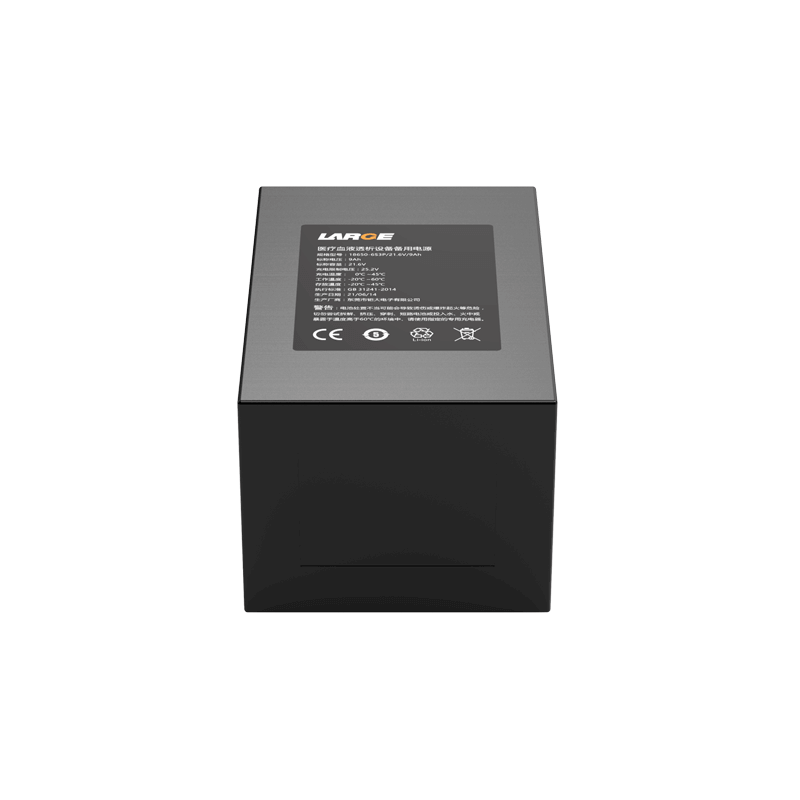

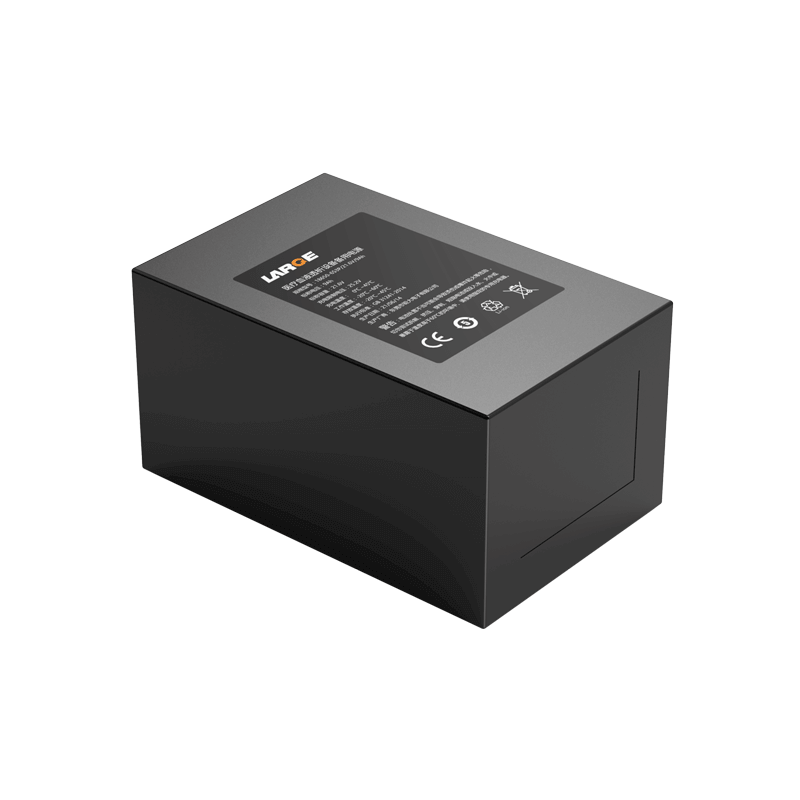

Custom Lithium ion Battery Pack
Product number: 33DZ022-01
Cell model: 18650/3.6V/ 3.0AH
Battery specification: 18650-6S3P/21.6V/9Ah
Nominal voltage: 21.6V
Nominal capacity: 9Ah
Charging voltage: 25.2V
Charging current: ≤ 4.5a
Discharge current: ≤25A
Instantaneous discharge current: 30A
Discharge cut-off voltage: 18V
Finished product internal resistance: ≤150mΩ
Battery weight: 1Kg
Product size: 130*68*83 mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 45 ° C
Temperature protection: 65℃±5℃
Battery case: PVC
Communication protocol: 485 MOSBUS protocol
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, equilibrium, anti reverse connection protection, etc.
Application: Medical hemodialysis equipment
Product features
1.Low self-consumption;
2.The battery has built-in temperature protection.
3.The battery pack is safe and has long cycle life.
4.It has 485 communication protocol.
5.It can discharge at large current rate.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
