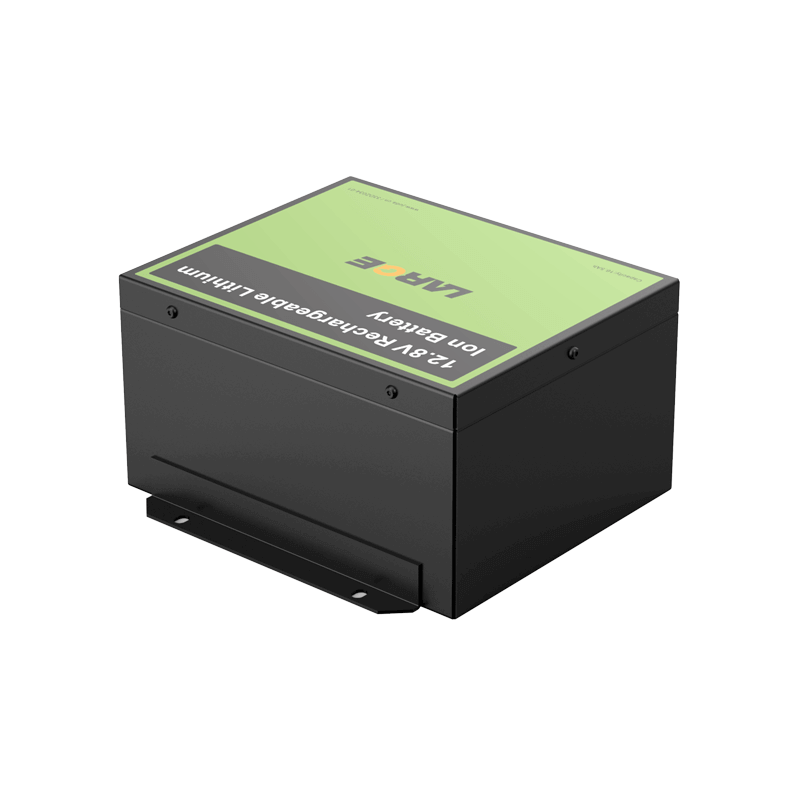

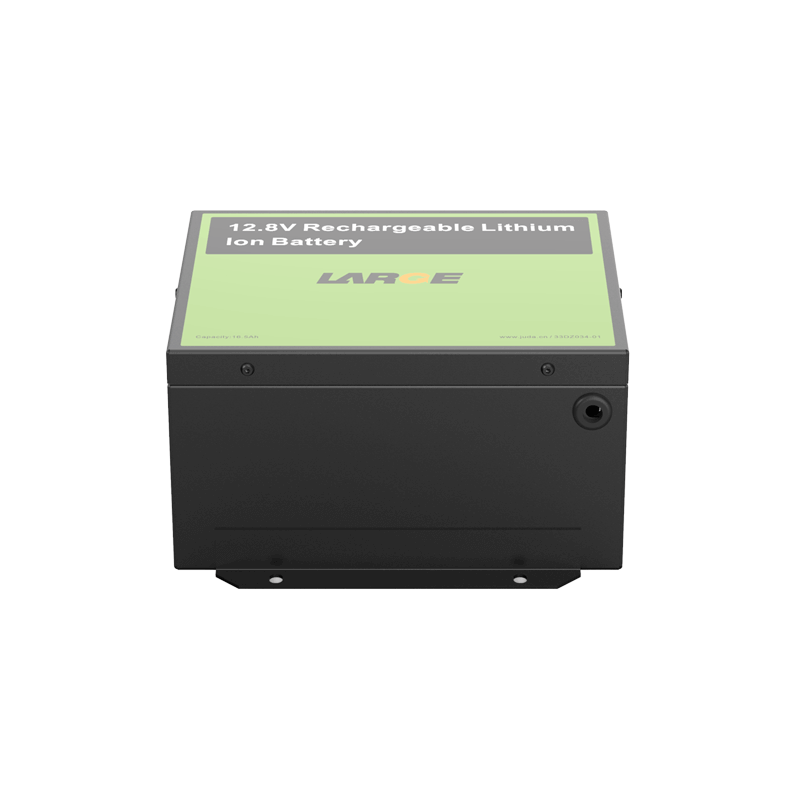

Project number: 33DZ034-01
Cell model: 26650 3.2V/ 3.3AH
Battery specification: 4S5P/12.8V/ 16.5AH (low temperature)
Nominal voltage: 12.8V
Nominal capacity: 16.5Ah
Charging voltage: 14.6V
Charging current: ≤8.25A
Discharge current: 17.25A
Instantaneous discharge current: greater than 35A
Discharge cut-off voltage: 8V
Product internal resistance: ≤200mΩ
Battery weight: 200G
Product dimension: 100*150*185mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40 ° C to 45 ° C
Temperature protection: 75℃±5℃
Battery package: metal plate
Communication: no
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.
Application: Backup power supply for portable devices
Product features
1.Lithium iron phosphate low temperature charge and discharge battery
2.Temperature protection,
3.Large current discharge
4.The battery pack is safe and has long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
