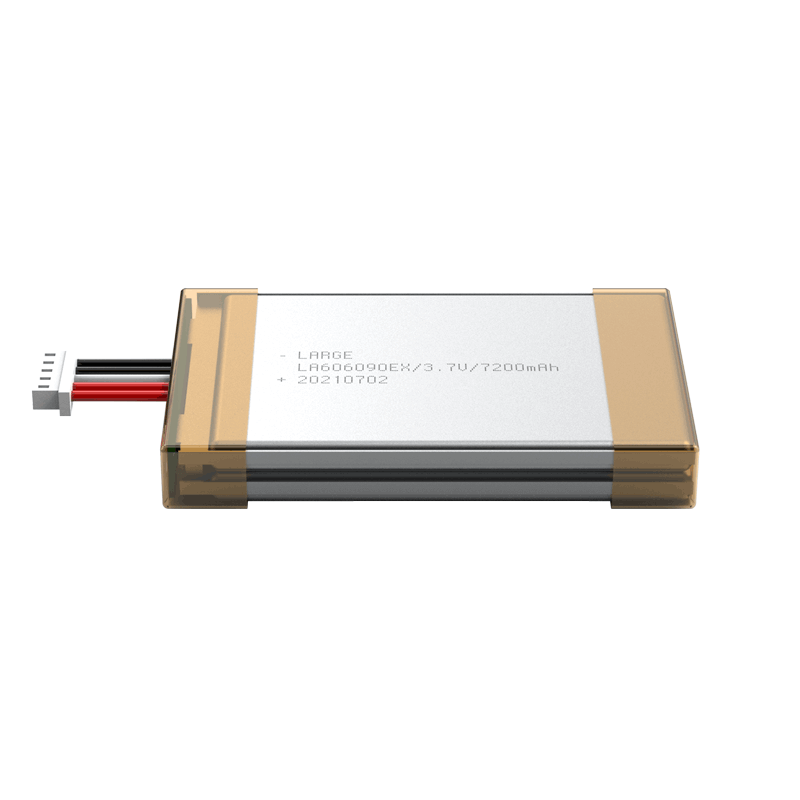

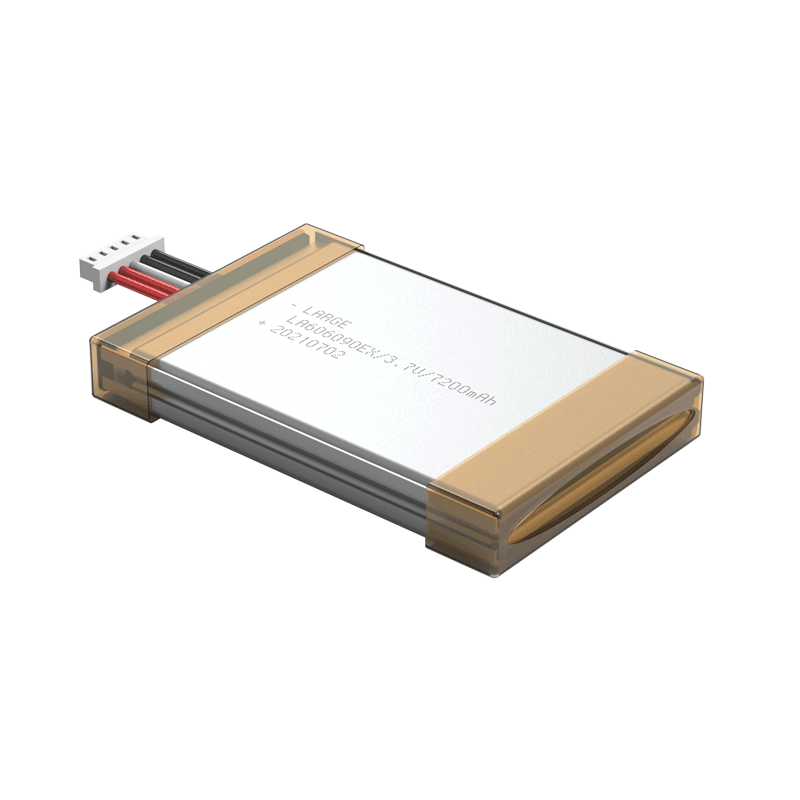

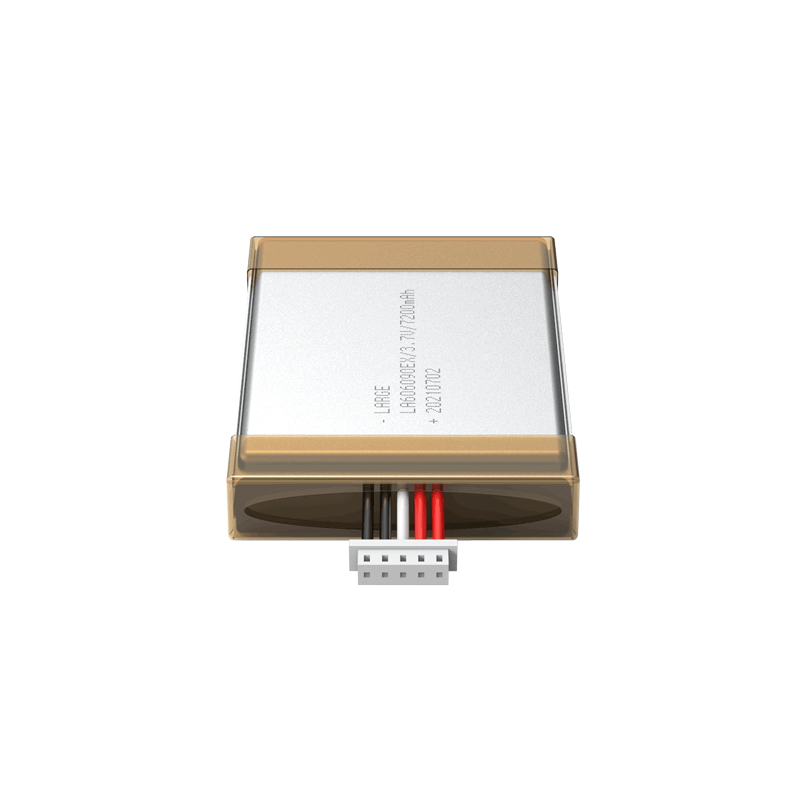

Custom Lithium ion Battery Pack
Project number: 34AQ080-03
Cell model: LA606090EX-3600MAH-3.7V
Battery specification: LA606090EX-1S2P-7200MAH-3.7V
Nominal voltage: 3.7V
Nominal capacity: 7200mAh
Charging voltage: 4.2V charging
Charging current: ≤ 2.5A
Discharge current: 2.3A
Instantaneous discharge current: 6.0A
Discharge cut-off voltage: 3.0V
Product internal resistance: ≤200mΩ
Battery weight: 160G
Product dimension: 13.0*61*95mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: 0 to 25 ° C
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Handheld terminal
