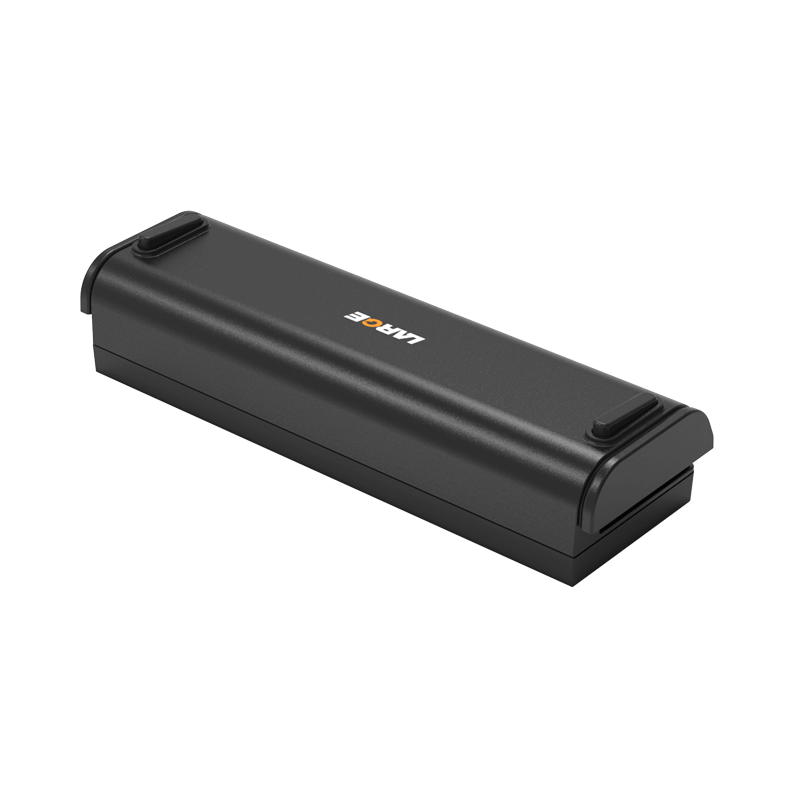

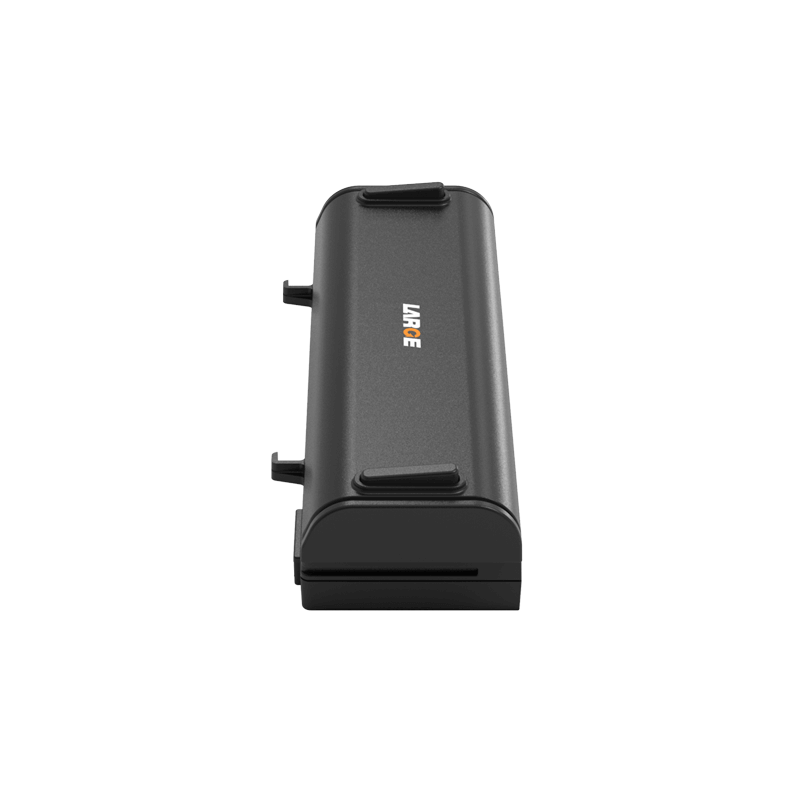

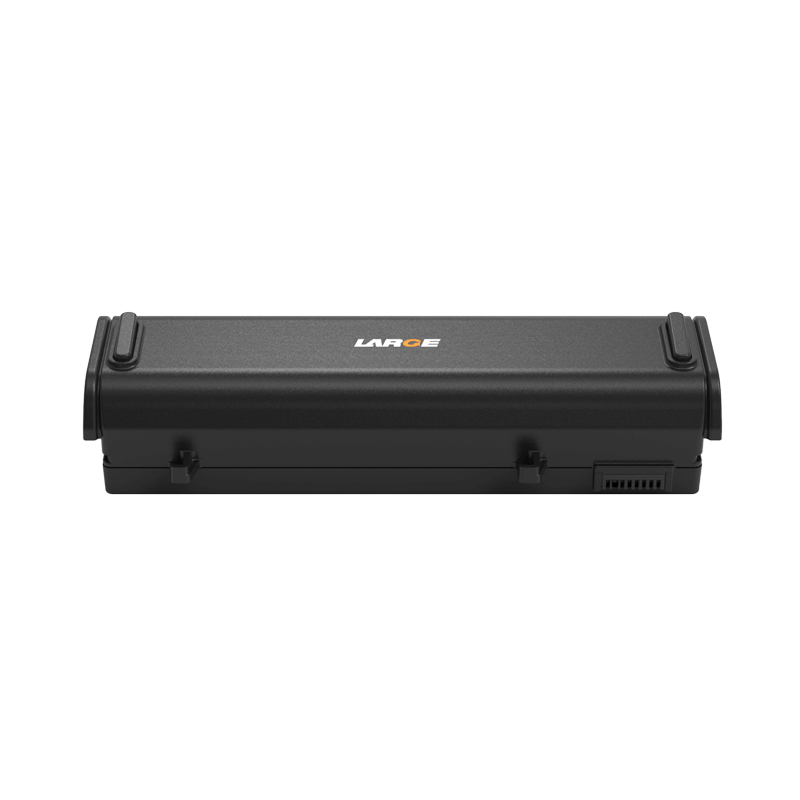

Custom Lithium ion Battery Pack
Project number: 09AQ109-14
Cell model: INR18650-35E/3350mAh/3.6V
Battery specification: 18650-4S4P/ 12.4AH /14.4V
Nominal voltage: 14.4V
Nominal capacity: 12.4Ah
Charging voltage: 16.8V
Charging current: ≤3.40A
Discharge current: 6.80A
Instantaneous discharge current: 8.0A
Discharge cut-off voltage: 12.0V
Internal resistance: ≤250mΩ
Battery weight: 850 GB
Product dimension: 41.5*77.69*219.88mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ° C to 23 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: B ultrasound machine, medical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
