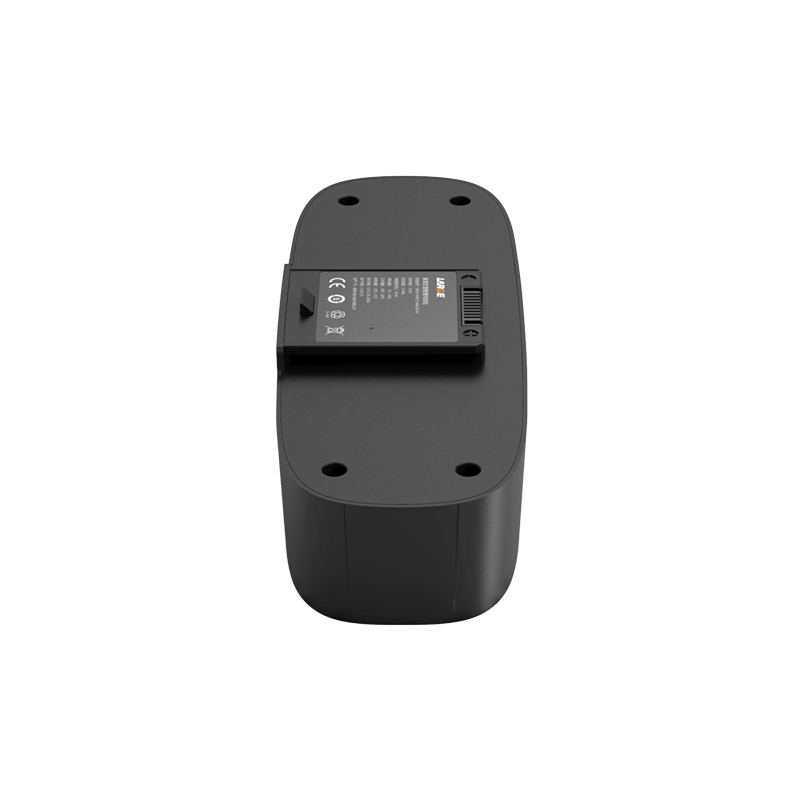

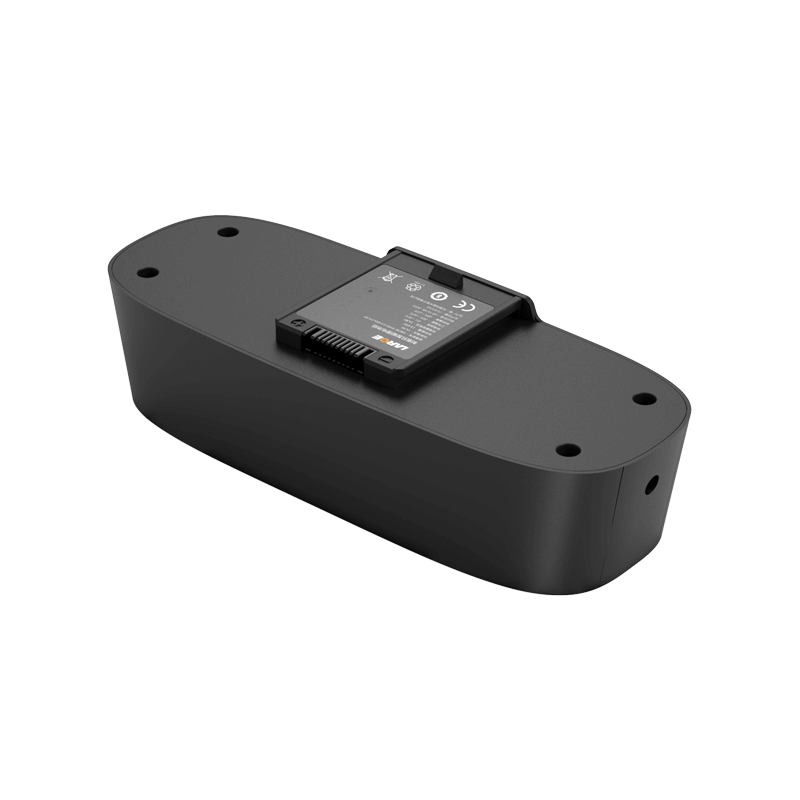

Custom Lithium ion Battery Pack
Project number: 04DQ0086-03T
Cell model: INR1865-35E/3350mAh/3.6V
Battery specification: 18650-4S4P/13.4Ah/14.4V
Nominal voltage: 14.4V
Nominal capacity: 13.4Ah
Charging voltage: 16.8V
Charging current: ≤3.35A
Discharge current: 6.70A
Instantaneous discharge current: 15.0A
Discharge cut-off voltage: 11.2V
Internal resistance: ≤250m ω
Battery weight: 1200G
Product dimension: 55.08*80.45*221.03mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ° C to 23 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: oxygen generator, medical equipment
