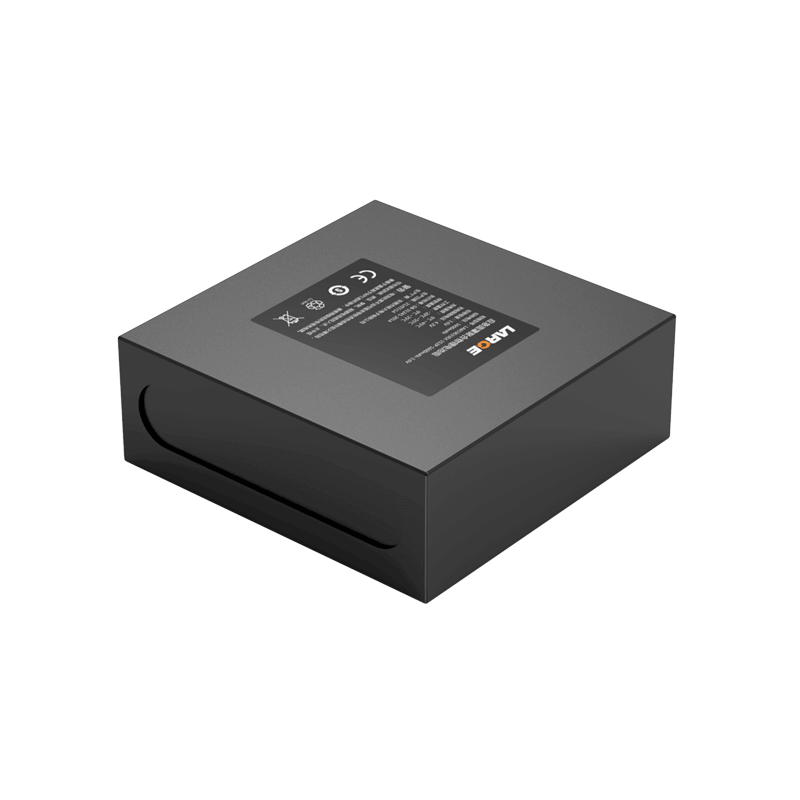

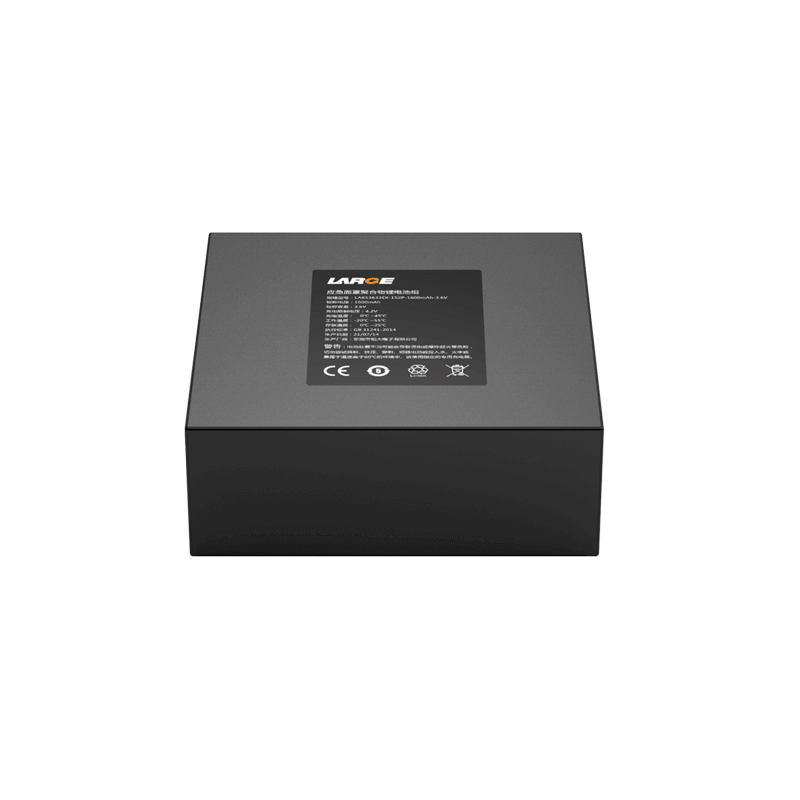

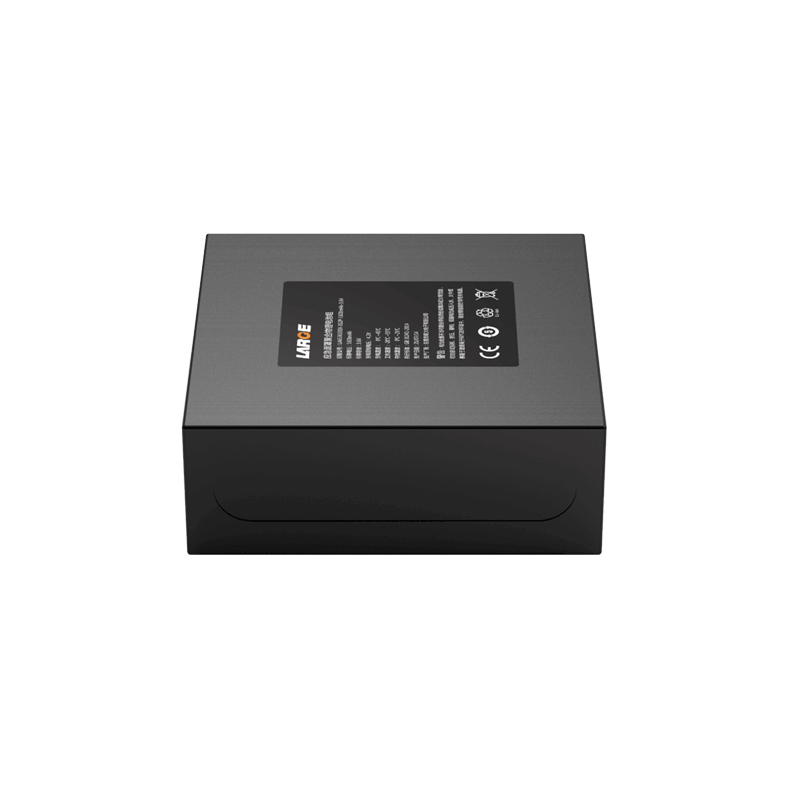

Custom Lithium ion Battery Pack
Project number: 35AQ658-04T
Cell model: LA653633EX/800mAh/3.6V
Battery specification: LA653633EX-1S2P-1600MAH-3.6V
Nominal voltage: 3.6V
Nominal capacity: 1600mAh
Charging voltage: 4.2V charging
Charging current: ≤0.8A
Discharge current: 1.60A
Instantaneous discharge current: 3.0A
Discharge cut-off voltage: 2.80V
Product internal resistance: ≤200mΩ
Battery weight: 50G
Product size: 14*37*37.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: 0 to 25 ° C
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: emergency mask, industrial equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
