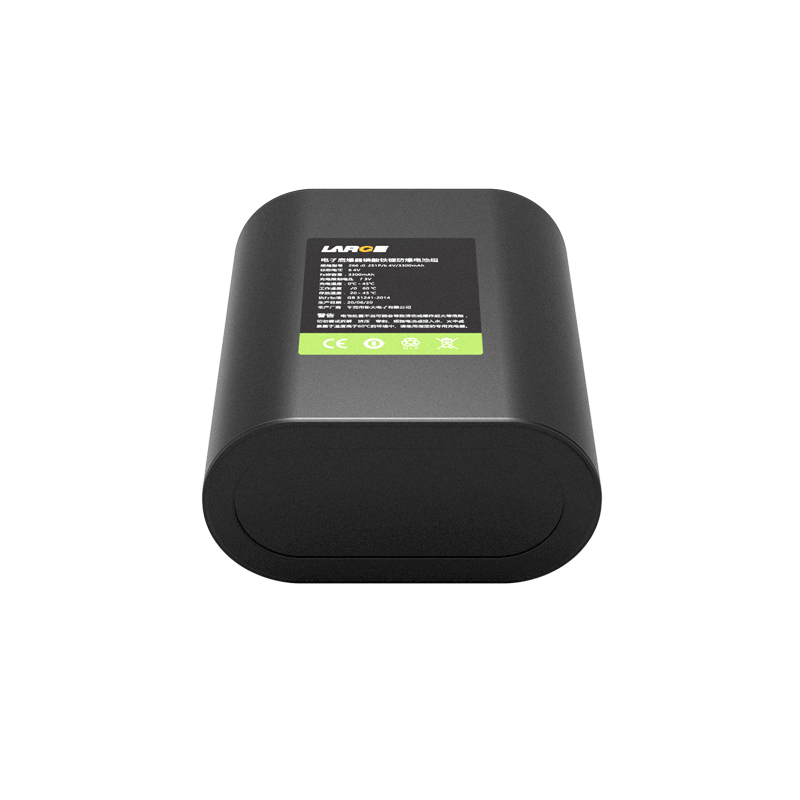

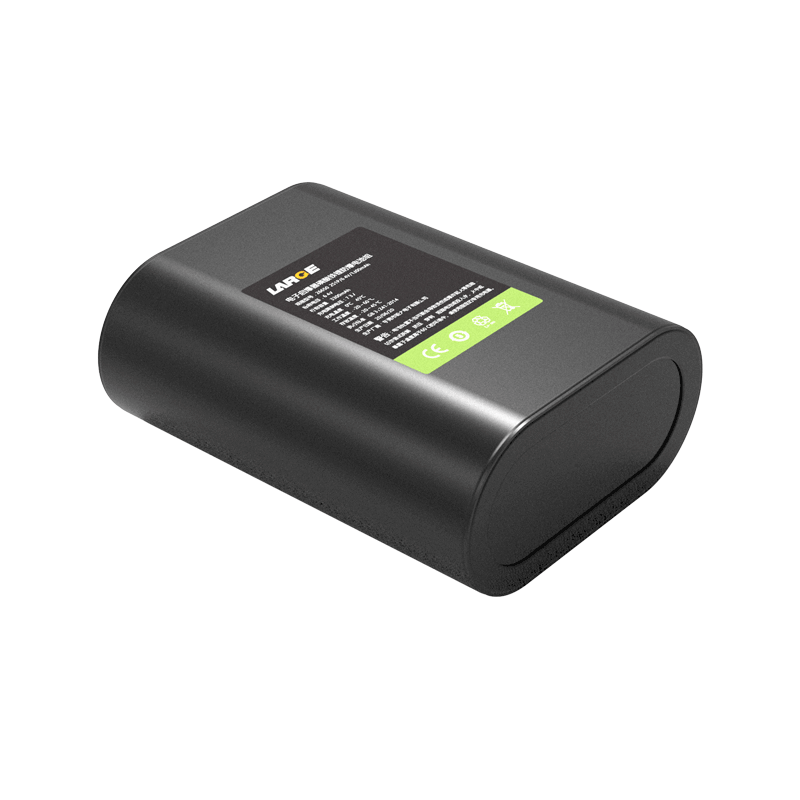

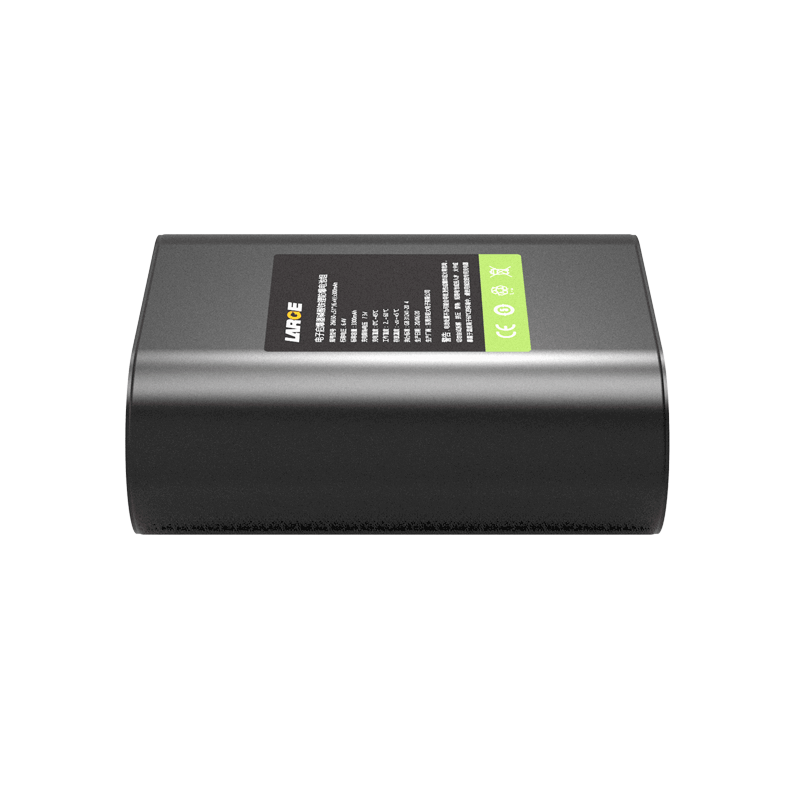

Custom Lithium ion Battery Pack
Product number: 37DZ068-02
Cell model：26650/3.2V/3300mAh
Battery specification: 26650-2S1P/6.4V/3300mAh
Nominal voltage：6.4V
Nominal capacity：3300mAh
Charging voltage: 7.3V
Charging current: ≤1.65A
Discharging current: 2A
Instant discharging current: less than 3A
End-off voltage: 4V
Internal resistance: ≤200mΩ
Battery weight: 200g
Product dimension: 28*54.5*72mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～45℃
Battery case: PVC
Battery protection: short circuit protection, overcharge double protection, over-discharge double protection, overcurrent double protection, over temperature, etc.
Application field: electronic exploder
Product features
1. Intrinsic safety explosion-proof T4
2. Temperature protection
3. Double protection
4. The battery pack has good security and long cycle life.
5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
