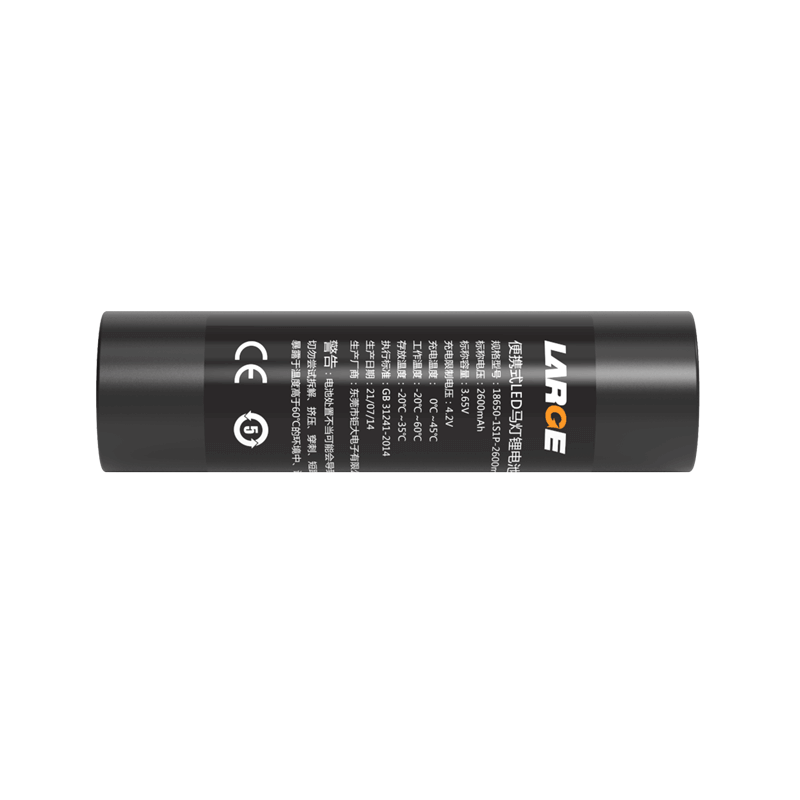

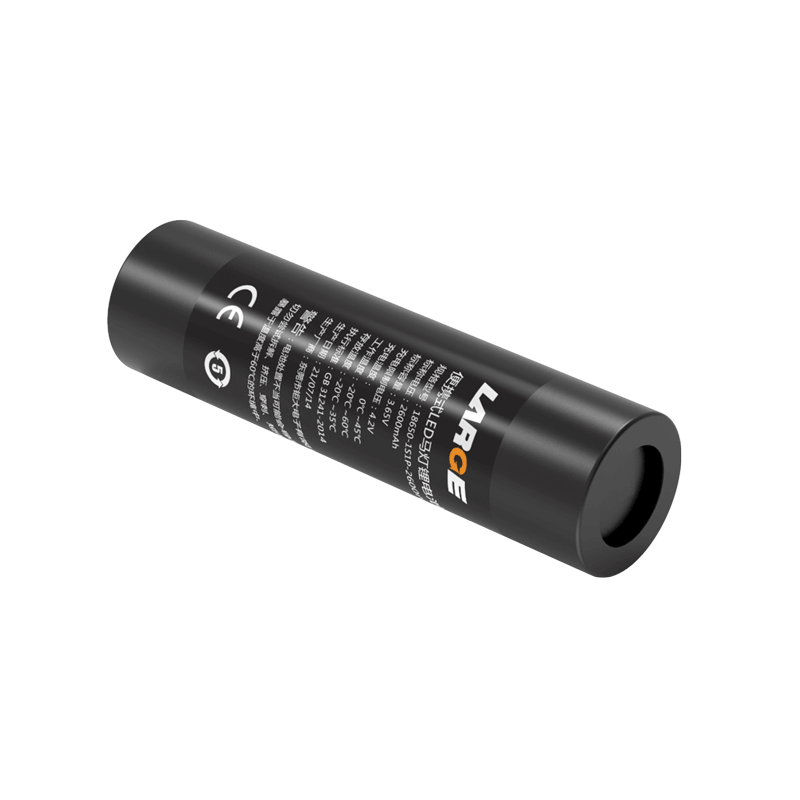

Custom Lithium ion Battery Pack
Product number: 05DQ0022-02
Cell model: 18650-2600MAH-3.65V
Battery specification: 18650-1S1P-2600MAH-3.65V
Product size: 71*19.5mm (Max)
Nominal voltage: 3.65V
Nominal capacity: 2600mAh
Product internal resistance: ≤180mΩ
Charging voltage: 4.2V
Charging current: ≤1.25A
Discharge current: ≤ 2.5A
Discharge cut-off voltage: 3.0V
Battery weight: 50G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery package: blue PVC heat shrinkable film package
Output mode: MOLEX plug
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: Portable LED, camping lights, portable lighting equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
