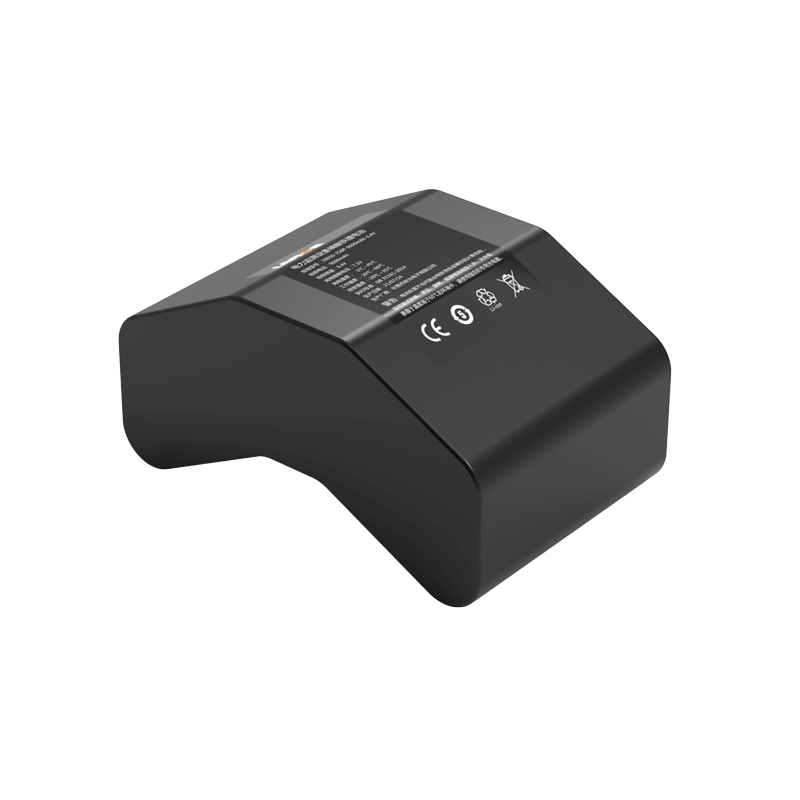

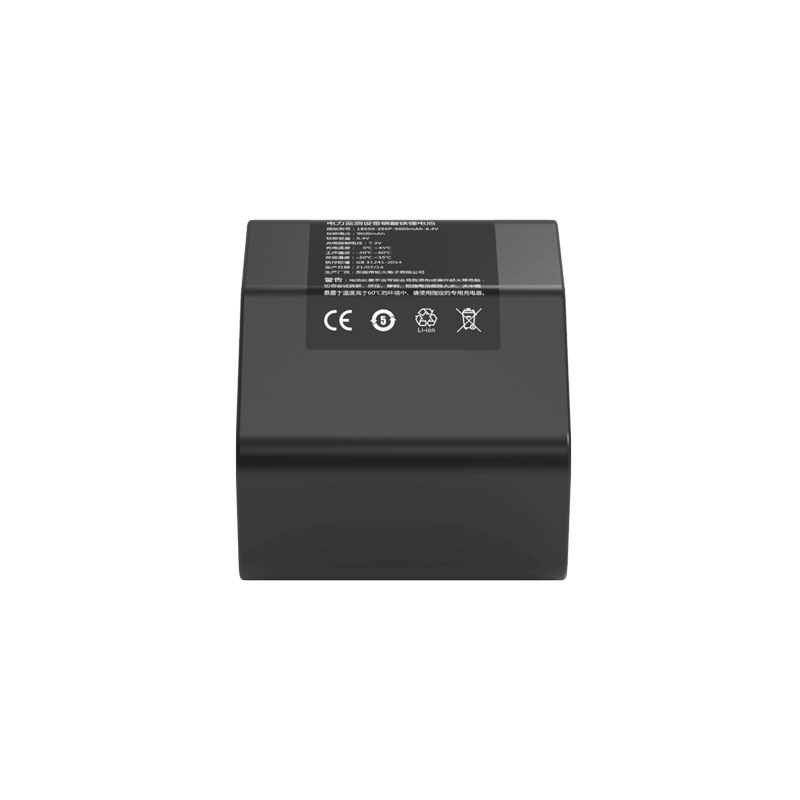

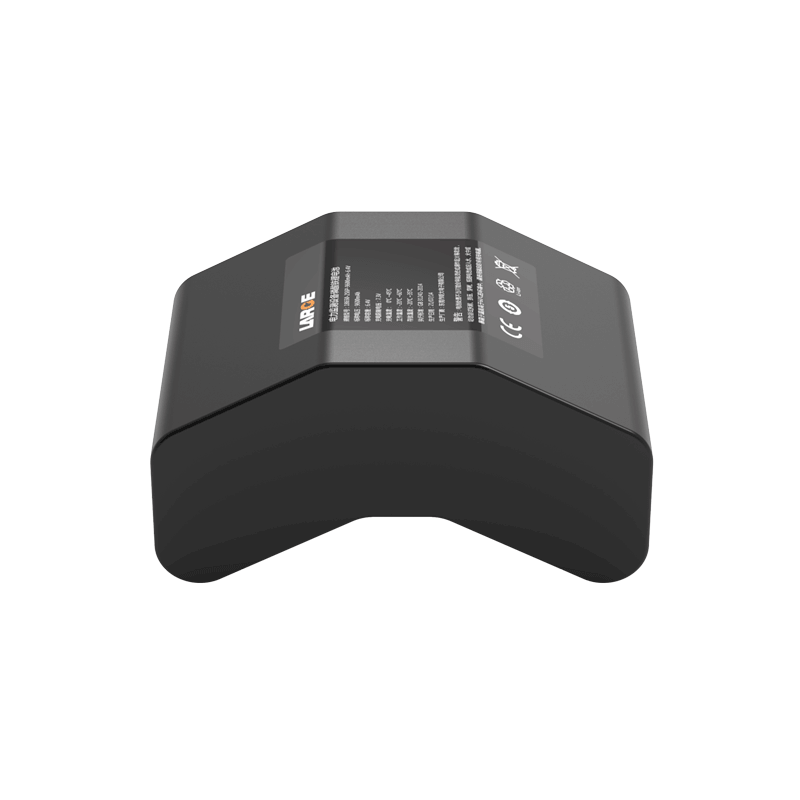

18650 6.4V 9600mAh LiFePO4 Battery for Power Monitoring

Customization | Free Battery Solution

Product Detail

Product Number: 34AQ018-11

Cell model: 18650-1600MAH-3.2V

Battery specification: 18650-2S6P-9600MAH-6.4V

Product size: 106*70*56mm (Max)

Nominal voltage: 6.4V

Nominal capacity: 9600mAh

Charging voltage: 7.3V

Charging current: ≤3.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 5.0V

Internal resistance of finished product: ≤300mΩ

Battery weight: 1000G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Battery package: blue PVC heat shrinkable film package

Output mode: JST plug

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Power testing equipment, testing equipment field


Product features

1.Battery management: Adopt imported protection chip with high stability, high precision monitoring, precise control, ESD protection, temperature protection and other functions to eliminate security risks to the greatest extent.

2.Voltameter: The battery comes with DS2781-HDQ communication protocol, allowing users to read battery charge information via HDQ.

3.The battery pack is safe, has good discharge performance and long cycle life.

4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
