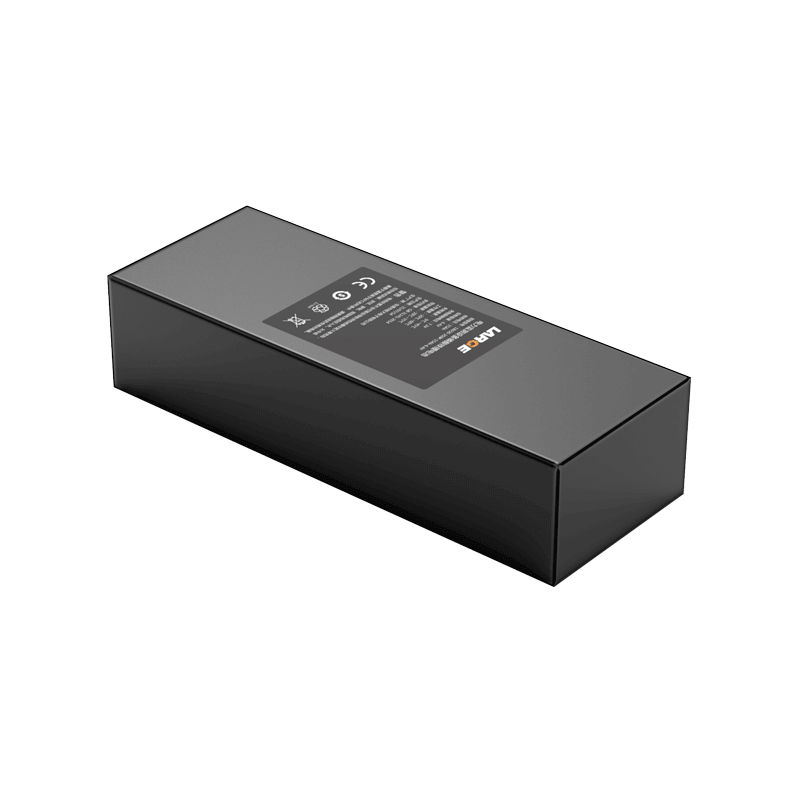

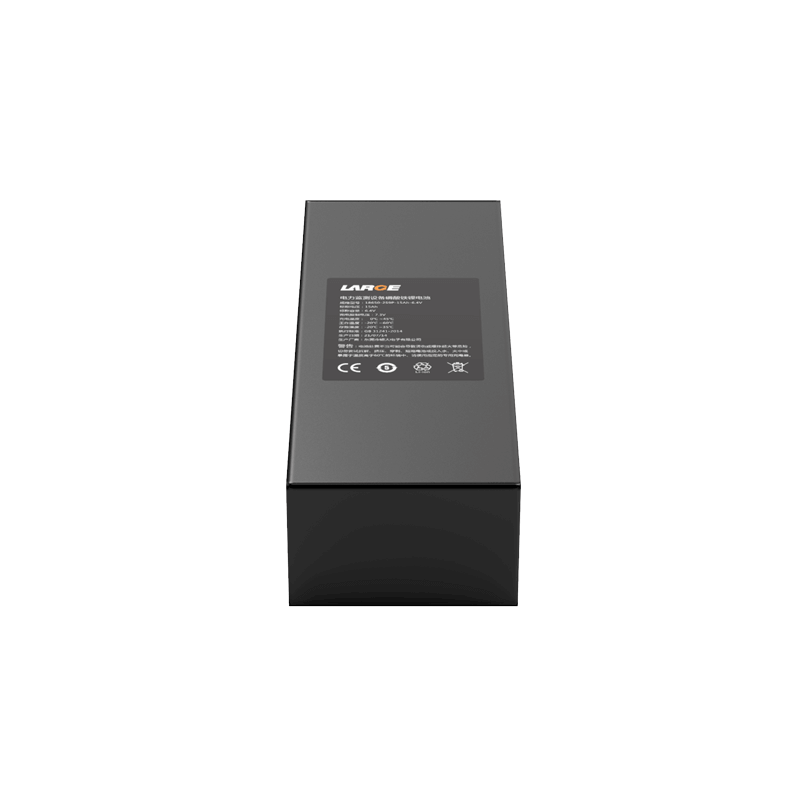

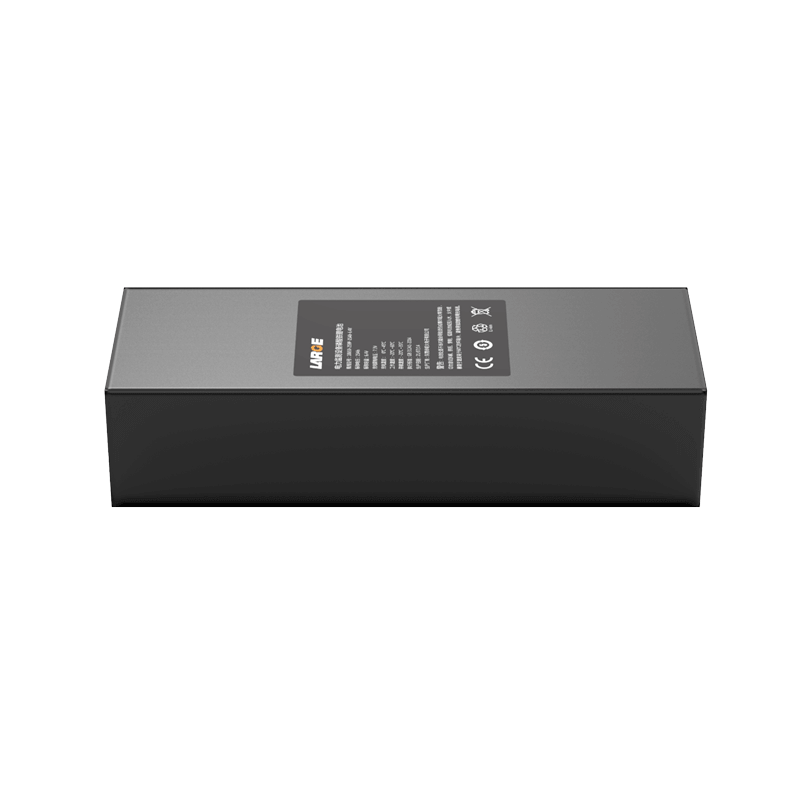

Custom Lithium ion Battery Pack
Product number: 34AQ018-09
Cell model: 18650-1500MAH-3.2V
Battery specification: 18650-2S9P-15AH-6.4V
Product size: 190*70*50mm (Max)
Nominal voltage: 6.4V
Nominal capacity: 15Ah
Charging voltage: 7.3V
Charging current: ≤2.0A
Discharge current: ≤2.0A
Discharge cut-off voltage: 5.0V
Product internal resistance: ≤280mΩ
Battery weight: 1000G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery package: blue PVC heat shrinkable film package
Output mode: JST plug
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Power testing equipment, testing equipment
Product features
1.Static battery management: Adopts imported protection chip: features high stability, high precision monitoring, precise control, ESD protection, temperature protection and other functions. Eliminate security risks to the greatest extent
2.Bill of Fare: The battery comes with ds2781-HDQ communication protocol, allowing users to read battery charge information via HDQ
3.Sino - buy battery pack is safe, has good discharge performance and long cycle life.
4.The battery has long cycle, which is in line with low carbon, energy saving, environmental protection values.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
