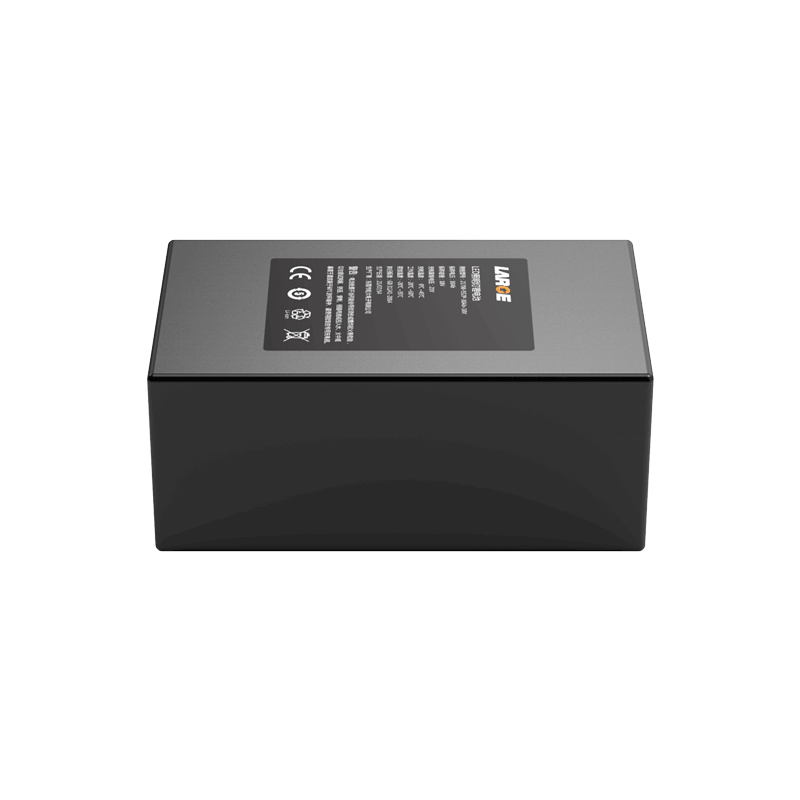

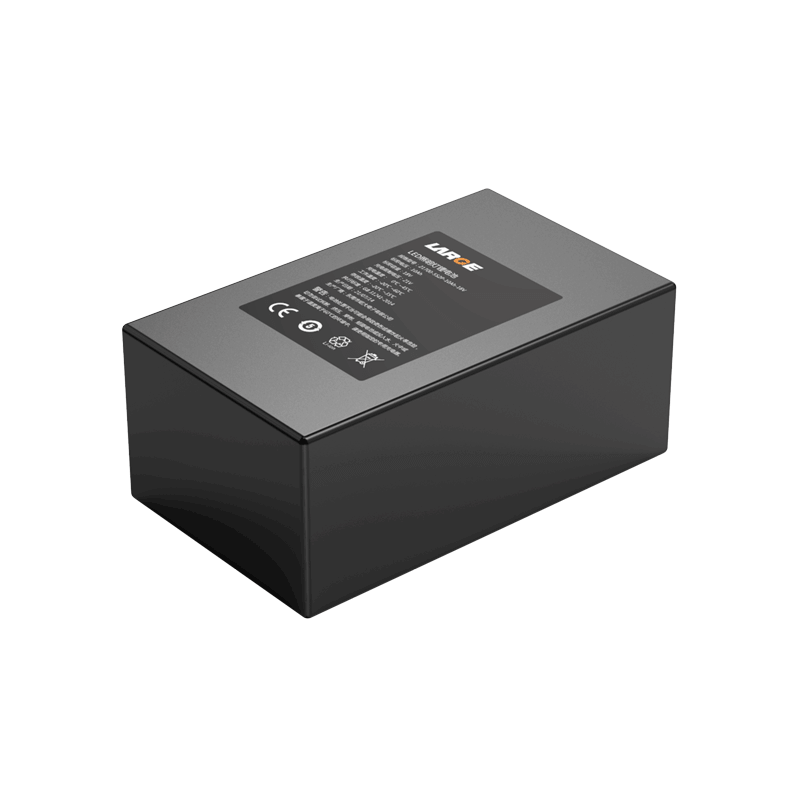

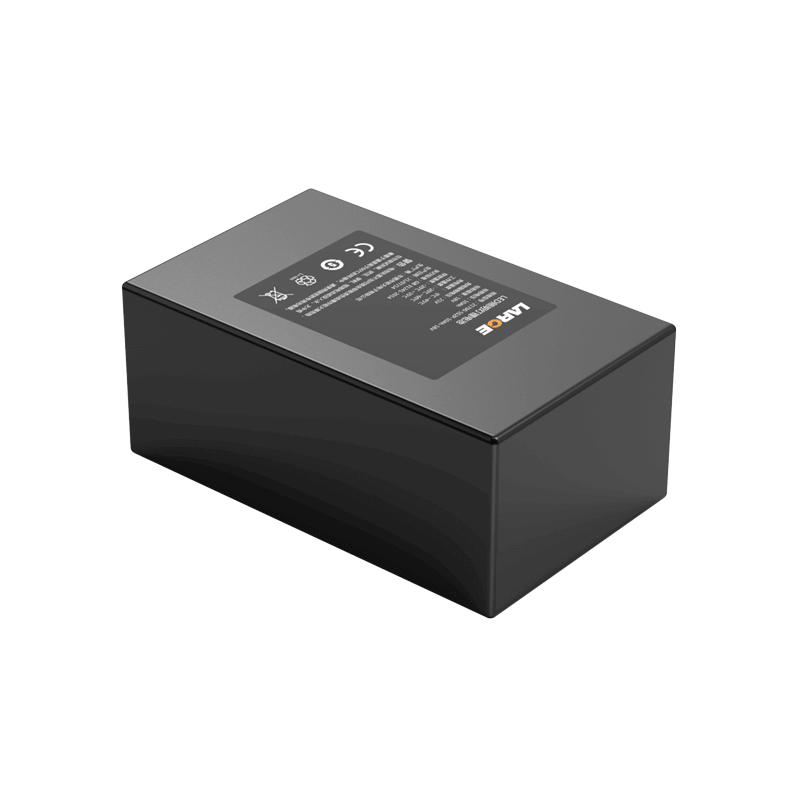

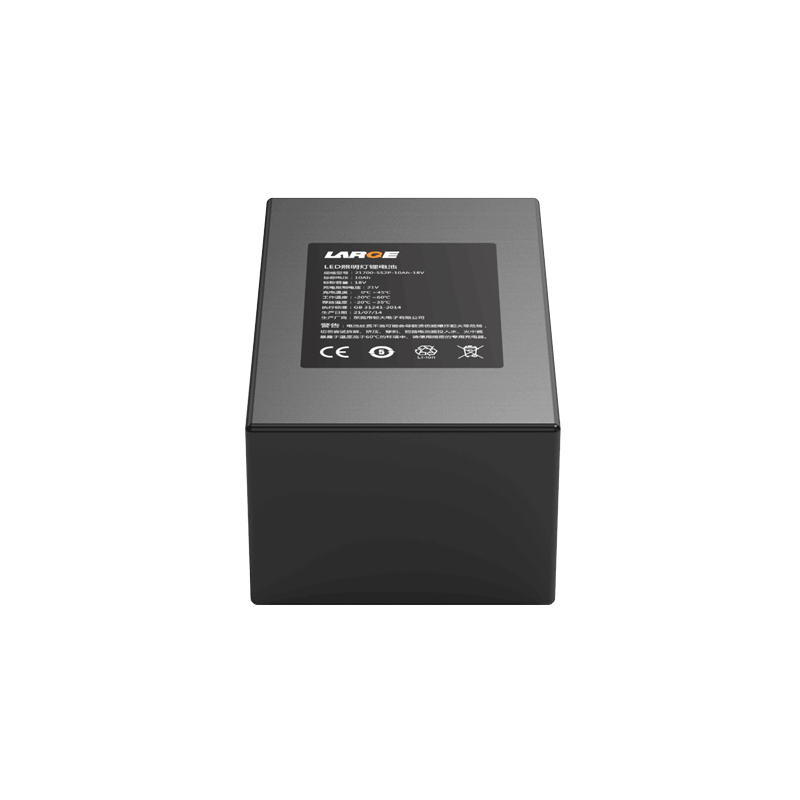

Custom Lithium ion Battery Pack
Product number: 04BQ118-30
Cell model: 21700-5000MAH-3.6V
Battery specification: 21700-5S2P-10AH-18V
Product size: 740*32*32mm (Max)
Nominal voltage: 18V
Nominal capacity: 10Ah
Product internal resistance: ≤200mΩ
Charging voltage: 21V
Charging current: ≤5A
Discharge current: ≤5A
Discharge cut-off voltage: 14V
Battery weight: 750G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery package: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: LED lighting equipment, high power lighting equipment
Product features
1.Protective blue PVC heat shrinkable film package is simple, reliable and easy to install.
2.Fix epoxy panels around so as to facilitate battery assembly.
3.Battery protection management: Adopt imported Ricoh protection chip with high stability, high precision monitoring and precise control to eliminate potential safety hazards to the maximum.
4.The battery pack is safe, has good discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
