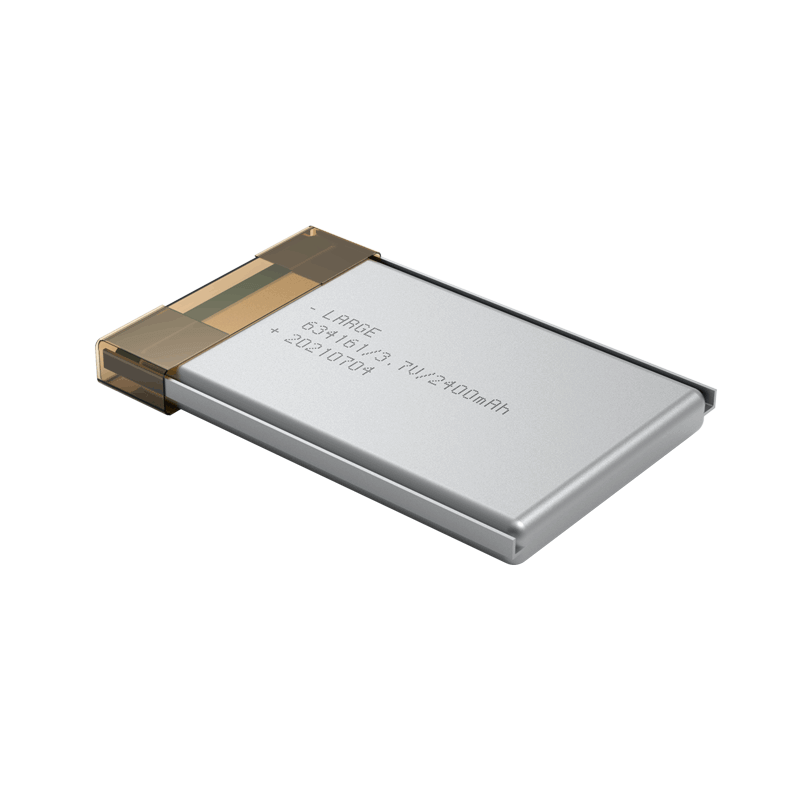

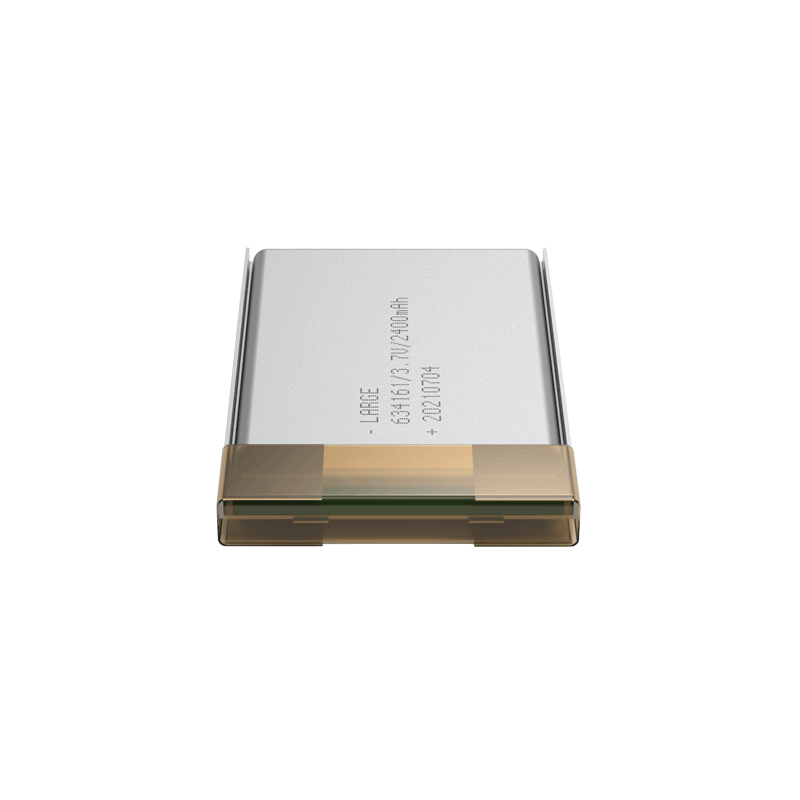

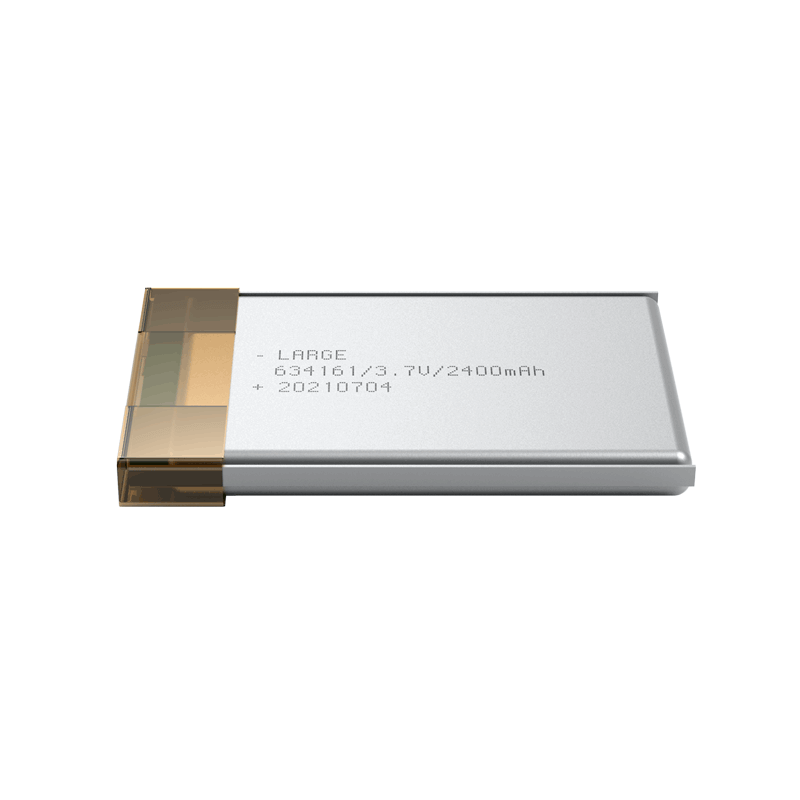

634161 3.7V 2400mAh Lithium Polymer Battery for Portable Infusion Pump

Customization | Free Battery Solution

Product Detail

Product number: 01WQ0030-09

Cell model: 634161-2400MAH-3.7V

Battery specifications: 634161-1S1P-2400MAH-3.7V

Nominal voltage: 4.2V

Nominal capacity: 2400mAh

Charging voltage: 4.2V

Charging current: ≤1.5A

Discharge current: ≤2.0A

Discharge cut-off voltage :3.0V

Finished product internal resistance: ≤120mΩ

Battery weight: 40G

Product size: 65*41.5*6.8mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Battery case: green silicine poltester tape

Output mode: MOLEX plug

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: portable infusion pump, portable medical equipment
