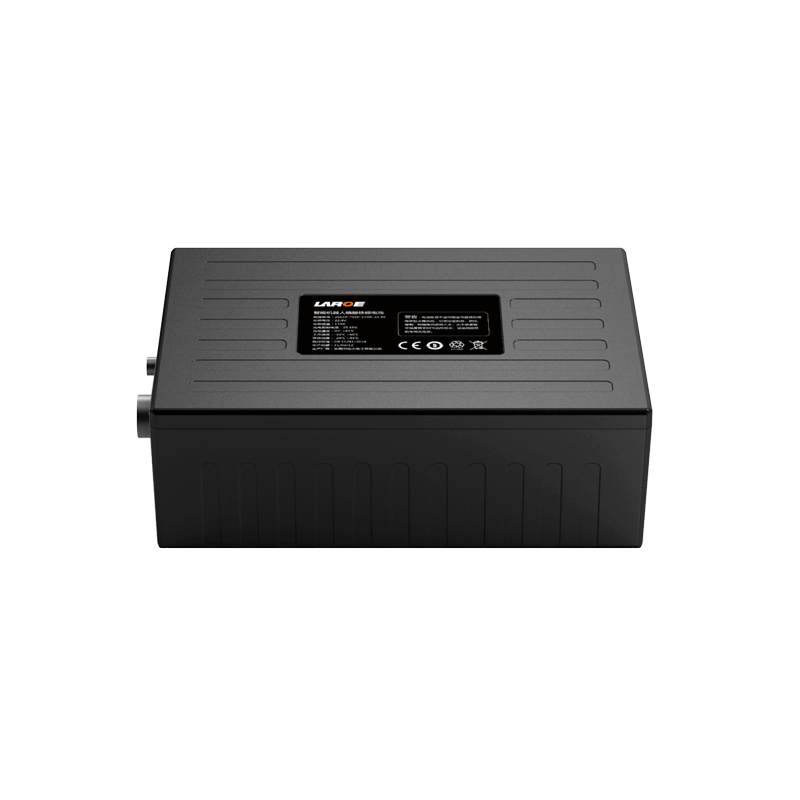

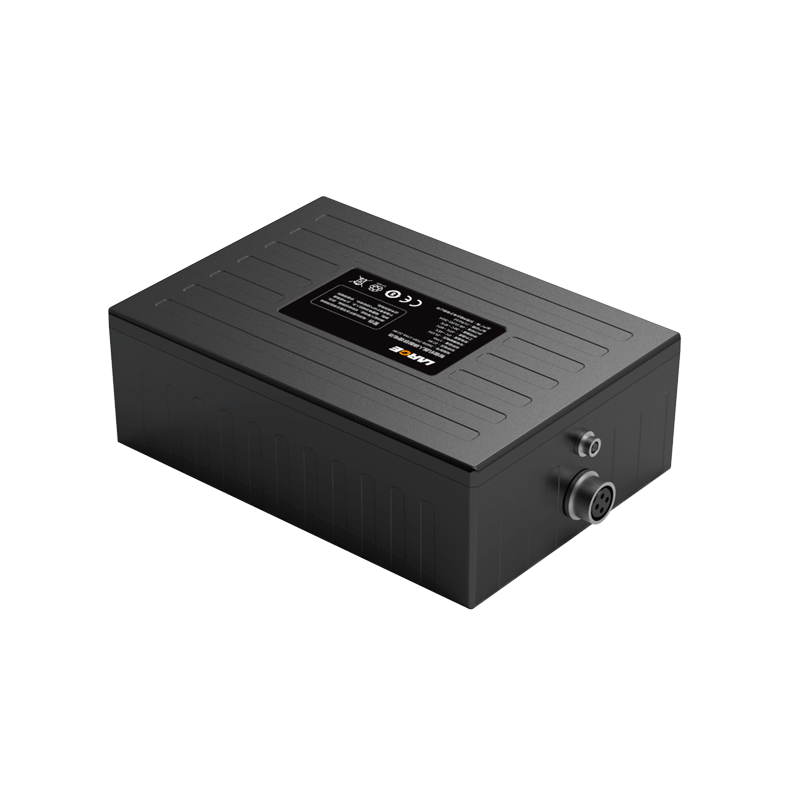

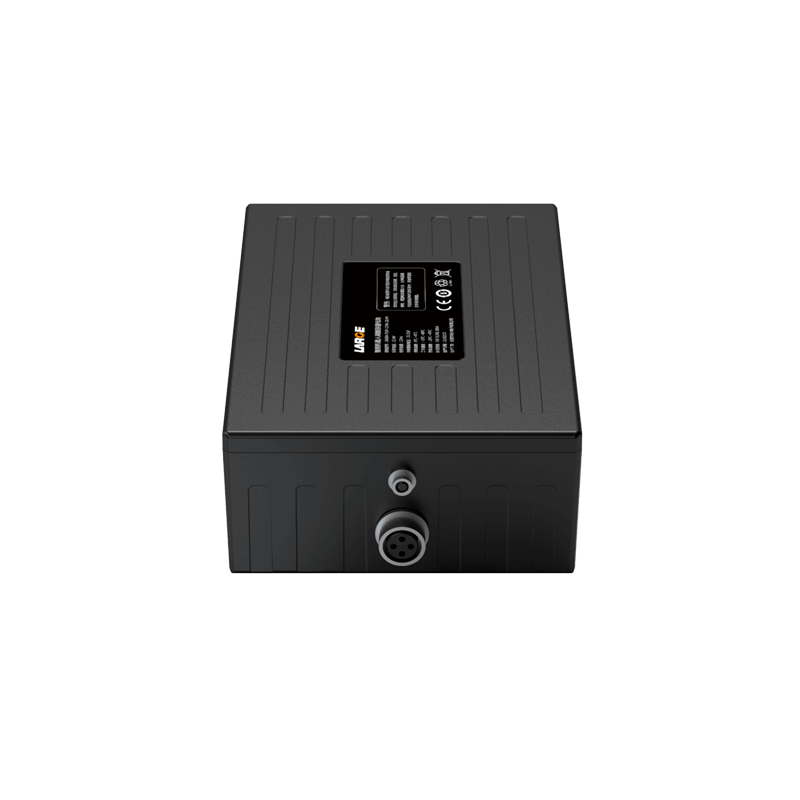

Custom Lithium ion Battery Pack
Product number: 05DQ0055-01
Cell model: 26650/3400mah /3.2V
Battery specification: 26650-7 S5P-17AH-22.4V
Product size: 235*165*78(mm)
Nominal voltage: 22.4V
Nominal capacity: 17Ah
Charging voltage: 25.55V
Charging current: ≤10A
Discharge current: ≤15A
Discharge cut-off voltage: 14V
Finished product internal resistance: ≤150mΩ
Battery weight: 4.2kg
Charging temperature: 0 ~ 55℃
Discharge temperature: -10 ~ 60 ℃
Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+25℃ (less than 12 months)
Battery package: silver plastic case
Output mode: National standard UL wire output
Communication protocol: RS485
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Robotics
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
