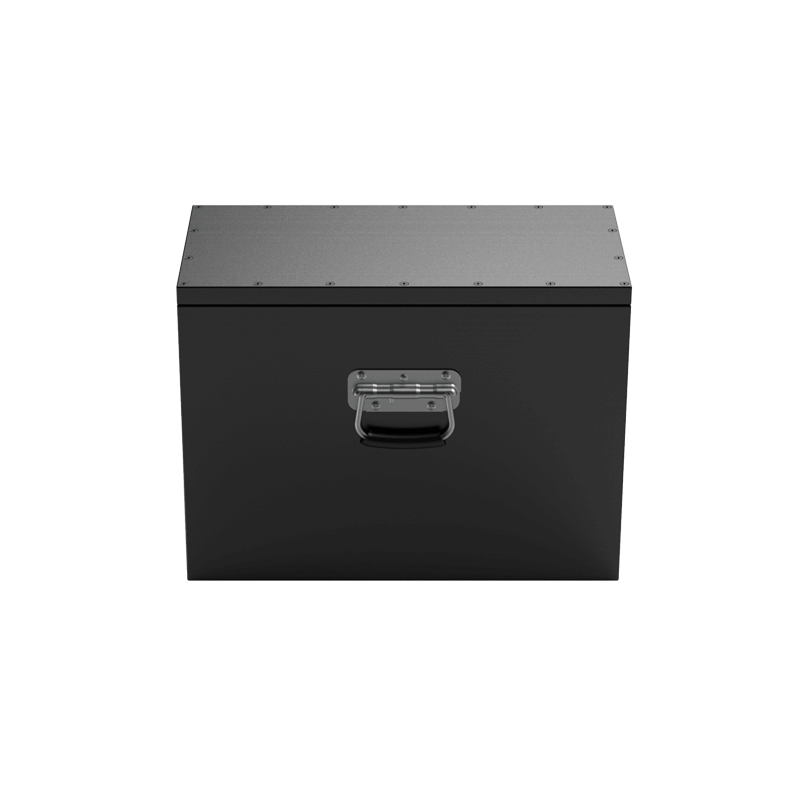

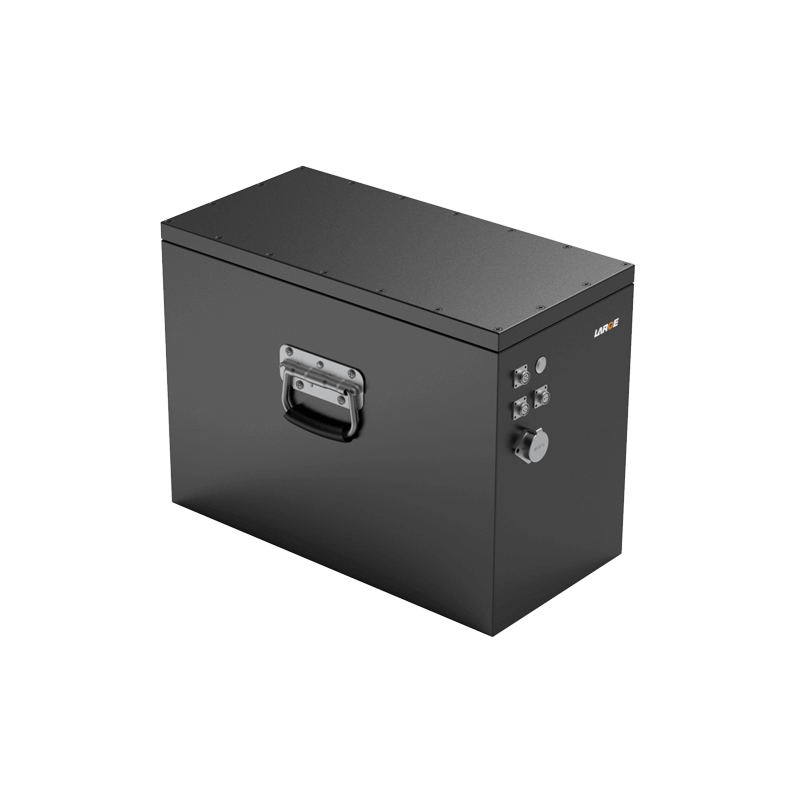

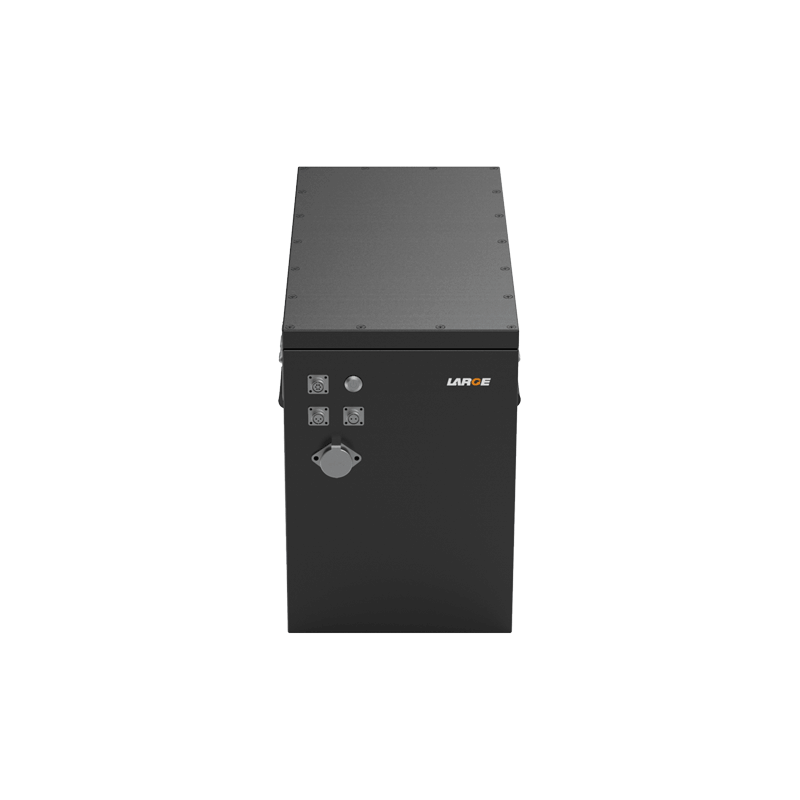

Custom Lithium ion Battery Pack
Product number: 35AQ199-01
Cell model: 26650/4000mah /3.2V
Battery specification: 26650-15S15P/60Ah/48V
Nominal voltage: 48V
Nominal capacity: 60Ah
Charging voltage: 54V
Charging current: ≤6A
Discharge current: ≤50A
Discharge cut-off voltage: 33.73V
Internal resistance of finished product: ≤100mΩ
Battery weight: 33Kg
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 55 ℃
Product size: 412*225*298mm (Max)
Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+25℃ (less than 12 months)
Battery package: black metal case
Communication protocol: CAN
Battery protection: short circuit, over charge, over discharge, over current, over temperature protection, etc.
Application: Monorail detection vehicle
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
