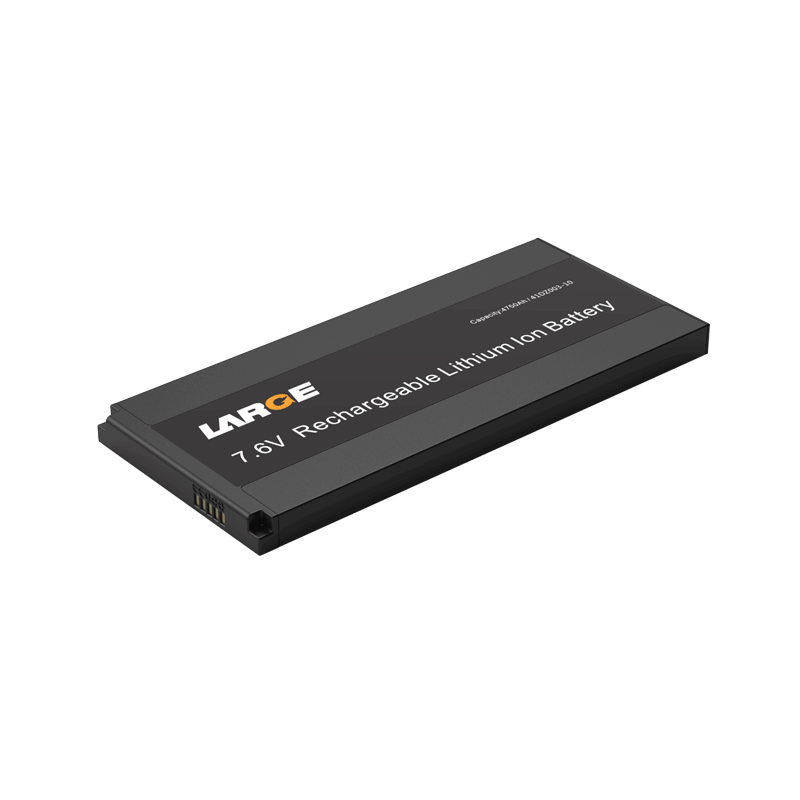

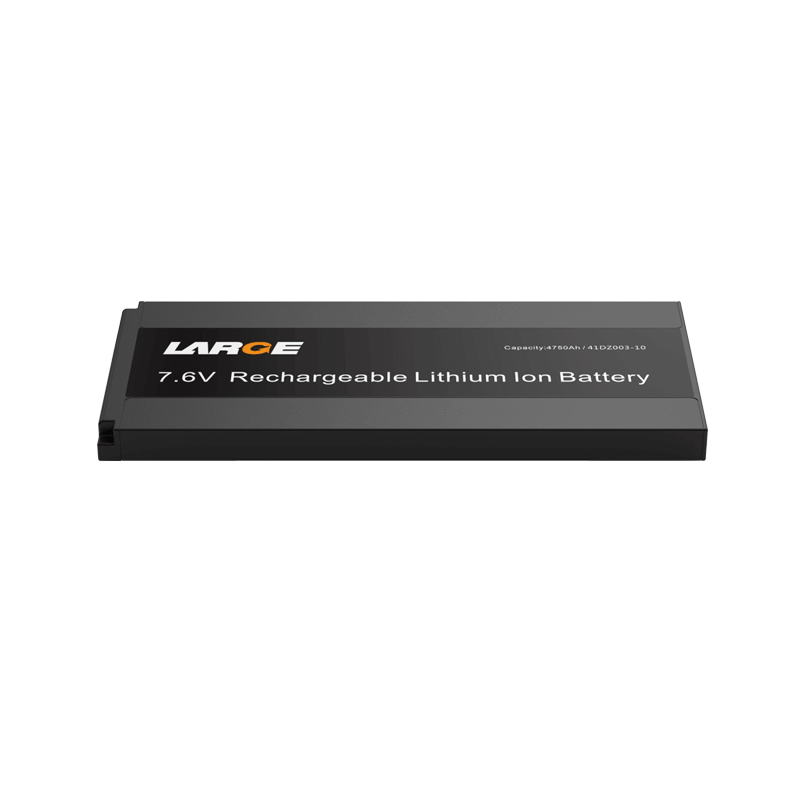

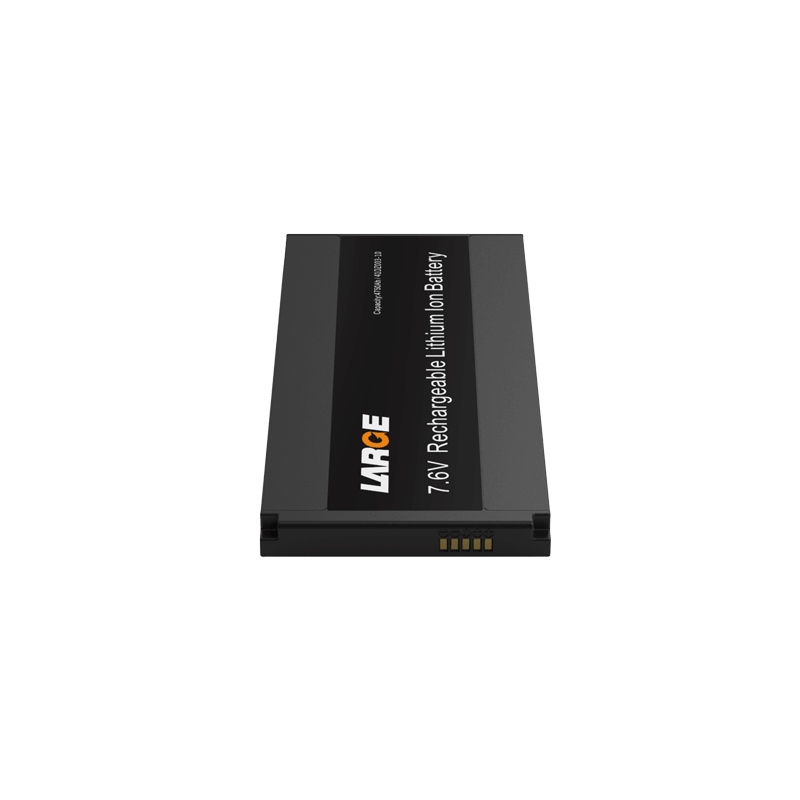

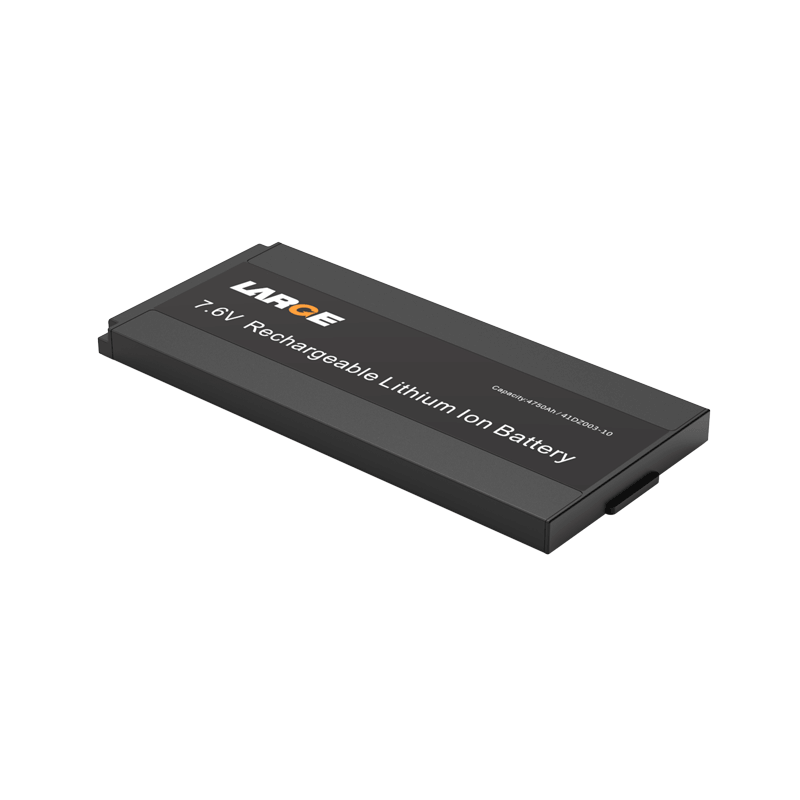

Custom Lithium ion Battery Pack
Product number: 41DZ003-10
Cell model: 3760130PLV-4.35V-4750mah
Battery specifications: 3760130-2S1P/4.75Ah/7.6V
Nominal voltage: 7.6V
Nominal capacity: 4.75Ah
Charging voltage: 8.7V
Charging current: ≤ 2.375A
Discharge current: 2.375A
Instantaneous discharge current: 4.75A
Discharge cut-off voltage: 6V
Product internal resistance: ≤180mΩ
Battery weight: 180G
Product size: 145*65*9(mm)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: -20 to 45 ° C
Battery case: industrial grade
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: auxiliary medical care
Product features
1.Current: The maximum continuously discharging current is 3A.
2.Data communication management: Adopt imported protection chip and MOS, including 10KNTC to transmit temperature changes in real time, and minimize security risks.
3.Features: Use self-developed super-high - capacity polymer cell.
4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
