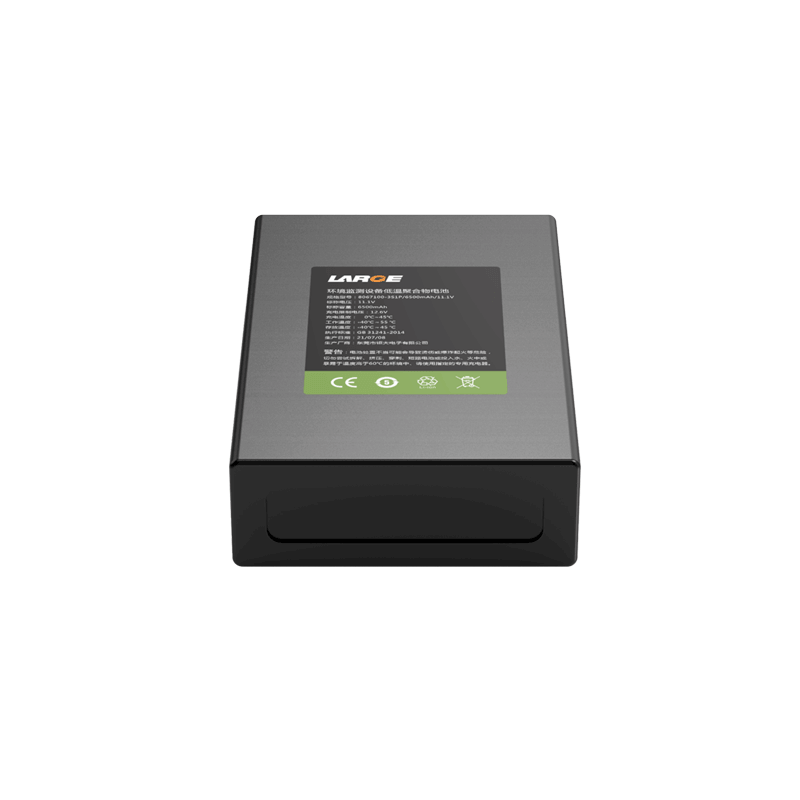

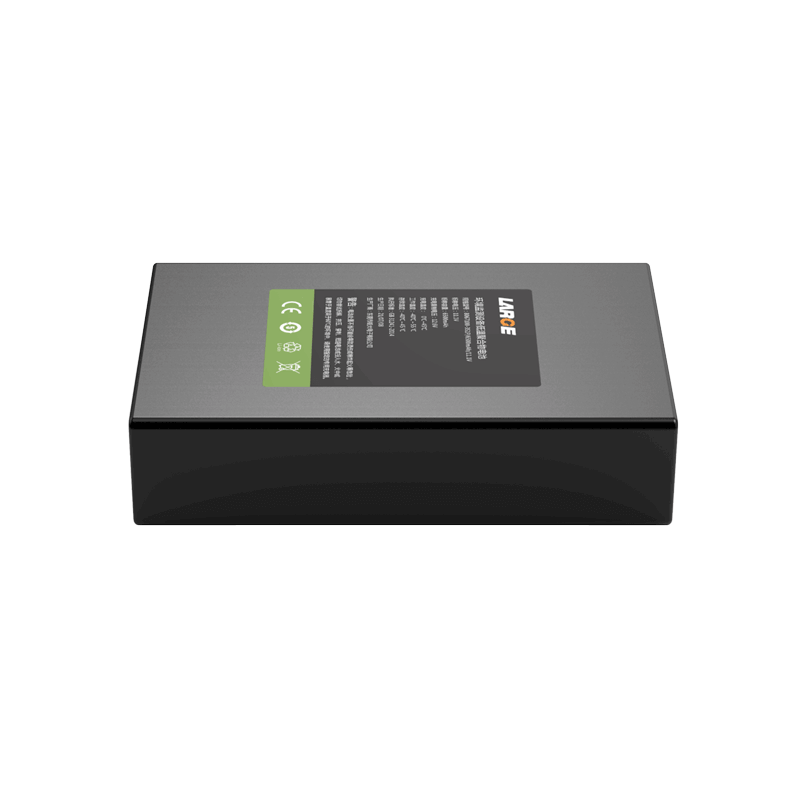

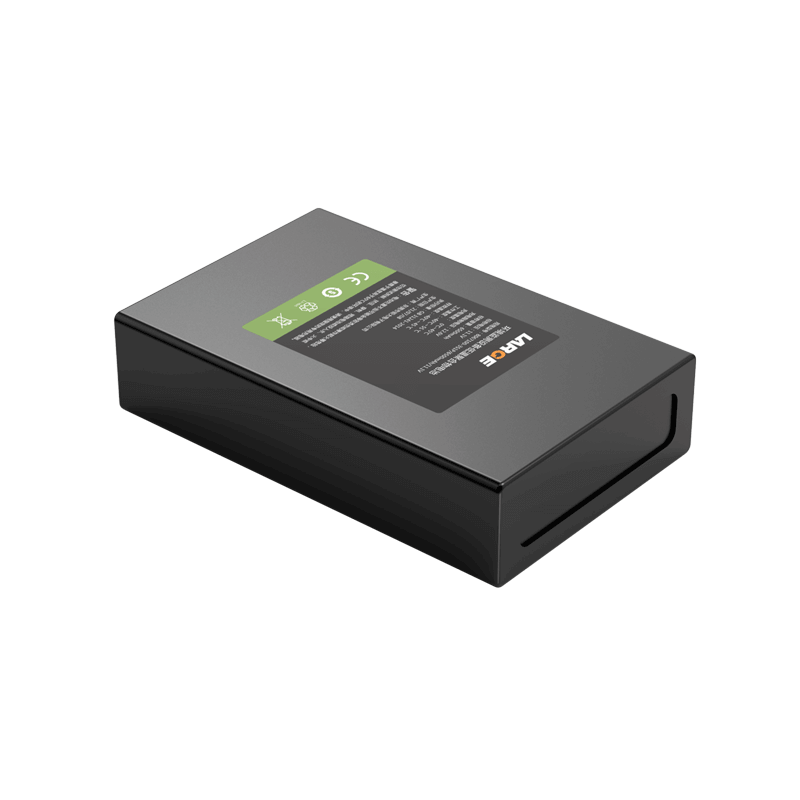

11.1V 6.5Ah Low Temperature Battery for Environmental Monitoring Equipment

Customization | Free Battery Solution

Product Detail

Product number: 39DZ090-02

Cell model: 8067100/6500mah /3.7V

Battery specification: 8067100-3S1P/6500mAh/11.1V

Nominal voltage: 11.1V

Nominal capacity: 6.5Ah

Charging voltage: 12.6V

Charging current: ≤2A

Discharge current: 2A

Instantaneous discharge current: 2A

Discharge cut-off voltage: 7.5V

Internal resistance: ≤250mΩ

Battery weight: 380g

Product size: length 107mm*68mm*24.8mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -20 to 45 ° C

Battery case: PVC

Lithium battery protection: short circuit, overcharge, overdischarge, overcurrent protection, equalization, SUMbus communication, etc.

Application: monitoring equipment

Product features

1.Static current: The maximum discharging time can be 2A.

2.Digital communication management, which features imported software management chips and SUNBUS communication functions, ensures precise data transmission and temperature control, eliminating security risks to the maximum.

3.Features: A self-developed ultra-high capacity polymer cell, which charges at -40C, allows users to spend energy on a solar system.

4.Battery cycle life is high, in line with low carbon, energy saving, environmental protection values;
