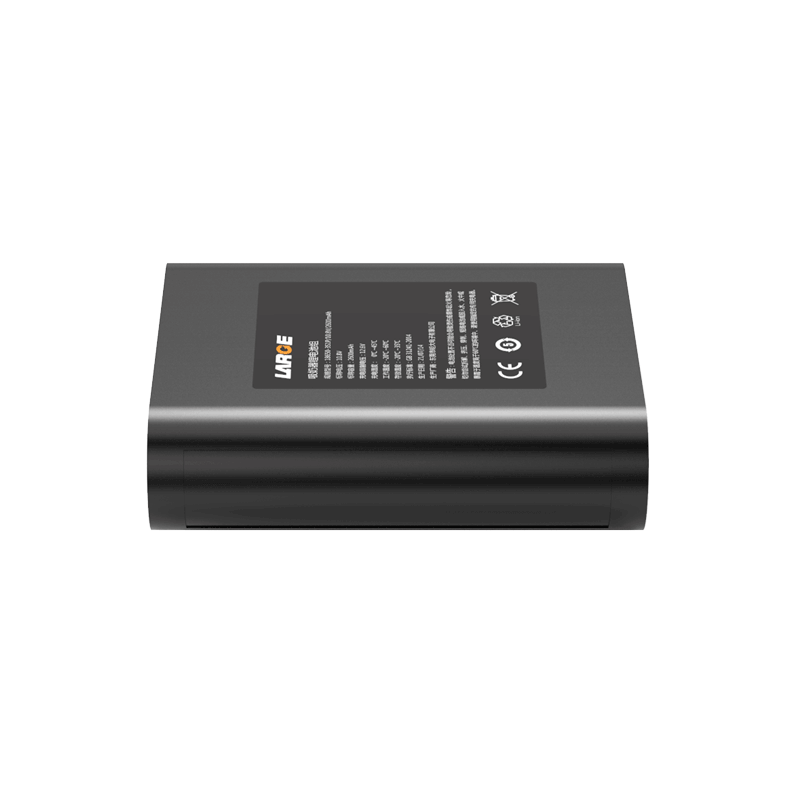

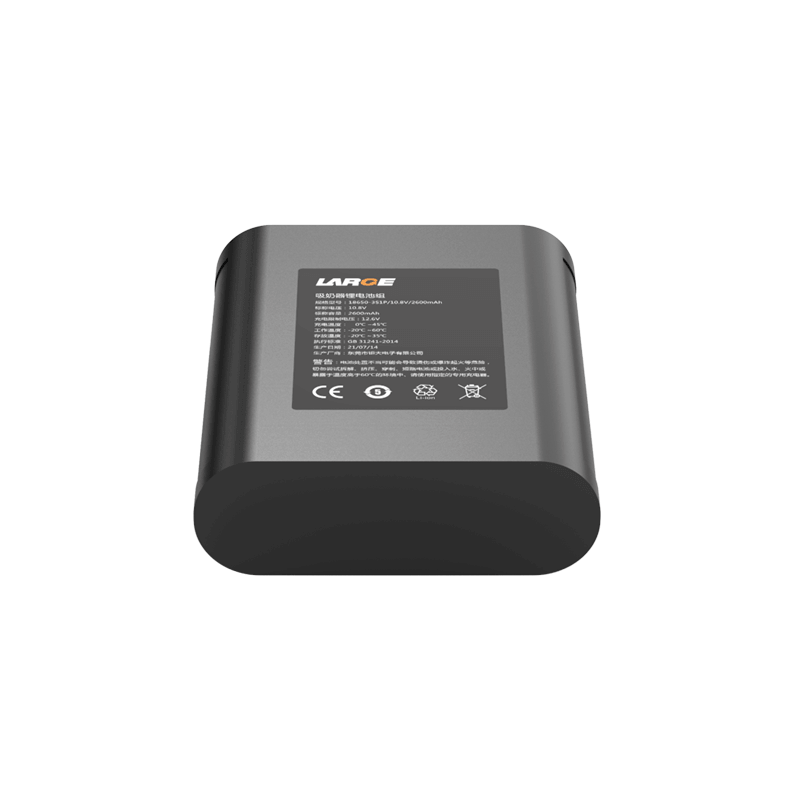

Custom Lithium ion Battery Pack
Product number: 01WQ0030-01TA
Cell model: 18650/3.6V/2600mAh
Battery specification: 18650-3S1P/10.8V/2600mAh
Nominal voltage: 10.8V
Nominal capacity: 2600mAh
Charging voltage: 12.6V
Charging current: ≤3A
Discharge current: 2A
Instantaneous discharge current: 3A
Discharge cut-off voltage: 8.1V
Internal resistance of finished product: ≤350mΩ
Battery weight: 0.2kg
Product size: 70*57.5*20mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery case: PVC soft bag
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: portable equipment, medical equipment
