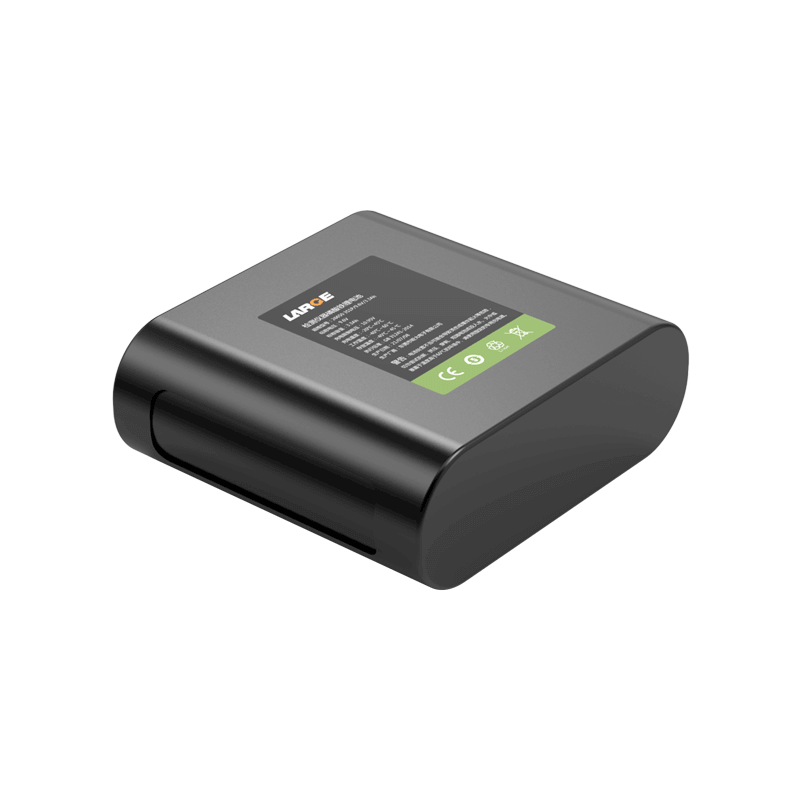

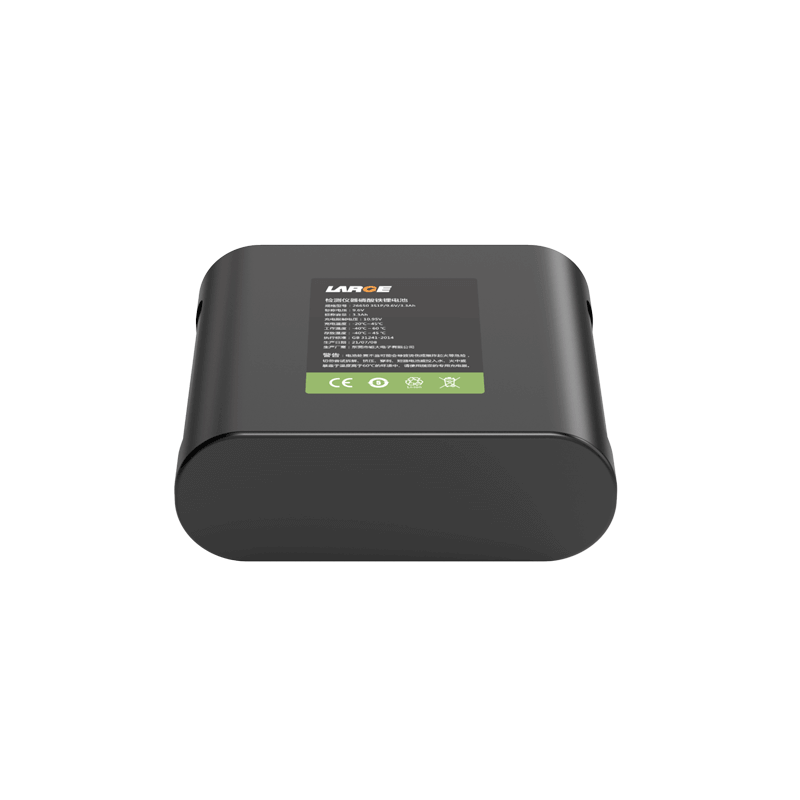

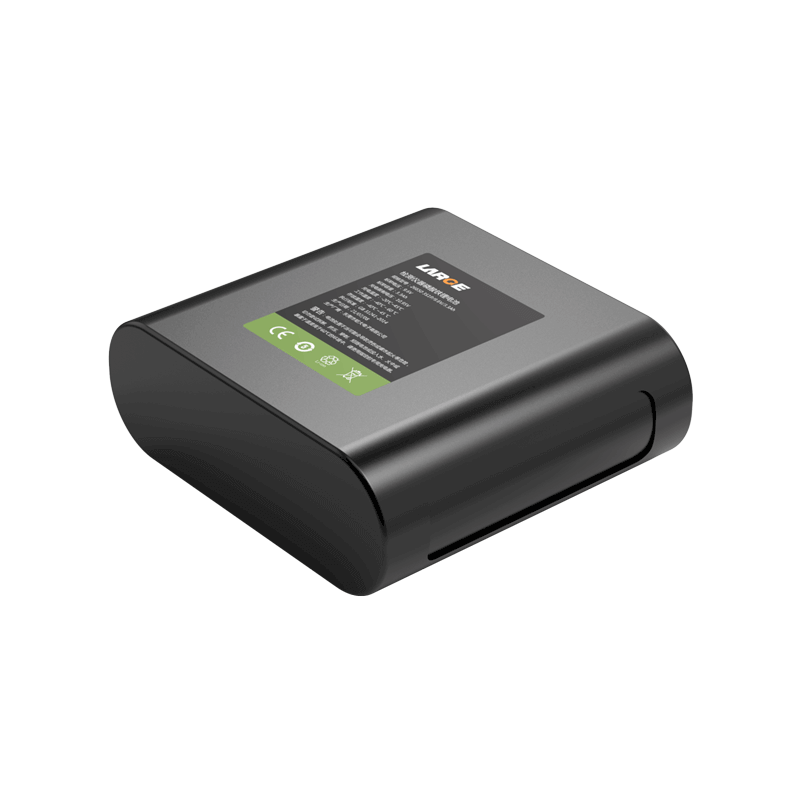

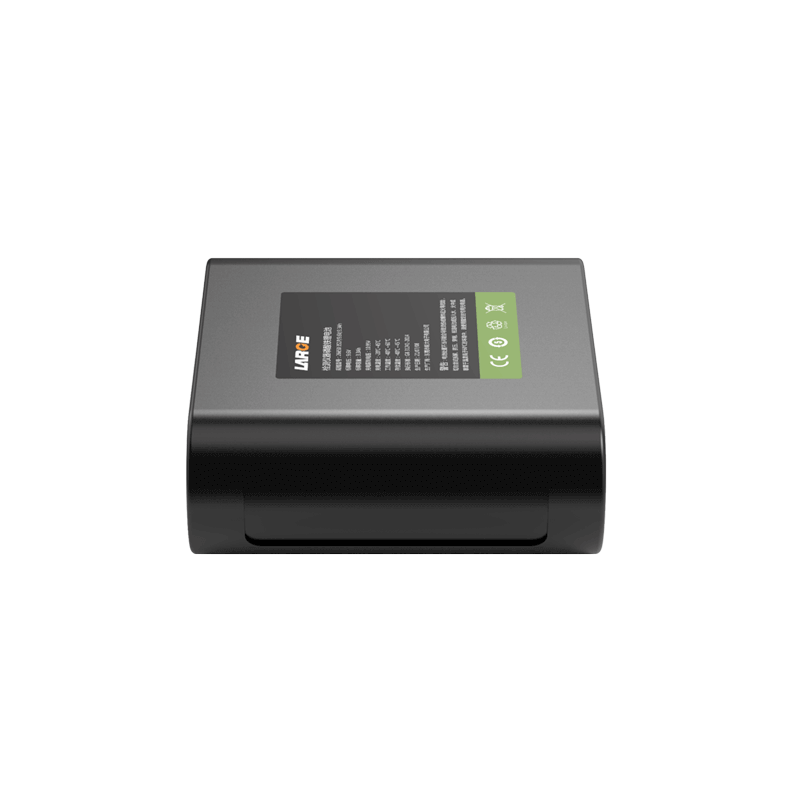

Custom Lithium ion Battery Pack
Production number 33DZ031-01
Cell type: 26650/3.2V/ 3.3AH
Battery specification: 26650 3S1P/9.6V/3.3Ah
Nominal voltage: 9.6V
Nominal capacity: 3.3Ah
Charging voltage: 10.95V
Charging current: ≤1.65A
Discharge current: ≤2A
Instantaneous discharge current: 4-10A
Discharge cut-off voltage: 6V
Internal resistance: ≤250mΩ
Battery weight: 300G
Product size: 82*75*28 mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -40 ° C to 45 ° C
Battery case: PVC package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, charging over current protection, discharge over current protection, etc.
Application: Instrumentation, industrial equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
