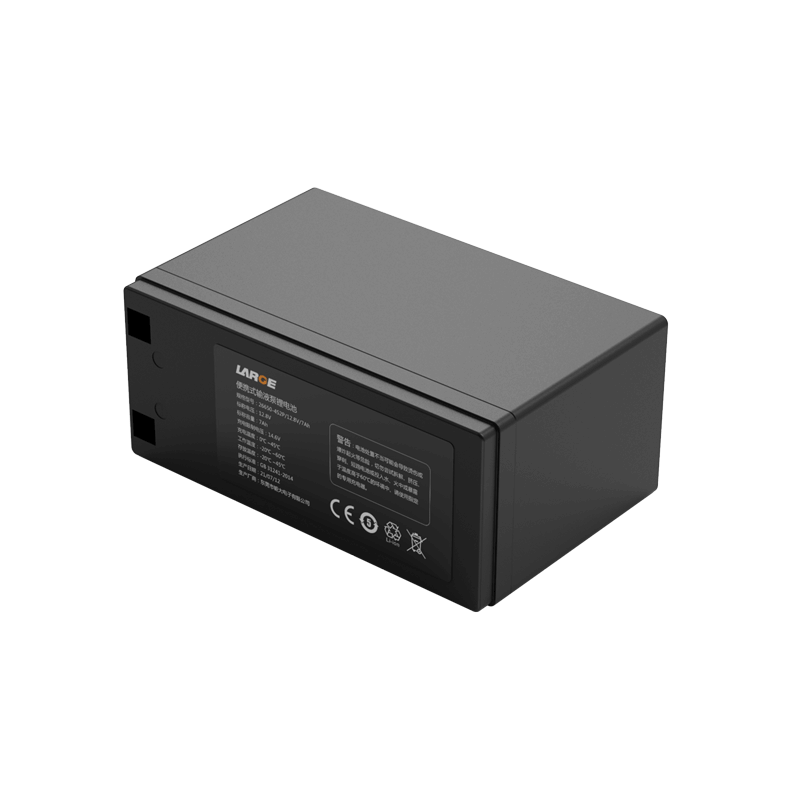

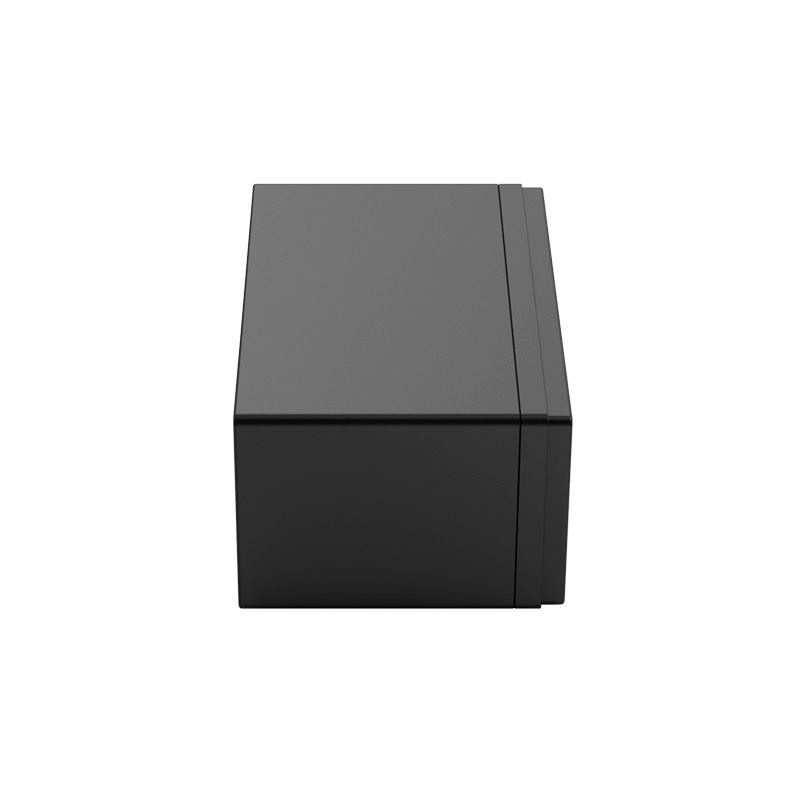

Custom Lithium ion Battery Pack
Project number: 33DZ023-02
Cell type: 26650/3.2V/ 3.6AH
Battery specification: 26650-4S2P/12.8V/7Ah
Nominal voltage: 12.8V
Nominal capacity: 7Ah
Charging voltage: 14.6V
Charging current: ≤ 3.6a
Discharge current: ≤4A
Instantaneous discharge current: 4-10A
Discharge cut-off voltage: 10V
Product internal resistance: ≤240mΩ
Battery weight: 780 GB
Product size: 151*66*96mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 45 ° C
Battery case: plastic case
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, charging overcurrent protection, discharge overcurrent protection, overtemperature
Application: Backup power supply for receiver and transmitter
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
