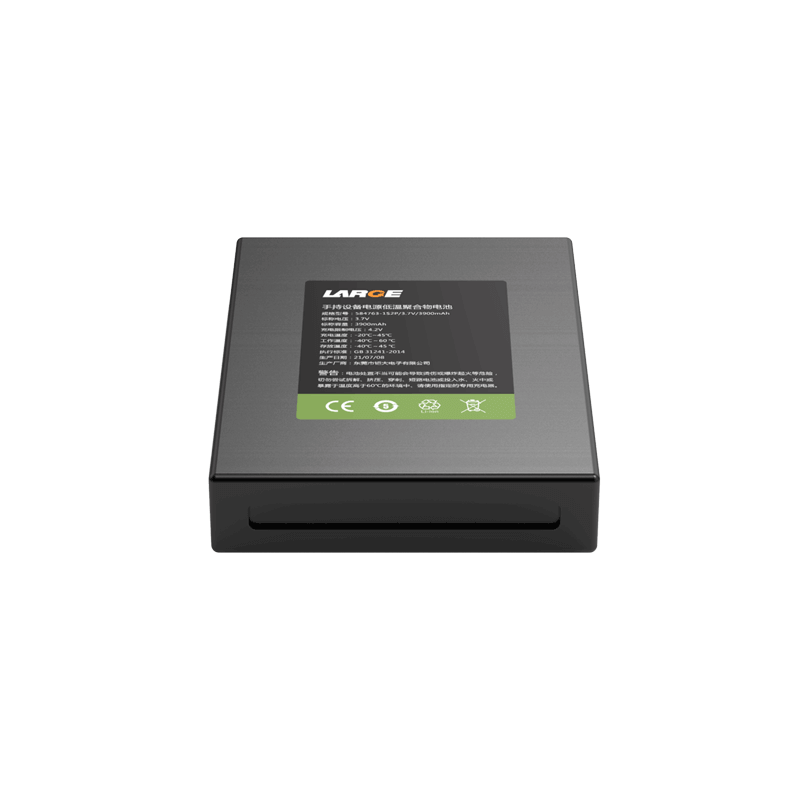

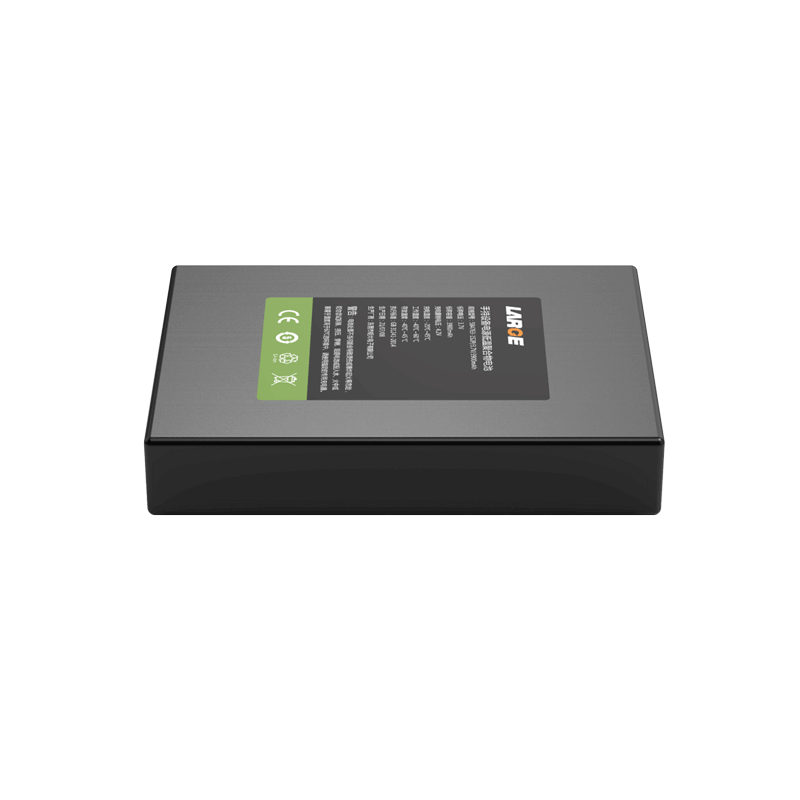

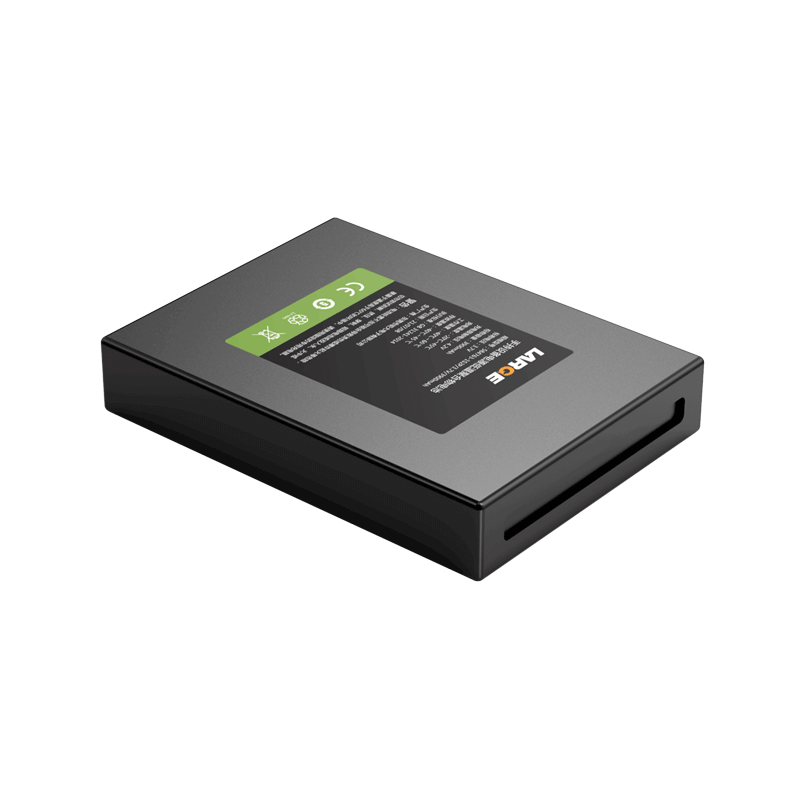

Custom Lithium ion Battery Pack
Product number:33DZ030-02
Cell model: 584763/3.7V/1950mAh
Battery specification: 584763-1S2P/3.7V/3900mAh
Nominal voltage: 3.7V
Nominal capacity: 3900mAh
Charging voltage: 4.2V
Charging current: ≤1.9A
Discharge current: ≤1.9A
Instantaneous discharge current: 3-6A
Discharge cut-off voltage: 2.5V
Finished product internal resistance: ≤150mΩ
Battery weight: 89G
Product size: 12*50*68mm (Max)
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -40 ° C to 45 ° C
Battery shell: Polymer battery plus board out of the cable
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Power supply for handheld devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
