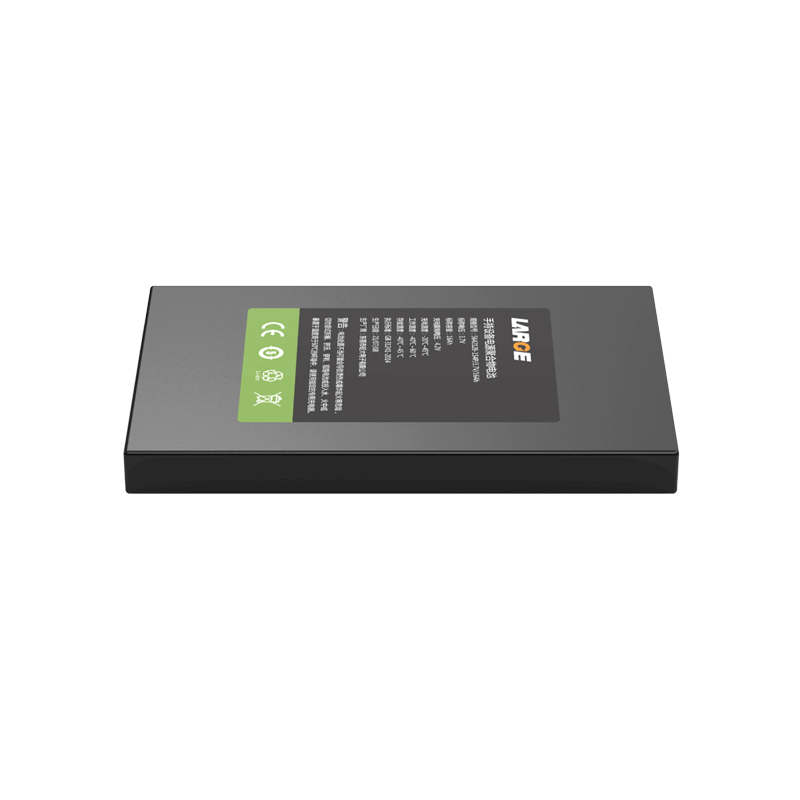

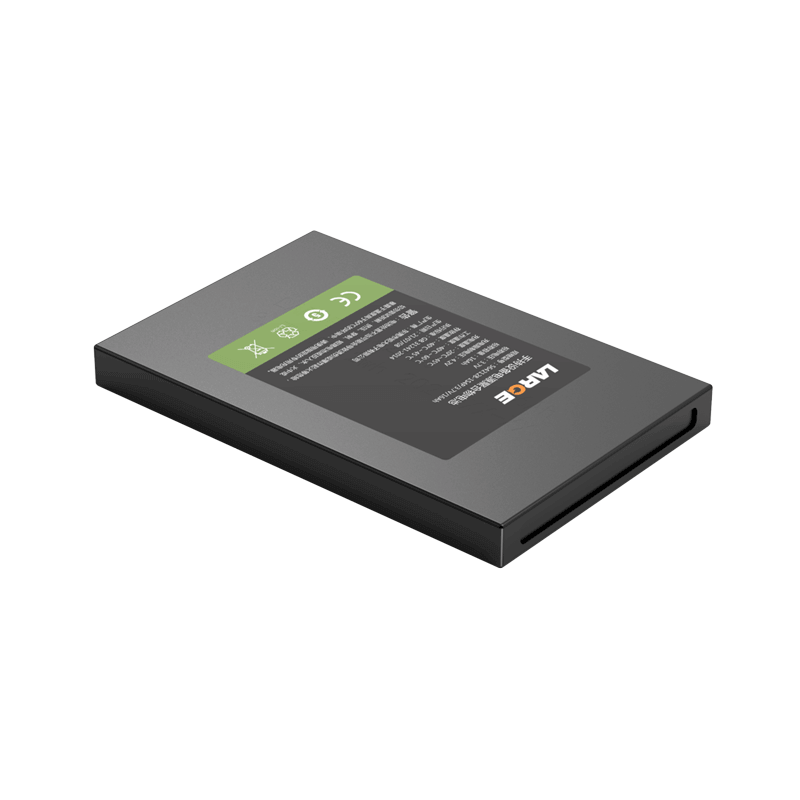

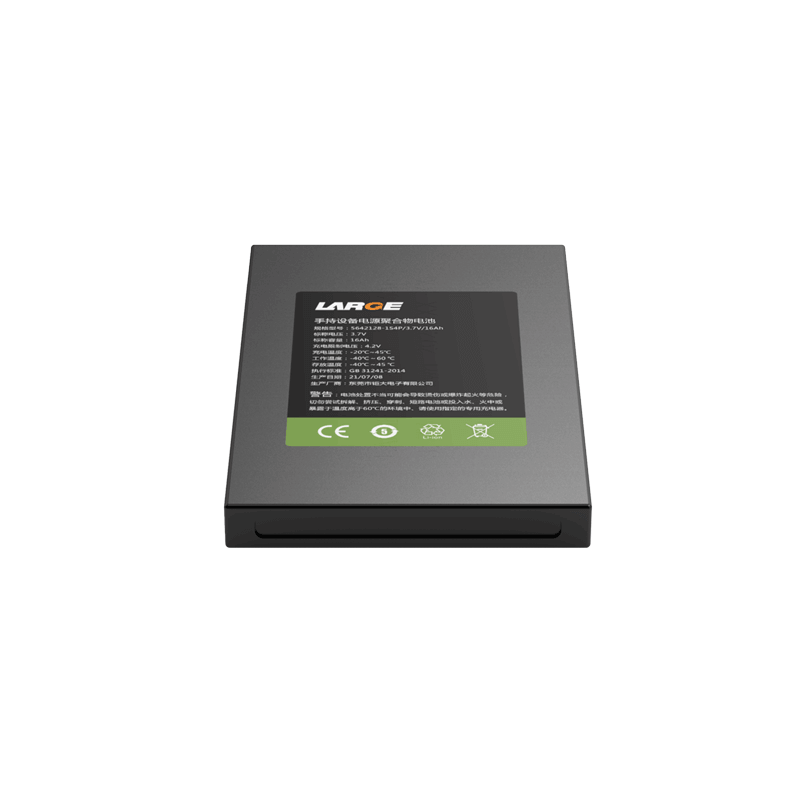

Custom Lithium ion Battery Pack
Project number: 37DZ086-01
Cell model: 5642128/3.7V/4050mAh
Battery specifications: 5642128-1S4P/3.7V/16Ah
Nominal voltage: 3.7V
Nominal capacity: 16Ah
Charging voltage: 4.2V
Charging current: ≤5A
Discharge current: ≤5A
Instantaneous discharge current: 6-12A
Discharge cut-off voltage: 2.5V
Finished product internal resistance: ≤150mΩ
Battery weight: 200G
Product size: 12*86* 132.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -40 ° C to 45 ° C
Battery shell: Polymer battery plus board out of the cable
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Power supply for handheld devices
