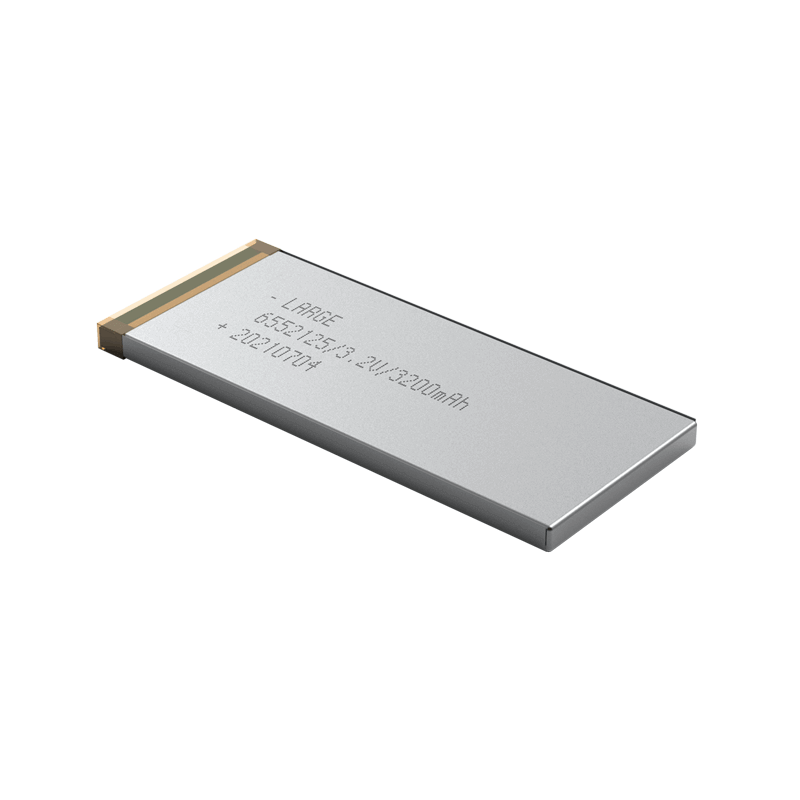

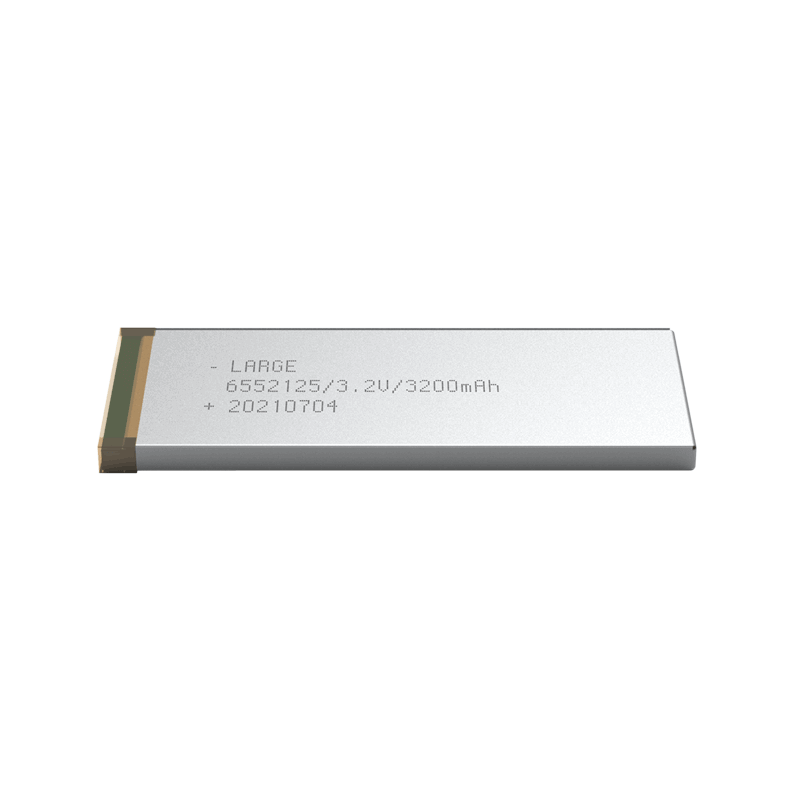

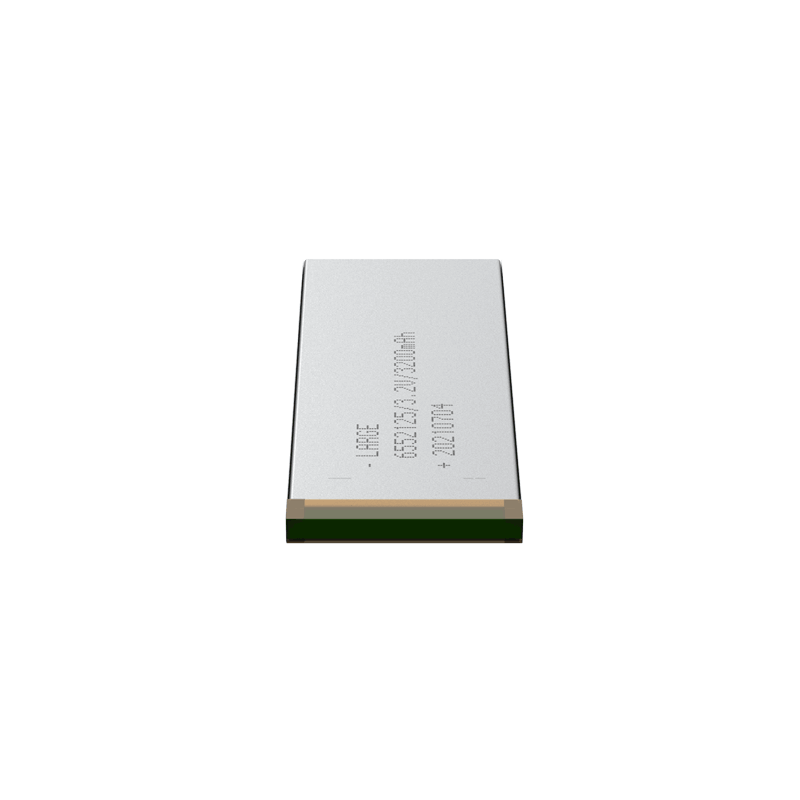

Custom Lithium ion Battery Pack
Product number:37DZ076-02
Cell model: 6252125/3.2V/3200mAh
Battery specification: 6552125-1S1P/3.2V/3200mAh
Nominal voltage: 3.2V
Nominal capacity: 3200mAh
Charging voltage: 3.65V
Charging current: ≤ 2.5a
Discharge current: 3A
Instantaneous discharge current: 5-12A
Discharge cut-off voltage: 2.0V
Finished product internal resistance: ≤110mΩ
Battery weight: 78G
Product size: 6.5*54*132mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 45 ° C
Battery shell: Polymer battery plus board out terminal wire
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: access control power battery
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
