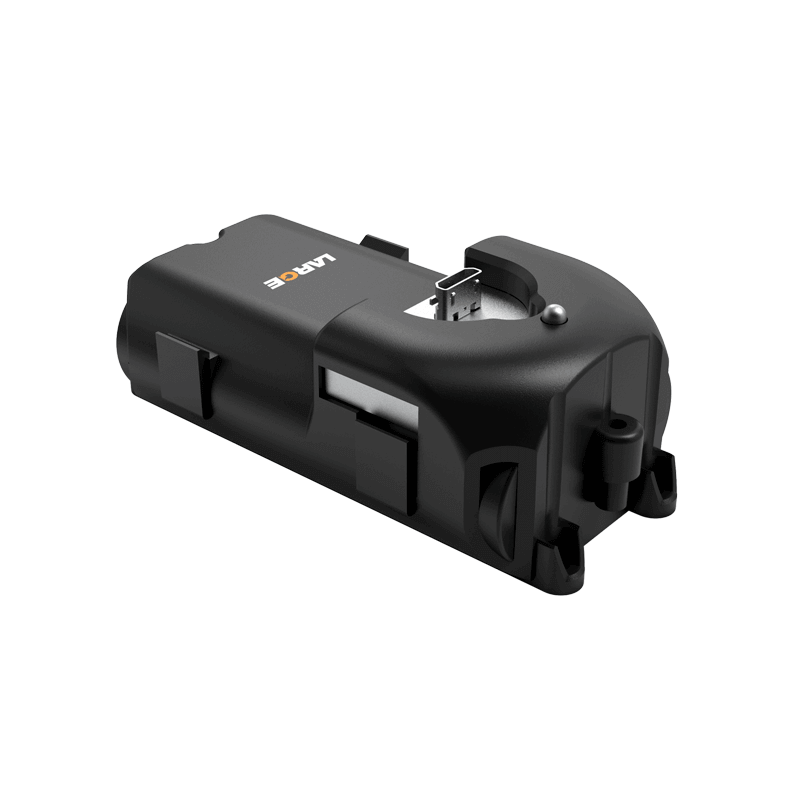

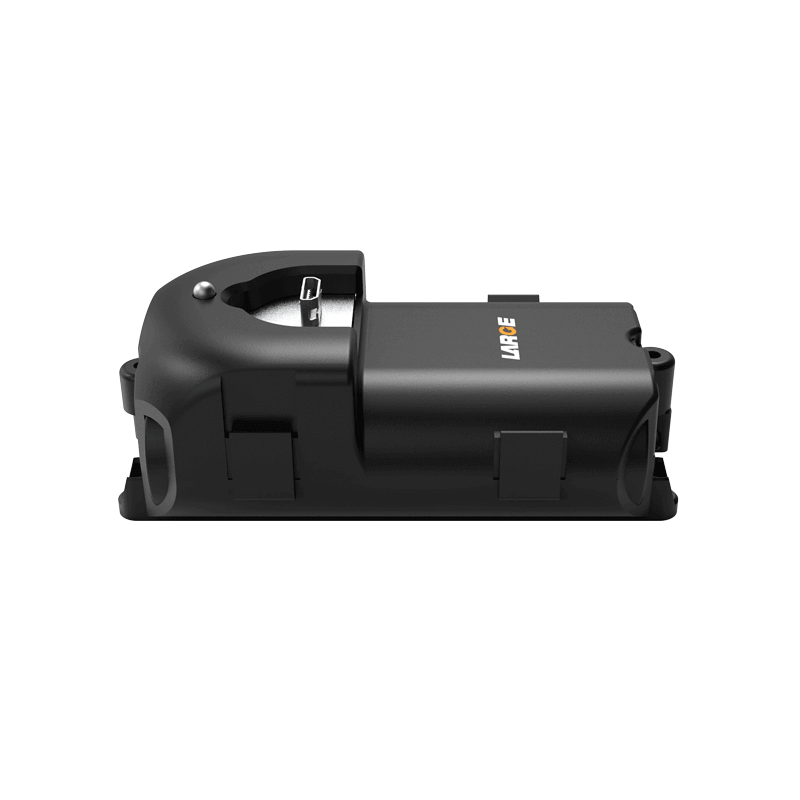

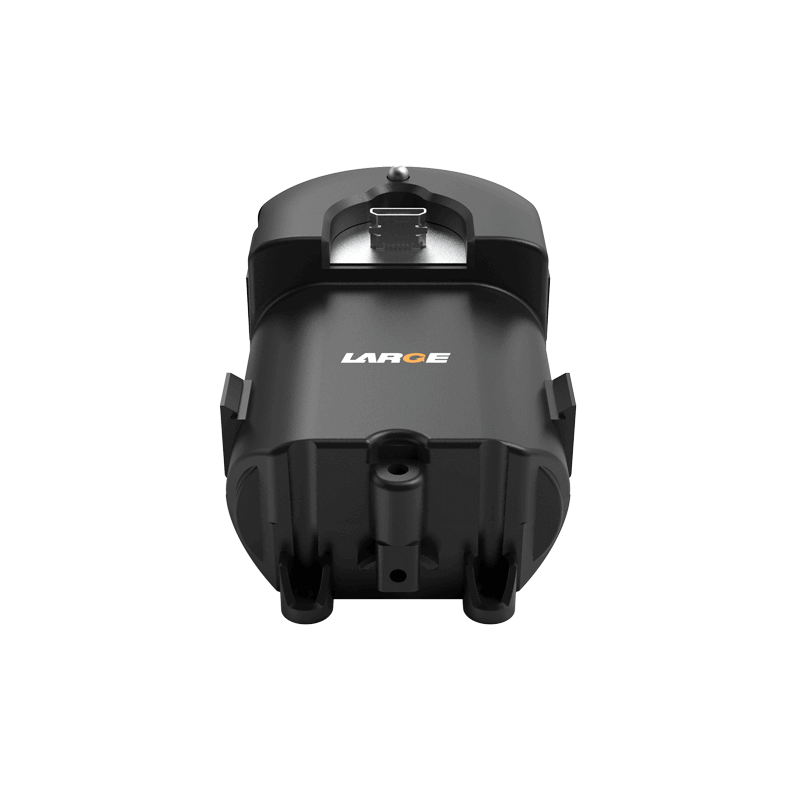

18650 3.6V 5200mAh Ternary Battery for Monitoring Equipment

Customization | Free Battery Solution

Product Detail

Project number: 01DQ0040-19T

Cell model: 18650/2600mah /3.6V

Battery specification: 18650/1S2P/5200mAh/3.6V

Nominal voltage: 3.7V

Nominal capacity: 5200mAh

Charging voltage: 5V to 4.2V charging

Charging current: ≤ 2.5a

Discharge current: 2.5a

Instantaneous discharge current: 9A

Discharge cut-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 130G

Product size: 28.55*40*73.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 25 ° C

Battery case: ABS+PC

Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, USB charging and so on

Application: Security monitoring
