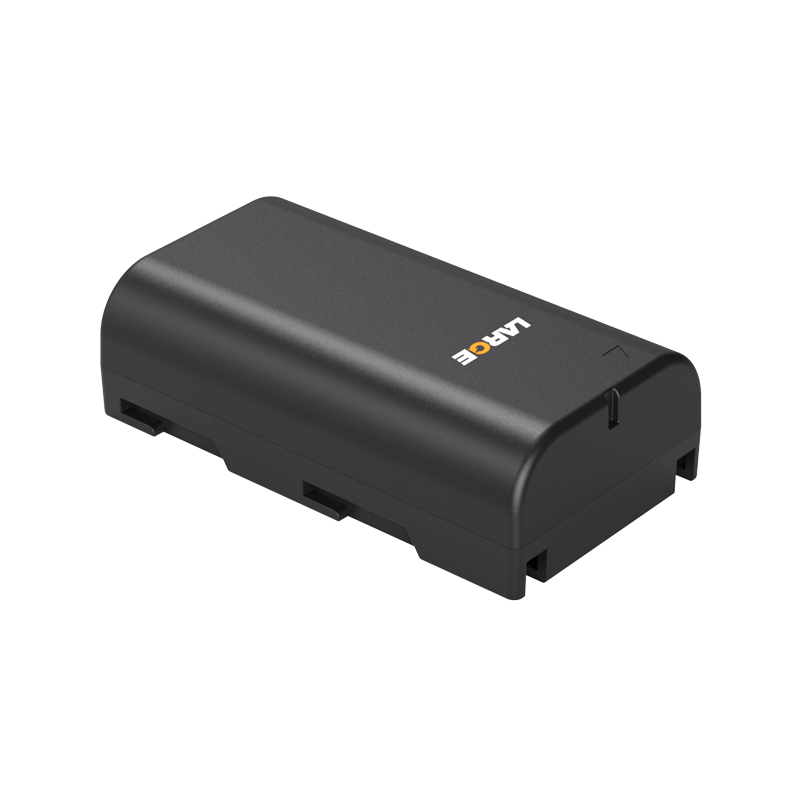

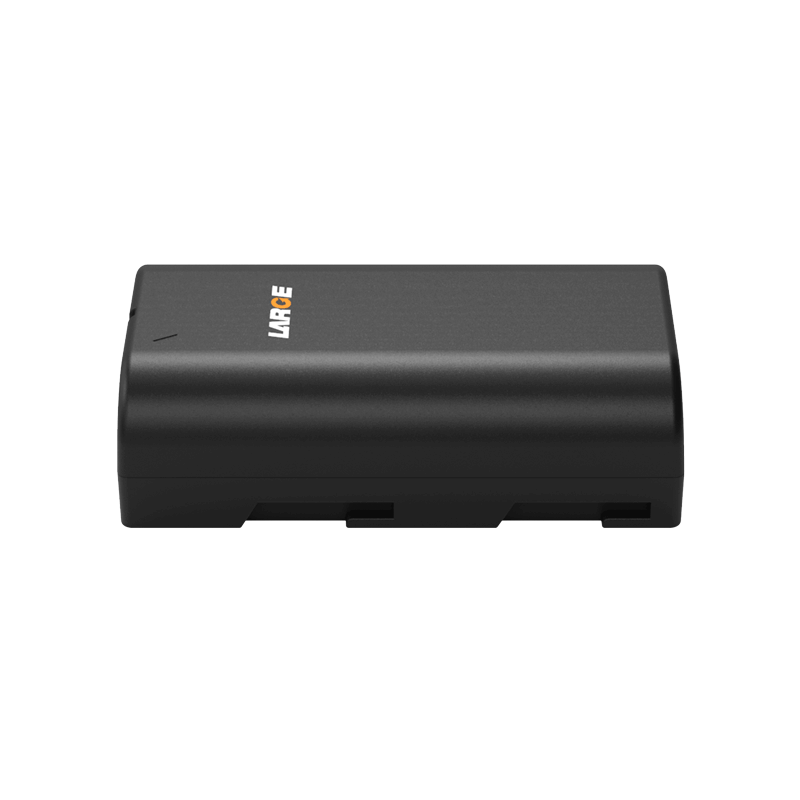

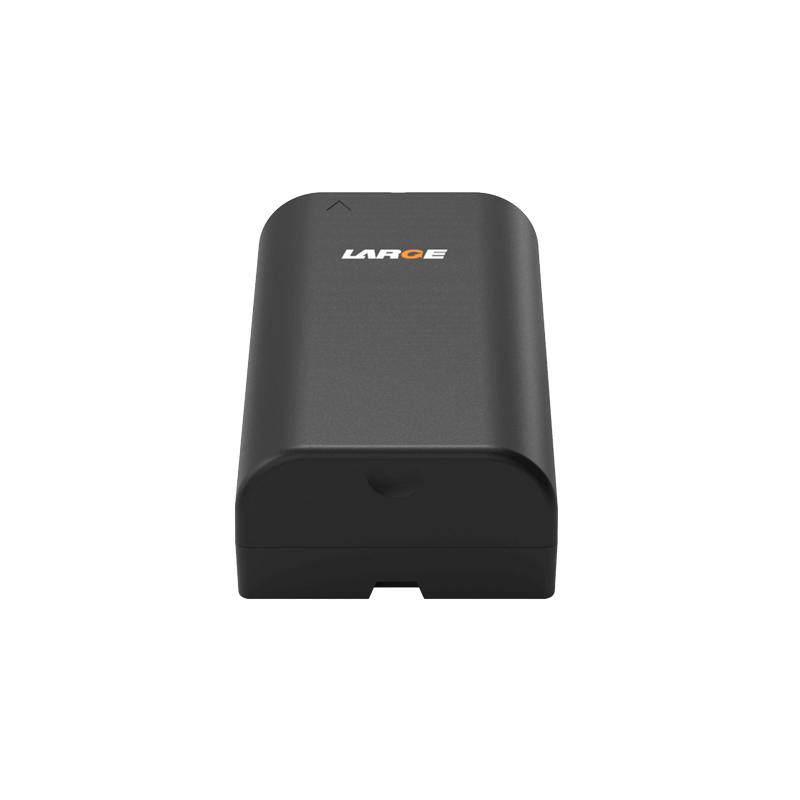

Custom Lithium ion Battery Pack
Project number: 05BQ1412-08
Cell model: 18650/3350mah /3.6V
Battery specification: 18650/2S1P/3350mAh/7.2V
Nominal voltage: 7.2V
Nominal capacity: 3350mAh
Charging current: ≤2.0A
Discharge current: 4.5A
Instantaneous discharge current: 6A
Discharge cut-off voltage: 5.0V
Product internal resistance: ≤200mΩ
Battery weight: 130G
Product size: 20.8*38.7*70.45mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ° C to 20 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: surveying and mapping industry
