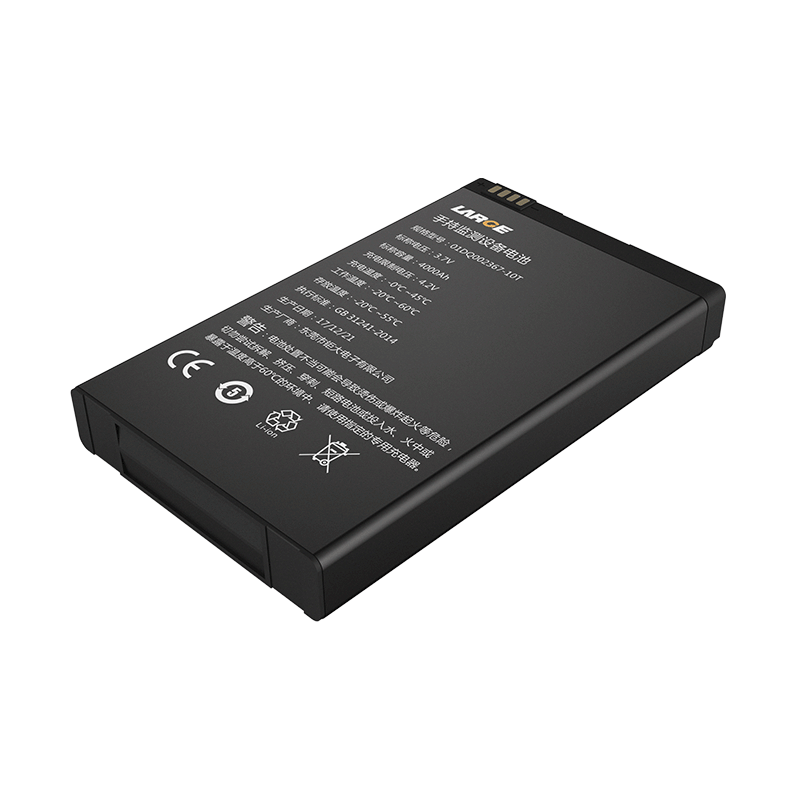

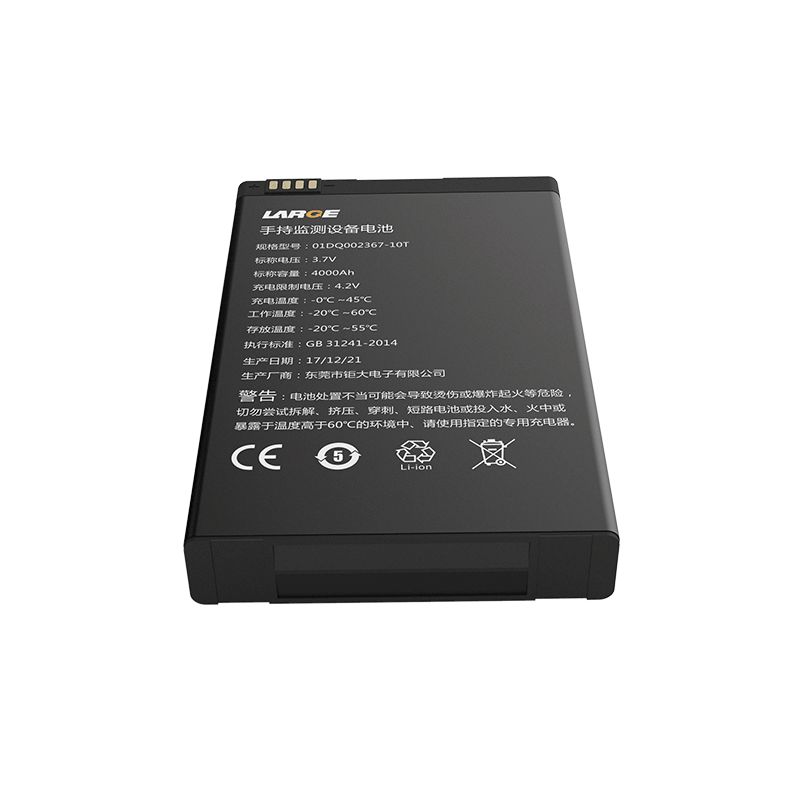

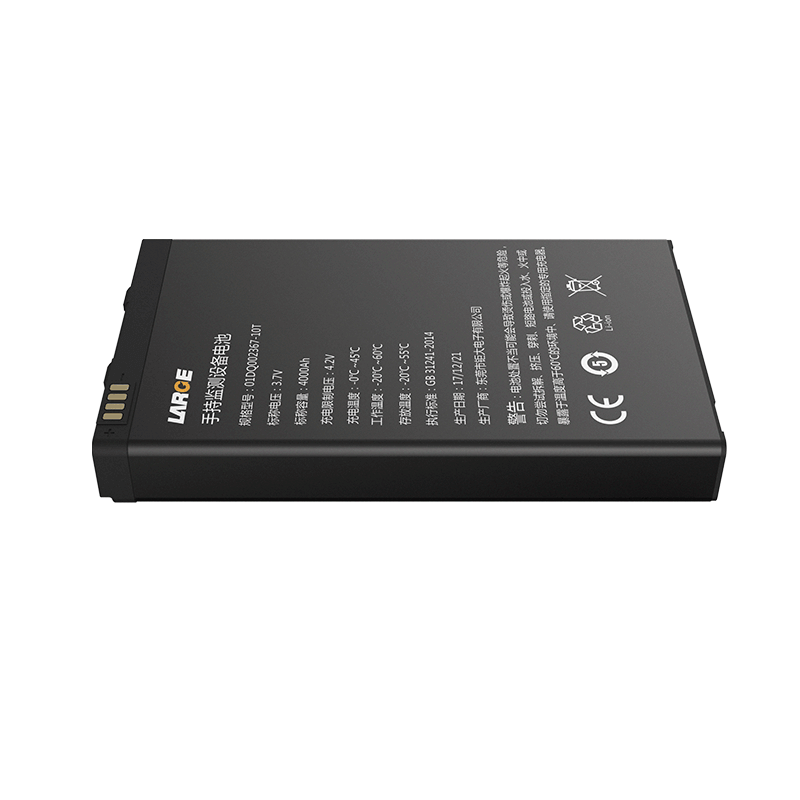

954674 3.7V 4000mAh Lithium Ion Battery for Handheld Monitoring Facility

Product number: 01DQ0023-10T

Cell model：954674/4000mAh/3.7V

Battery specification: 954674/4000mAh/3.7V(plastic frame)

Nominal voltage：3.7V

Nominal capacity：4000mAh

Charging voltage: 4.2V

Charging current: ≤4000mA

Discharging current: ≤4000mA

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: about 95g

Product dimension: 80.5*49.5*10.8mm

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection, discharge short circuit protection, I2C communication

Application field: Handheld monitoring facility
