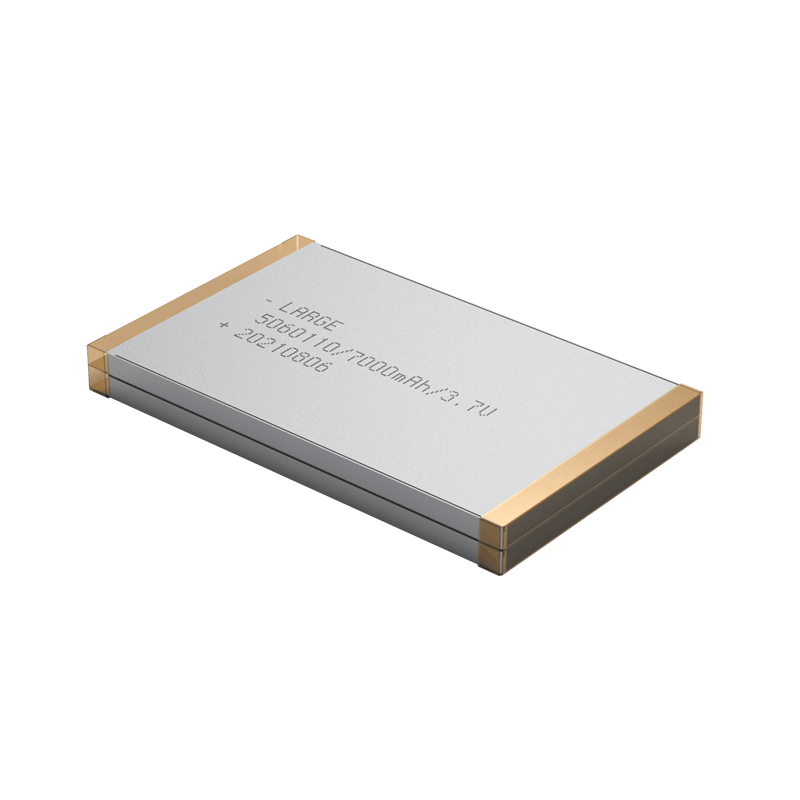

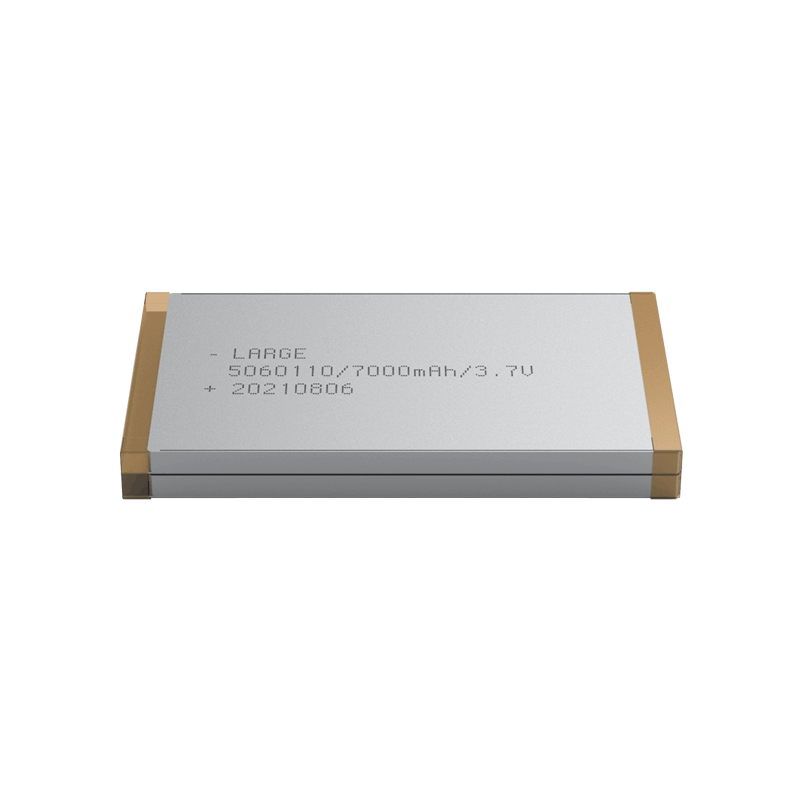

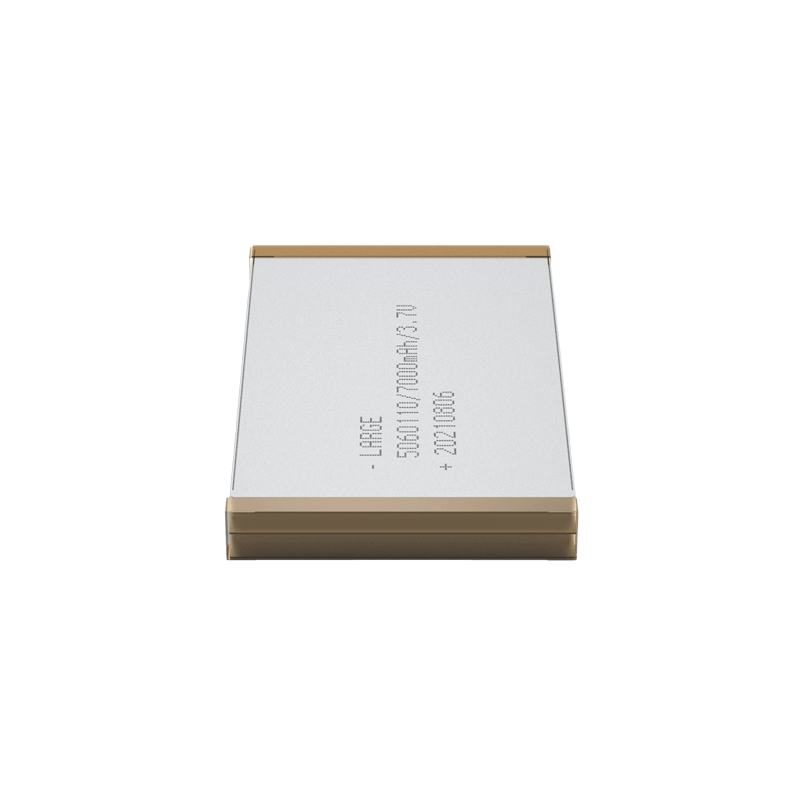

Custom Lithium ion Battery Pack
Project number: 02DQ0027-06
Cell model: 495999/3500mah /3.7V
Battery specification: 5060110/1 s2p / 7000 mah / 3.7 V
Nominal voltage: 3.7V
Nominal capacity: 7000mAh
Charging voltage: 4.2V charging
Charging current: ≤3.5A
Discharge current: 3.5A
Instantaneous discharge current: 7.0A
Discharge cut-off voltage: 3.0V
Product internal resistance: ≤200mΩ
Battery weight: 120G
Product size: 9.6*59.3*100mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: 0 to 25 ° C
Battery case: /
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Medical laryngoscope
