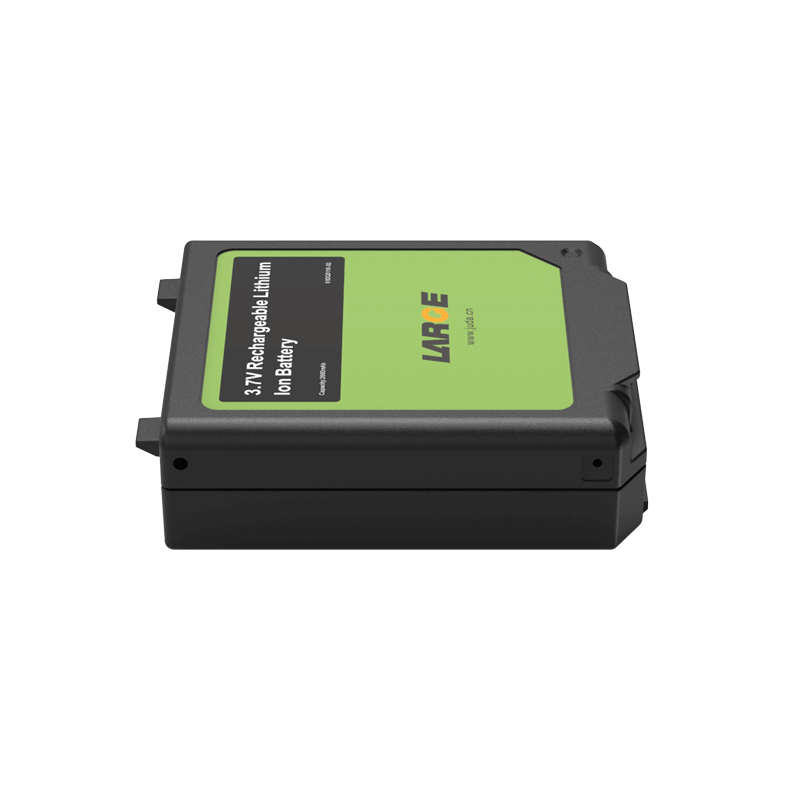

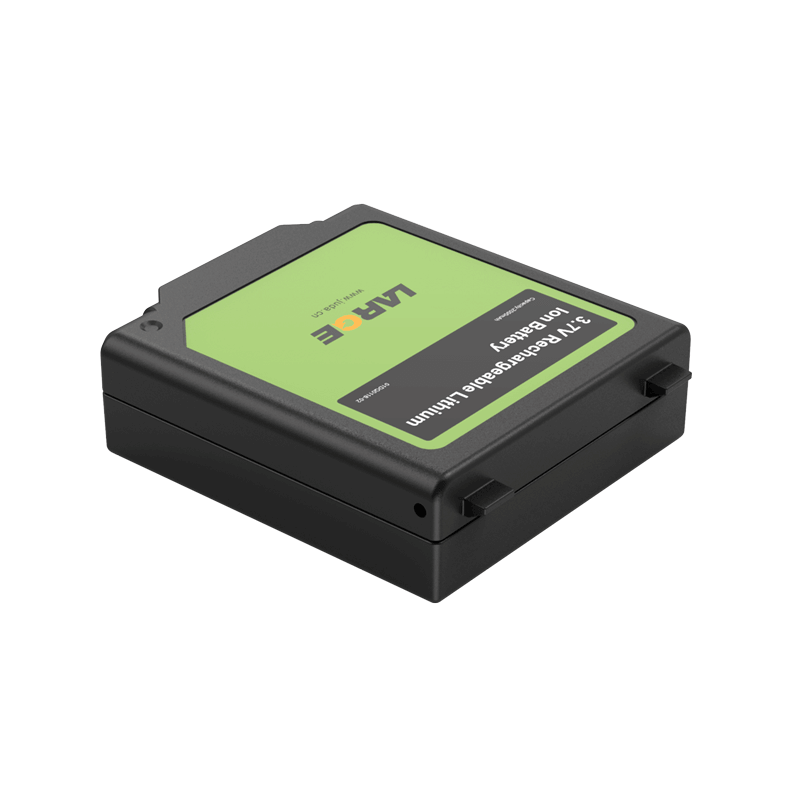

Custom Lithium ion Battery Pack
Project number: 01DQ0116-02
Cell model: NCR103443/2000mAh/3.7V
Battery specification: NCR103443/2000mAh/3.7V
Nominal voltage: 3.6V
Nominal capacity: 2000mAh
Charging voltage: 4.2V charging
Charging current: ≤ 2.5A
Discharge current: 2.8A
Instantaneous discharge current: 5.0A
Discharge cut-off voltage: 3.0V
Product internal resistance: ≤180mΩ
Battery weight: 50g
Product size: 14.95*44.15*50.15mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: 0 to 25℃
Battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Handheld terminal
