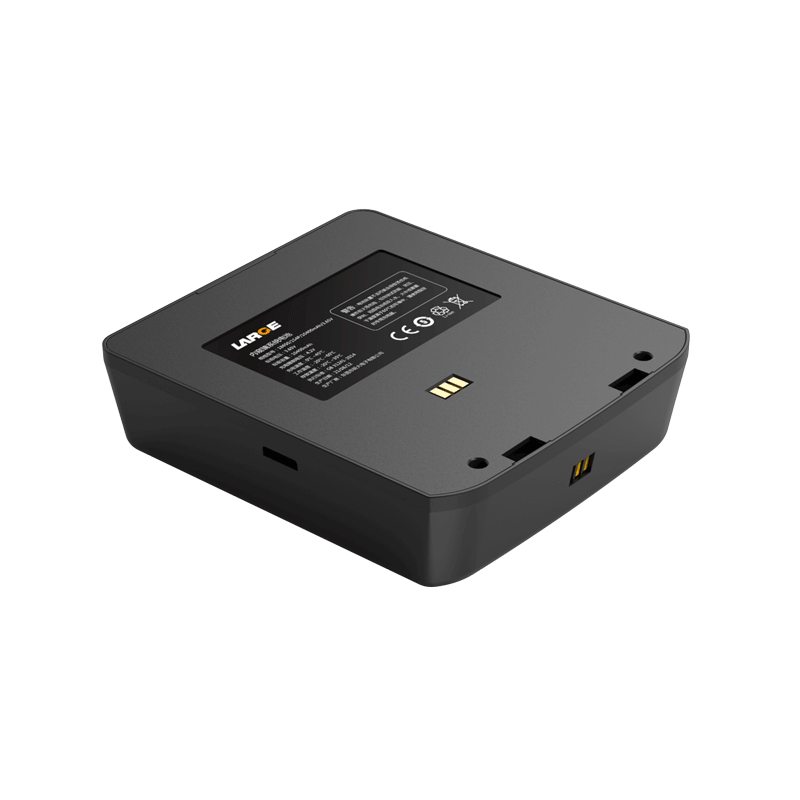

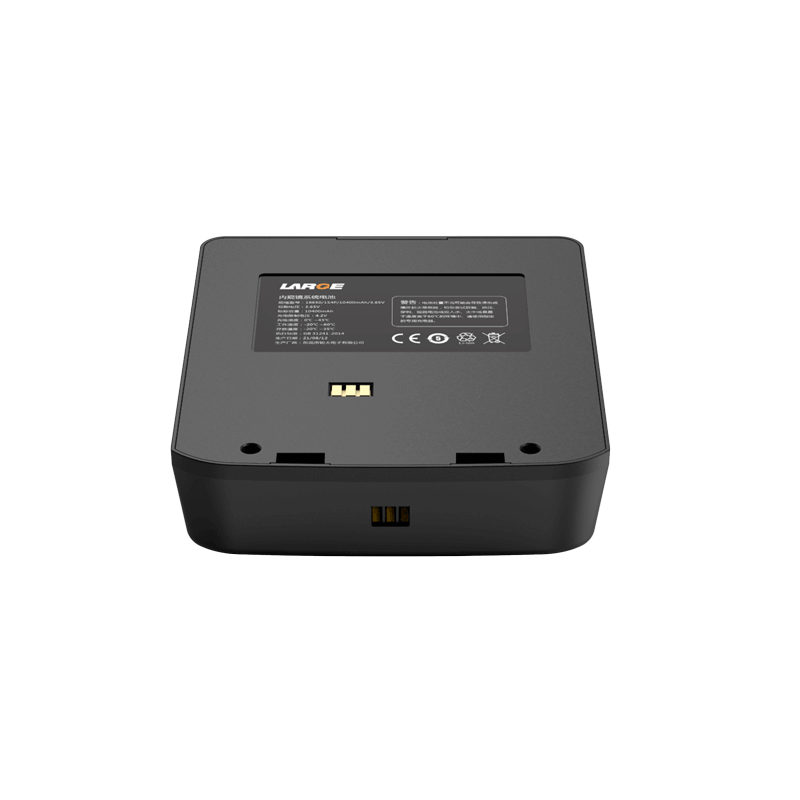

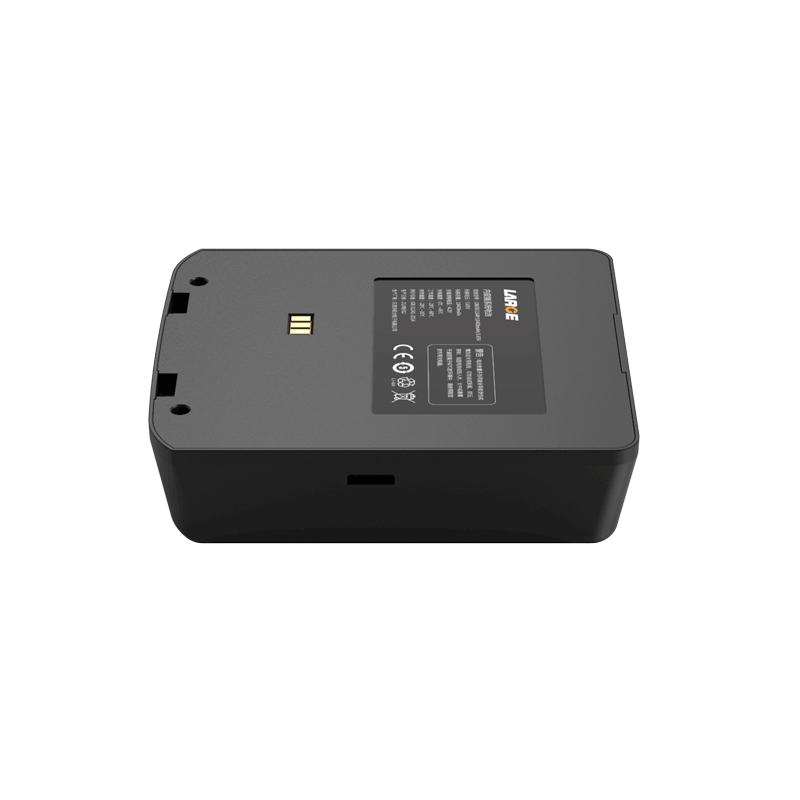

Custom Lithium ion Battery Pack
Product number: 01DQ0057-02
Cell model: 18650/2600mah /3.6V/26J
Battery specification: 18650/2S2P/5200mAh/7.2V
Product size: 85*74*21.5mm
Nominal voltage: 7.2V
Nominal capacity: 5200mAh
Finished product internal resistance: ≤220mΩ
Charging voltage: 8.4V
Charging current: ≤ 2.5a
Discharge current: ≤ 2.5a
Discharge cut-off voltage: 6.0V
Battery weight: 210G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: ABS+PC case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Endoscope equipment, medical equipment
Product features
1.ABS+PC shell increases battery reliability and firmness.
2.Hardware output: Gold-plated metal output mode is used to increase conductive reliability;
3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, nice precision monitoring, precise control, temperature protection and other functions to eliminate security risks to the greatest extent.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.The battery has long cycle life , in line with low carbon, energy saving, environmental protection values;
