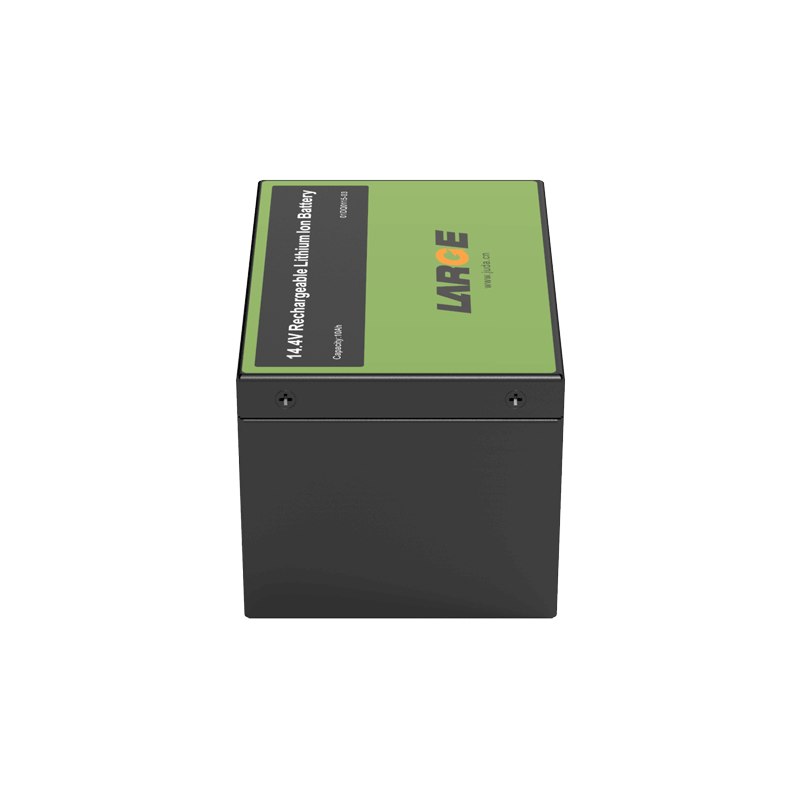

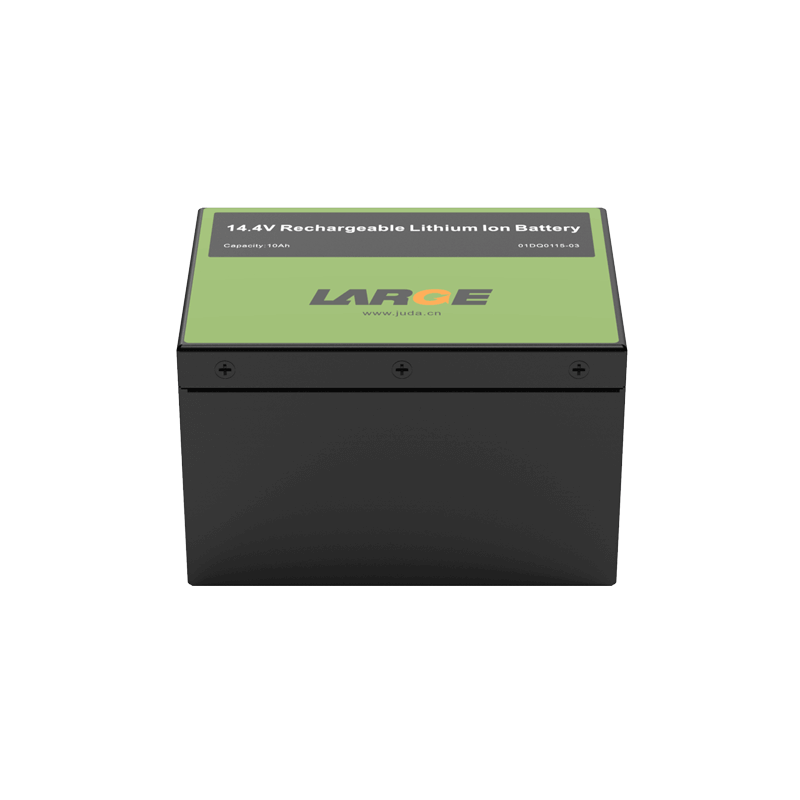

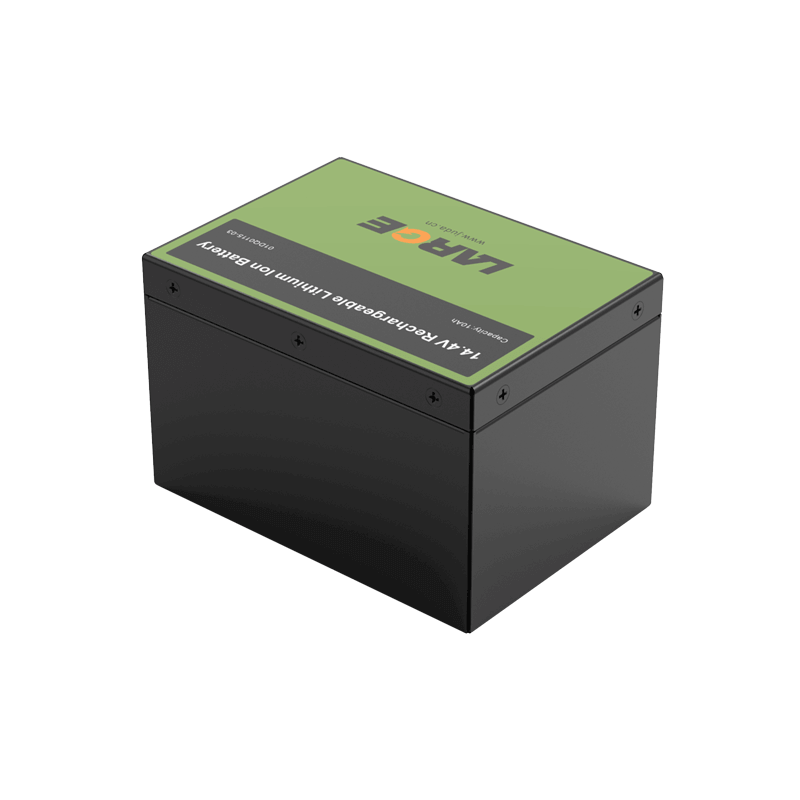

Custom Lithium ion Battery Pack
Product number: 01DQ0115-03
Cell model: 18650/2500mah /3.6V
Specification: 18650/4S4P/10Ahh/14.4V
Product size: 140*100*90mm
Nominal voltage: 14.4V
Nominal capacity: 10Ah
Product internal resistance: ≤200mΩ
Charging voltage: 16.8V
Charging current: ≤4.8A
Discharge current: ≤4.8A
Discharge cut-off voltage: 10V
Battery weight: 1200G
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: aluminum alloy case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Radiation testing equipment, portable testing equipment
Product features
1.Aluminum shell increases battery reliability and firmness.
2.Connector plug terminal:Adopt aviation plug output mode to increase electrical conductivity reliability.
3.Low temperature -40℃ discharge lithium battery
4.Battery protection management: Adopt dedicated lithium battery protection chipwith good stability, nice precision monitoring and precise control to eliminate security risks to the greatest extent.
5.The battery pack has good safety, nice low-temperature discharge performance and high low-temperature discharge rate, supporting -40℃ discharge rate and over 60% discharging power.
6.The battery pack has good safety, nice discharge performance and long cycle life.
7.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
