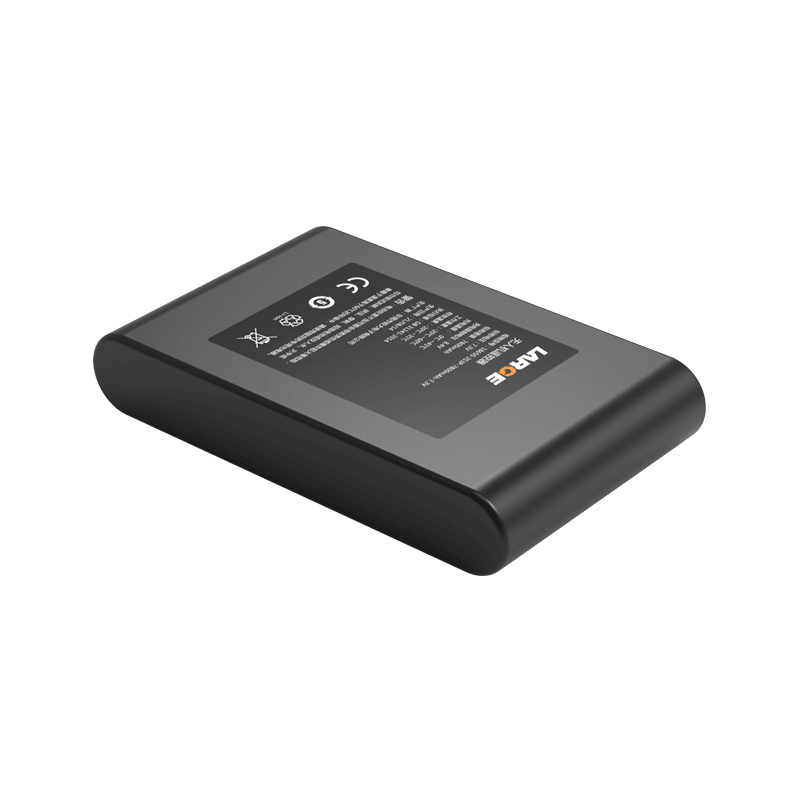

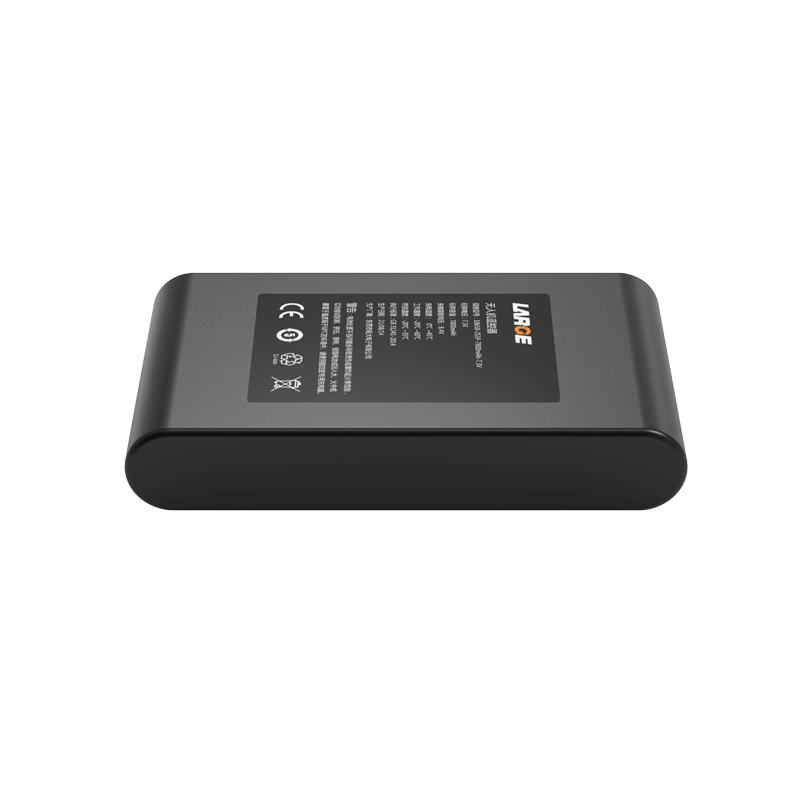

18650 7800mAh 7.3V Samsung Battery for UAV Controller

Customization | Free Battery Solution

Product Detail

Product number: 01DQ0121-01

Cell model: 18650-2600MAH-3.65V

Battery specification: 18650-2S3P-7800MAH-7.3V

Product size: 115*69.5*22mm

Nominal voltage: 7.3V

Nominal capacity: 7800mAh

Finished product internal resistance: ≤220mΩ

Charging voltage: 8.4V

Charging current: ≤3.75A

Discharge current: ≤3.75A

Discharge cut-off voltage: 6.0V

Battery weight: 310g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Portable remote control equipment, portable equipment field

Product features

1.Protective blue PVC heat shrinkable film package is simple, reliable and easy to be installed.

2.Connector plug terminal: Adopt MOLEX plug connector output mode to increase conductive reliability.

3.The battery protection management: adopt imported seiko protection chips with good stability, nice precision monitoring and precise control to eliminate potential safety hazards to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
