Product number: 01DQ0136-02

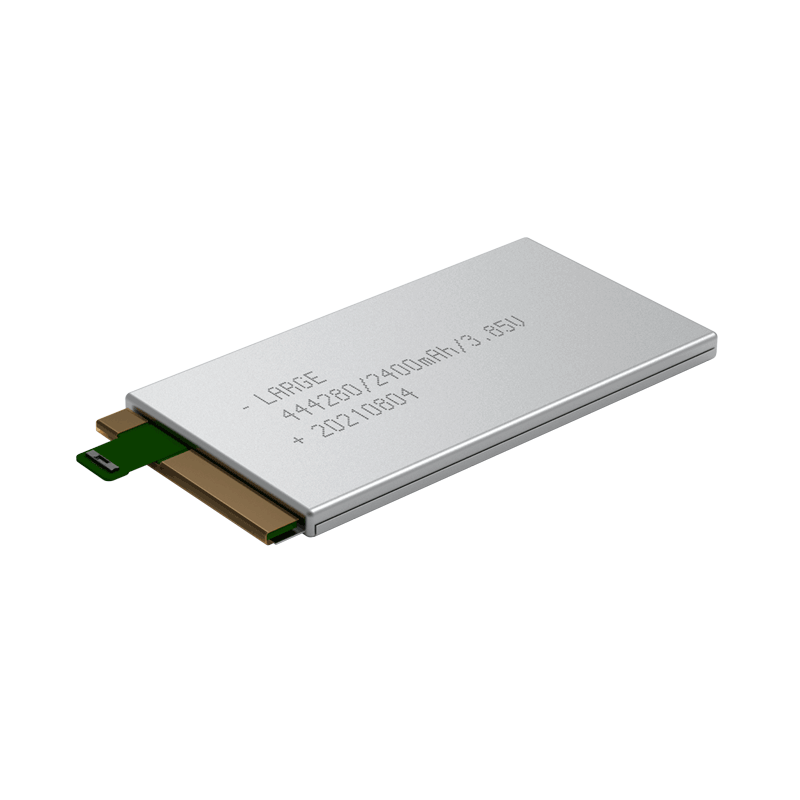

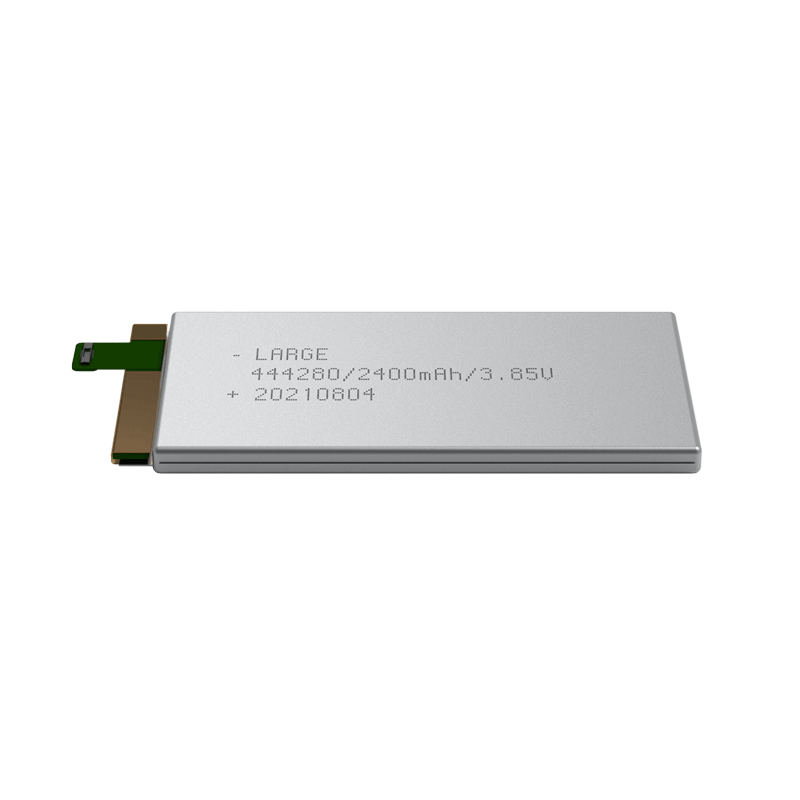

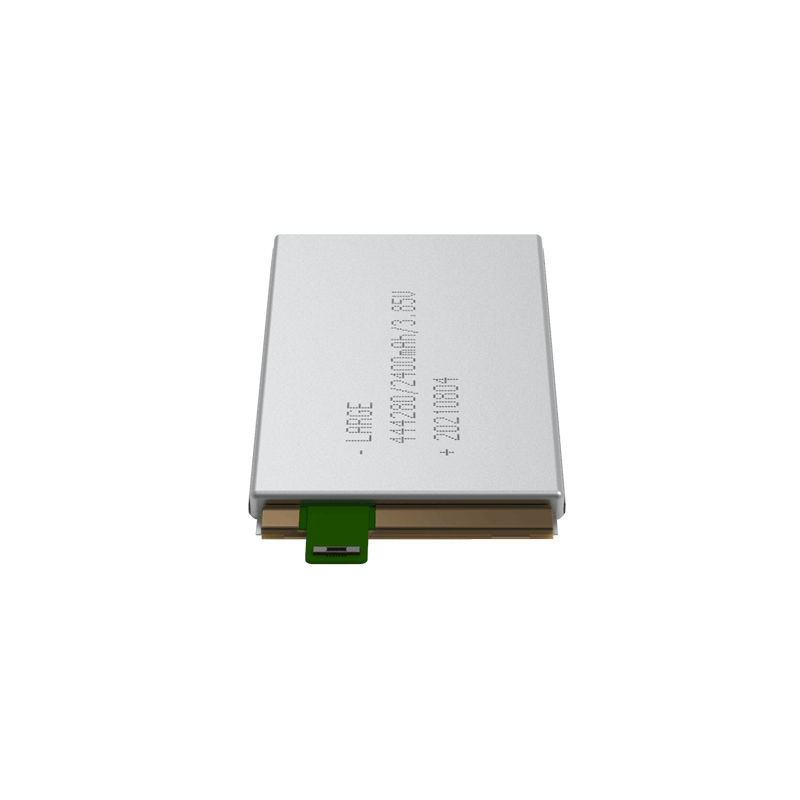

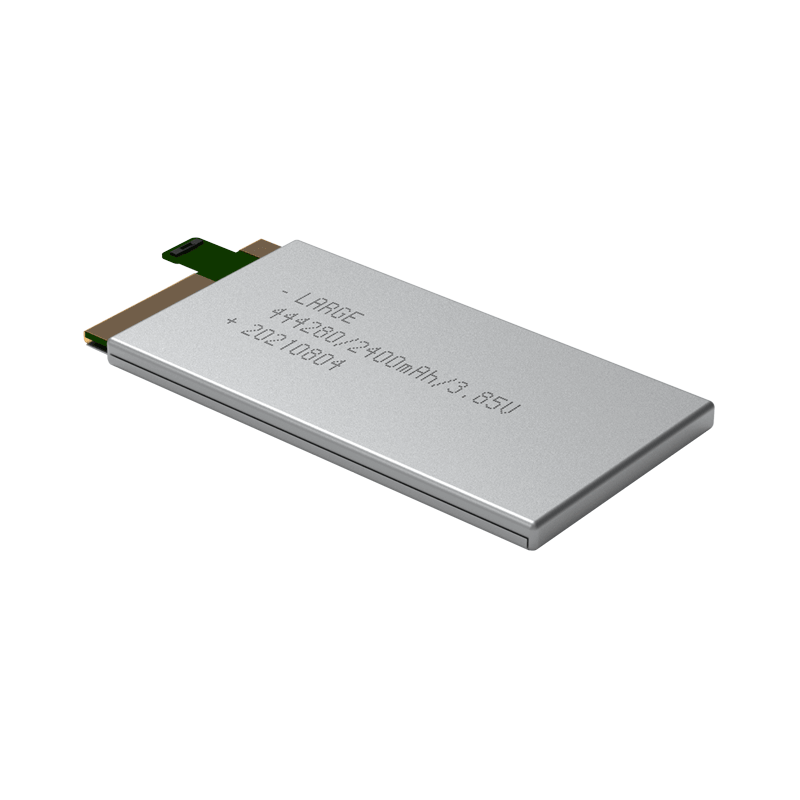

Cell model: 444280/2400mah /3.85V
Battery specification: 444280/1 s1p / 2400 mah / 3.85 V
Product size: 83*42*4.4mm
Nominal voltage: 3.85V
Nominal capacity: 2400mAh
Finished product internal resistance: ≤150mΩ
Charging voltage: 4.4V
Charging current: ≤1.6A
Discharge current: ≤ 2.4a
Discharge cut-off voltage: 3.0V
Battery weight: 40G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery packaging: simple packaging
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, etc.
Application: Portable remote control, handheld devices, portable devices
1.Simple package is reliable and easy to be installed.
2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;
3.Battery protection management: Adopt dedicated lithium battery protection chip with doog stability, nice precision monitoring, precise control,temperature protection and other functions to eliminate security risks to the greatest extent.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.It has a high energy density system and a high voltage system.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
