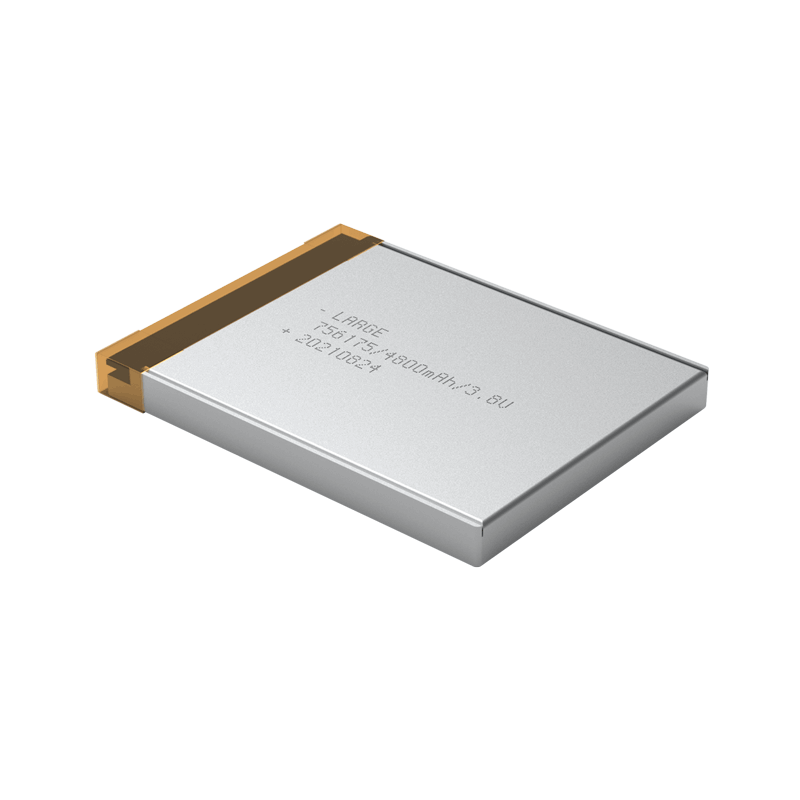

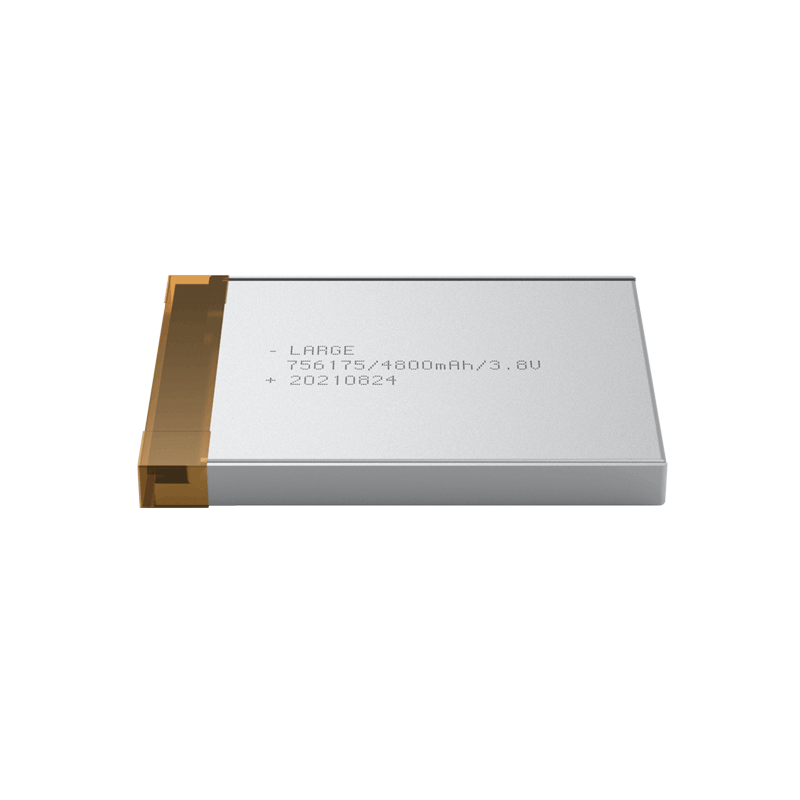

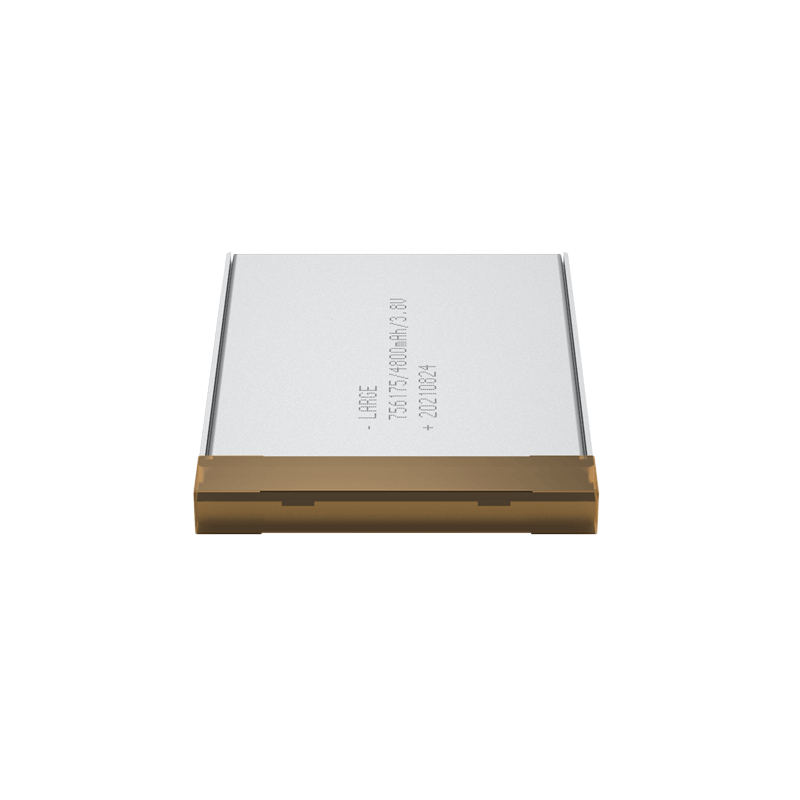

4800mAh 3.8V Lithium Polymer Battery for Handheld Terminal

Customization | Free Battery Solution

Product Detail

Product number: 01DQ0141-01

Cell model: 756175/4800mah /3.8V

Battery specification: 756175/1S1P/4800mAh/3.8V

Product size: 78*61.5*7.8mm (Max)

Nominal voltage: 7.4V

Nominal capacity: 4800mAh

Finished product internal resistance: ≤120mΩ

Charging voltage: 4.35V

Charging current: ≤ 2.4A

Discharge current: ≤4.8A

Discharge cut-off voltage: 3.0V

Battery weight: 80G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery packaging: simple packaging

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable handheld devices, handheld terminal devices


Product features

1.Simple package is reliable and easy to be installed.

2.Low temperature -40℃ discharge lithium battery

3.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;

4.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, nice precision monitoring and precise control to eliminate security risks to the greatest extent.

5.The battery pack has good safety, nice low-temperature discharge performance and high low-temperature ratio, supporting -40℃ discharge and discharging power of over 70%.

6.The battery pack has good safety, nice discharge performance and long cycle life.

7.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
