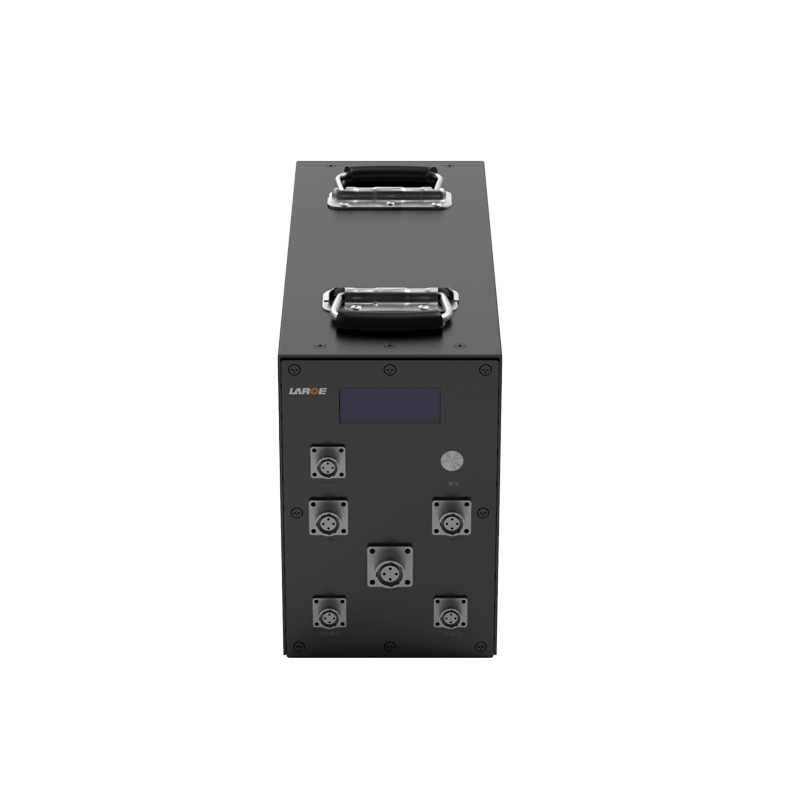

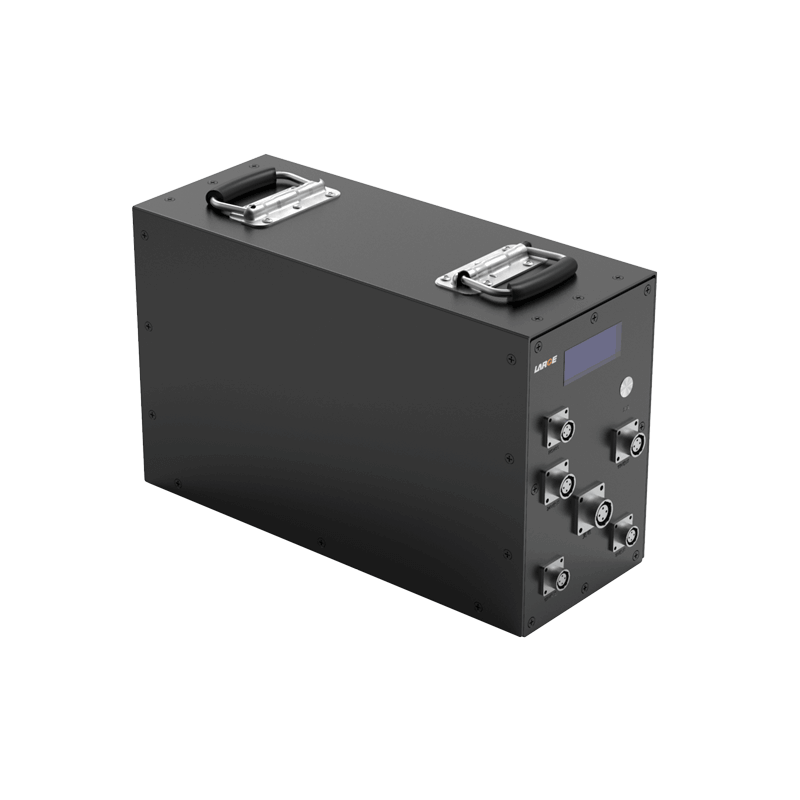

36650 25.2V 70Ah LiFePO4 Battery for Air Cleaner

Customization | Free Battery Solution

Product Detail

Product number: 05DQ0057-01

Cell model: 26650-3400MAH-3.2V

Specification: 26650-8S21P-70AH-25.6V

Nominal voltage: 25.6V

Nominal capacity: 70Ah

Charging voltage: 29.2V

Charging current: ≤20A

Discharge current: 13A

Discharge cut-off voltage: 20V

Internal resistance of finished product: ≤300mΩ

Battery weight: 16Kg

Product size: 400*262*160mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: aluminum alloy case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: air purification equipment, monitoring equipment, security equipment,etc.

Product Features

1.Aluminum alloy housing increases battery reliability, firmness, and is easy to be installed, carried.

2.Output terminal of connector: The output mode of aviation plug is adopted to increase the reliability of conduction.

3.Data communication management: Adopt 485 communication precise data transmission, CAN bus, precise temperature control, real-time battery status monitoring control to eliminate potential safety hazards to the greatest extent.

4.Using opto-isolator as BMS communication, the product supports 485 bus for customer optional communication and networking. The communication baud rate is 9600bps.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
