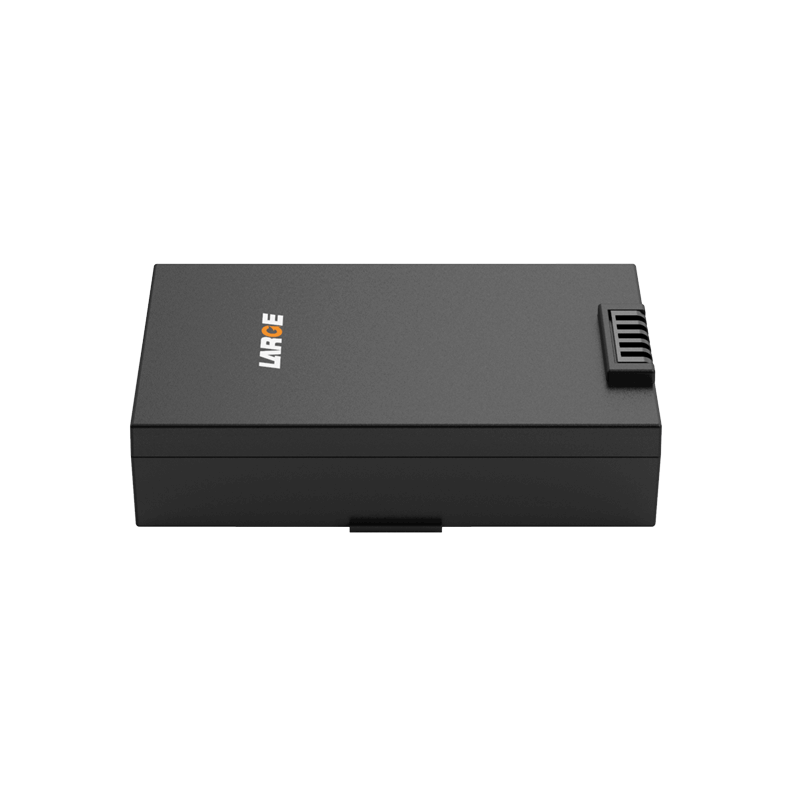

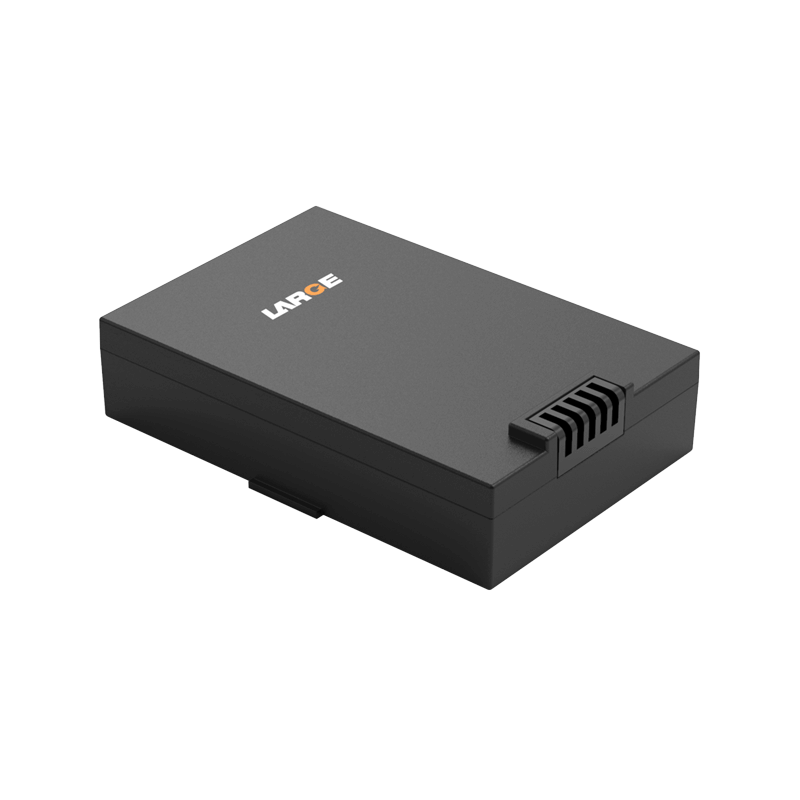

Custom Lithium ion Battery Pack
Product number: 08AQ0125-03
Cell model: 684155/2100mah /3.7V
Specification: 684155/2S1P/2100mAh/7.4V
Product size: 68*45*16mm
Nominal voltage: 7.4V
Nominal capacity: 2100mAh
Finished product internal resistance: ≤260mΩ
Charging voltage: 8.4V
Charging current: ≤1.0A
Discharge current: ≤3.0A
Discharge cut-off voltage: 6.0V
Battery weight: 70G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: ABS+PC case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, etc.
Application: Industrial equipment, industrial equipment
Product Features
1.ABS+PC shell increases battery reliability and firmness.
2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;
3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control,to eliminate security risks to the greatest extent.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
