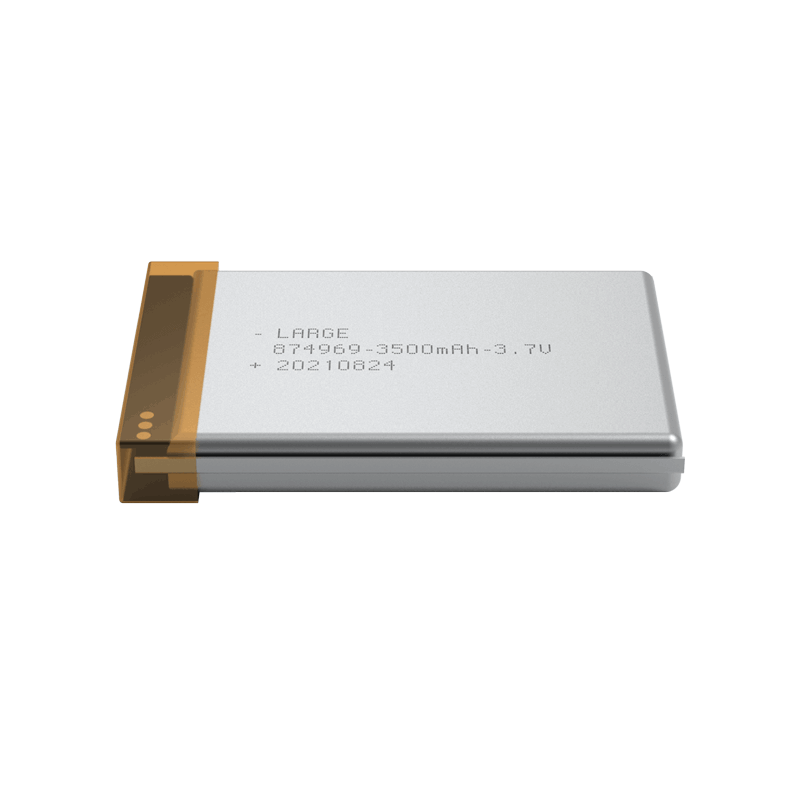

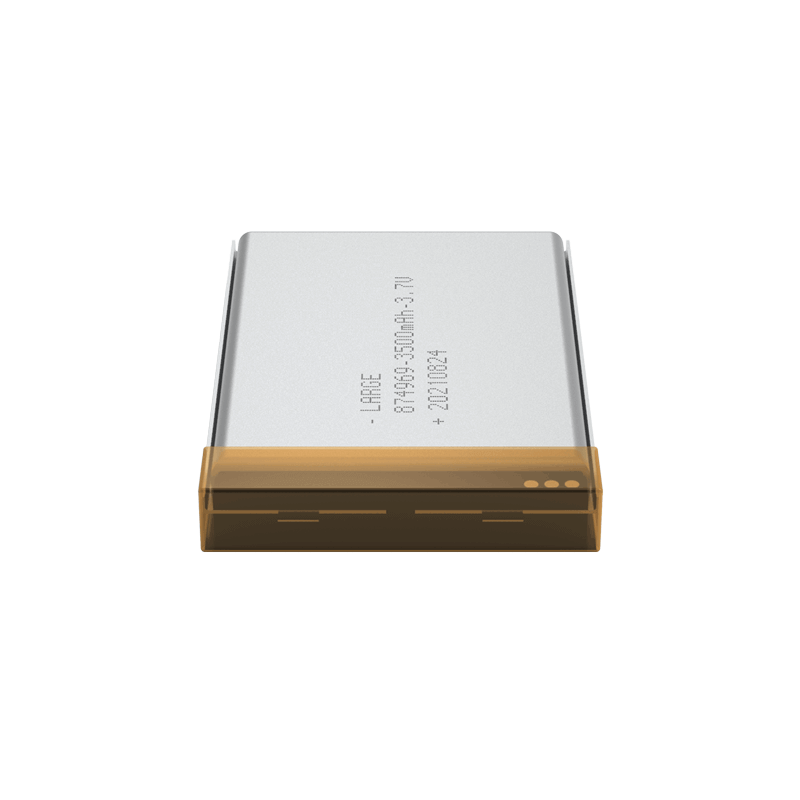

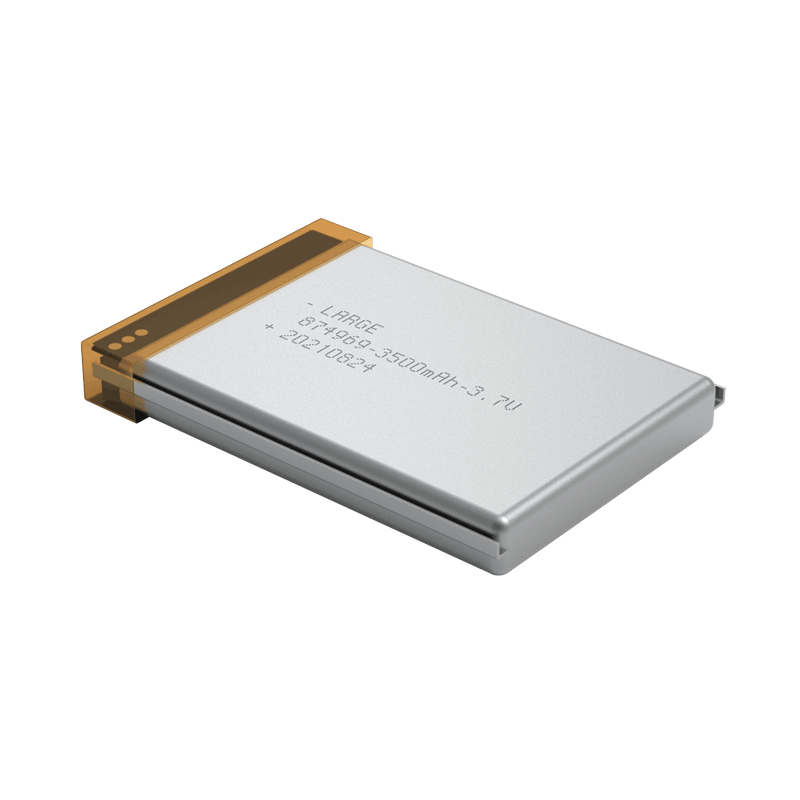

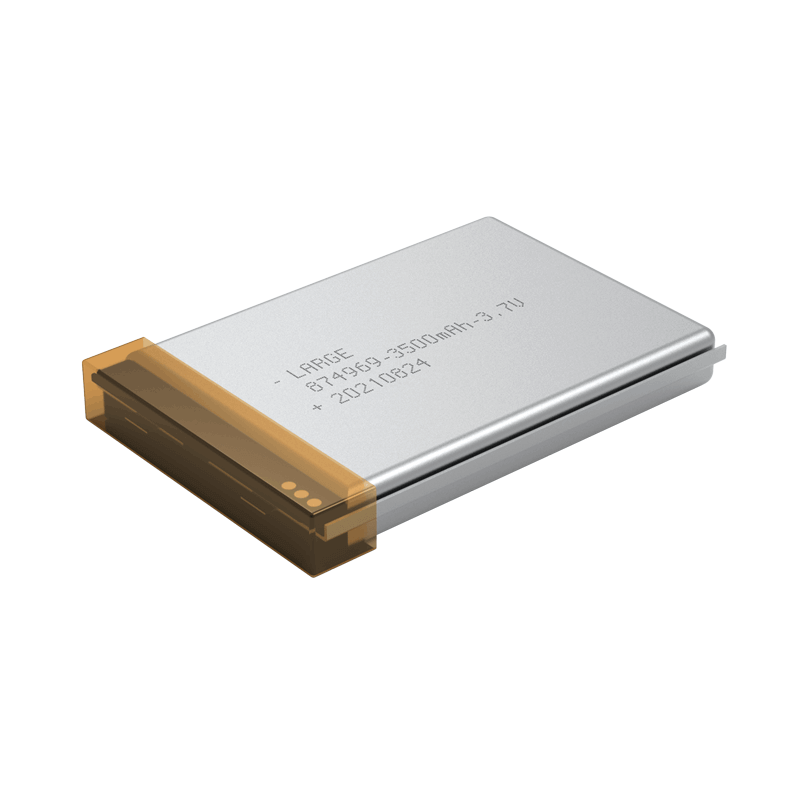

3500mAh 3.7V Lithium Polymer Battery for Bluetooth Speaker

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0001-03

Cell model: 874969-3500MAH-3.7V

Specification: 874969-1S1P-3500MAH-3.7V

Product size: 72*50*9.2mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 3500mAh

Product internal resistance: ≤200mΩ

Charging voltage: 4.2V

Charging current: ≤1.7A

Discharge current: ≤3.5A

Discharge cut-off voltage: 2.8V

Battery weight: 75G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery packaging: simple packaging

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable devices, Bluetooth speakers

Product Features

1.The package is simple, reliable and easy to be installed.

2.Connector output terminal: The MOLEX plug is used to output the connector to increase conductive reliability.

3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control, to eliminate security risks to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
