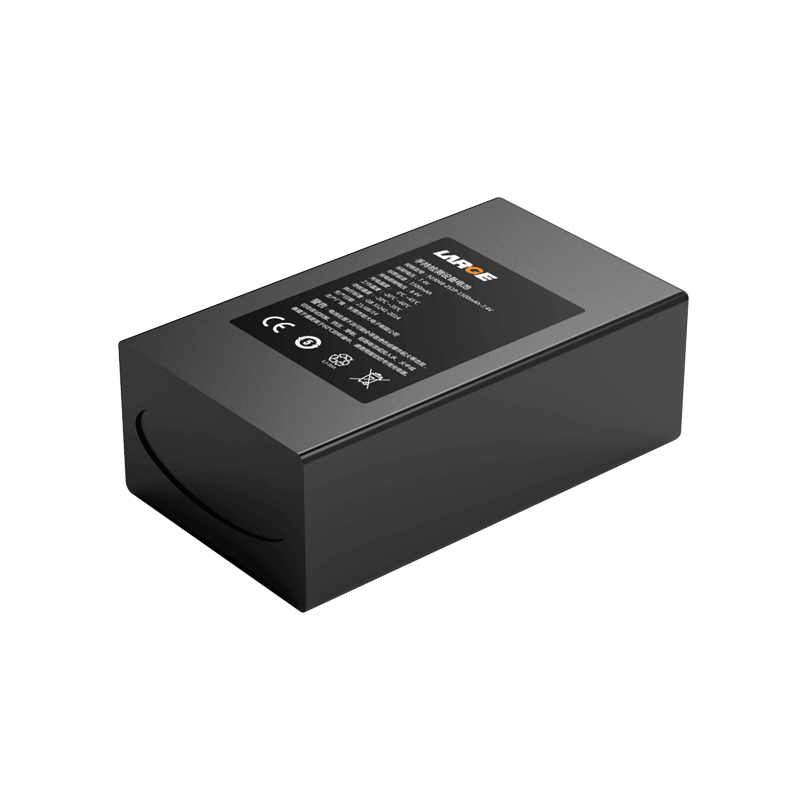

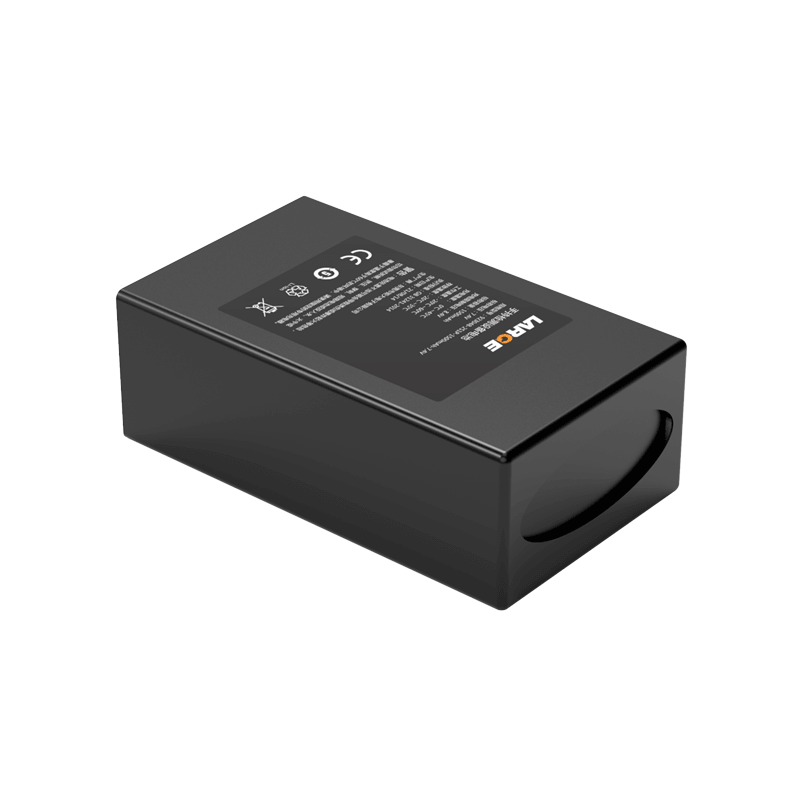

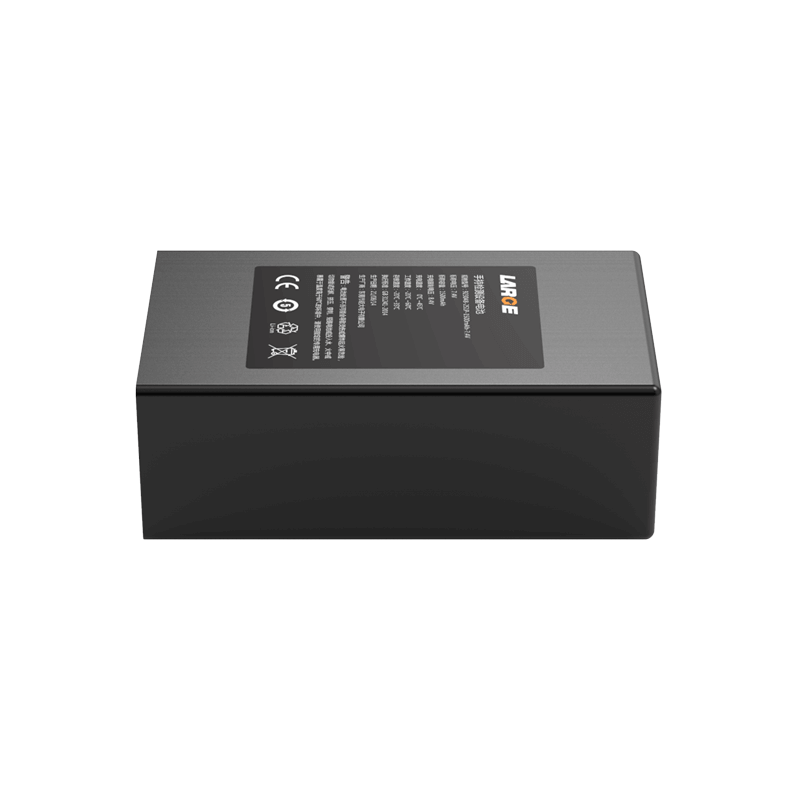

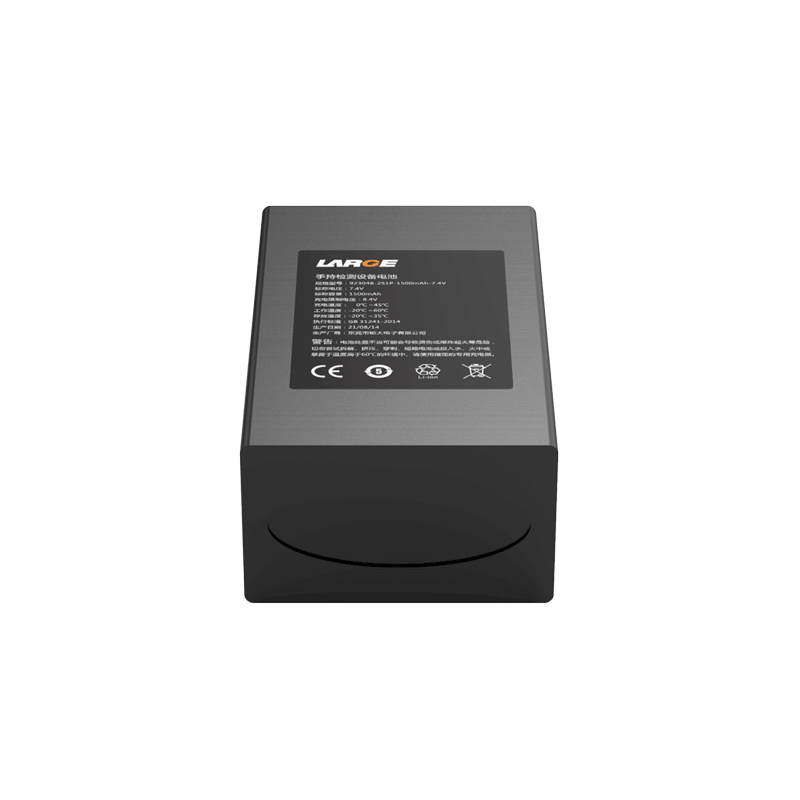

Custom Lithium ion Battery Pack
Product number: 08DQ0018-01
Cell model: 923048-1500MAH-3.7V
Specification: 923048-2S1P-1500MAH-7.4V
Product size: 52*30.5*18.5mm (Max)
Nominal voltage: 7.4V
Nominal capacity: 1500mAh
Charging voltage: 8.4V
Charging current: ≤1.5A
Discharge current: ≤1.5A
Discharge cut-off voltage: 6.0V
Internal resistance: ≤250mΩ
Battery weight: 55G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery packaging: simple packaging
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: Handheld devices, testing equipment, portable devices
Product Features
1.The package is simple, reliable and easy to be installed.
2.Connector output terminal: The JST plug is used to increase the reliability of electrical conduction.
2.Battery protection management: Adopt imported seiko protection chip with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.
3.The battery pack has good safety, nice discharge performance and long cycle life.
4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
